Automatic wire and cable selector

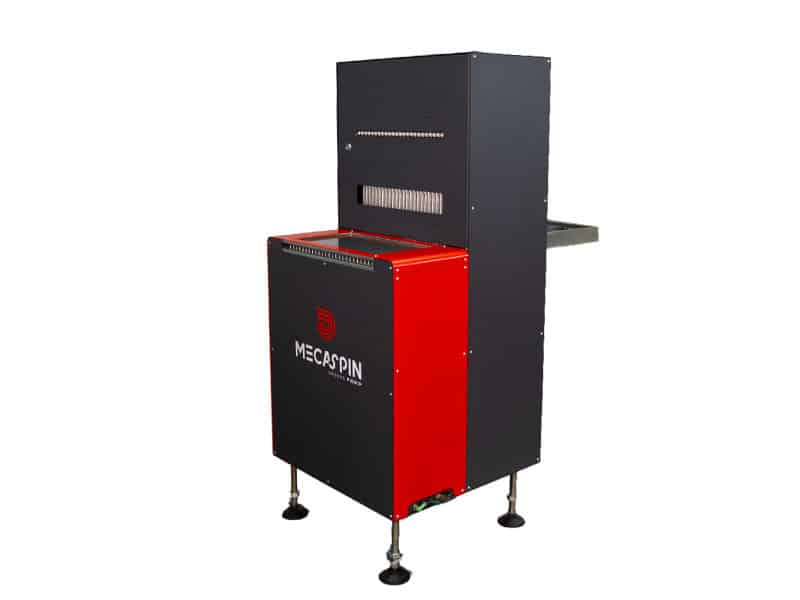

WireFlow 24

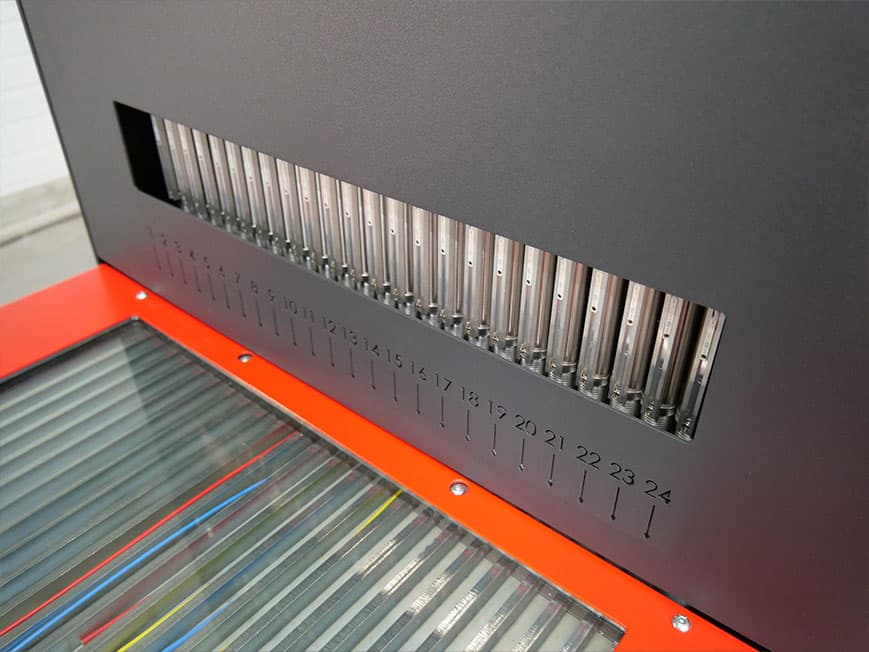

WireFlow 24 automatically selects the electrical wires and cables to be inserted by the pre-wiring machine. The unit is compatible with wire dispensers and “box” systems. It provides reliable, fast and error-free automatic selection of electrical wires from 24 different wire types.

Are you looking for similar equipment?

Contact us

Technical specifications

The WireFlow 24 is an automated solution designed for the automatic selection and feeding of wires and cables to be inserted into the sheath pre-wiring machine. This unit guarantees reliable, fast and error-free selection of electrical wires from up to 24 different wire types while propelling the selected cable directly into the pre-wiring machine. With controls accessible from the machine interface, it provides a flexible configuration compatible with wire dispensers and electrical boxes. The unit can be connected to all pre-wiring machines, with the option of connecting up to 3 wire sorters per pre-wiring machine for a maximum capacity of 72 wires.

Technical information

Number of ways	24
Permitted wire and cable cross-sections	1.5 mm² to 6 mm²
Dimensions (L × D × H)	700 × 700 × 1,680 mm
Propulsion	Propulsion of the selected cable into the sheath pre-wiring machine (MS04)
Control	From the machine interface
System compatibility	Compatible with wire dispensers and electrical boxes and connectable to all pre-wiring machines
Scalability / Expandability	Up to 3 wire sorters can be connected per pre-wiring machine (48 wires in total)
Displayed strengths	Automation, Throughput, Modularity (reliable, fast and error-free selection)
