Measure & Cut

Automatic cable measuring and cutting machine

LN 03

LN03 is an automatic machine for measuring, cutting and coiling cables or tubes from 0.5 to 35 mm². Its 24- or 40-way selector automatically chooses the required cable and allows up to 200 cuts to be completed without intervention. Controlled from a touchscreen or by production files, it reduces errors, automates stock management and ensures continuous production with a short learning curve.

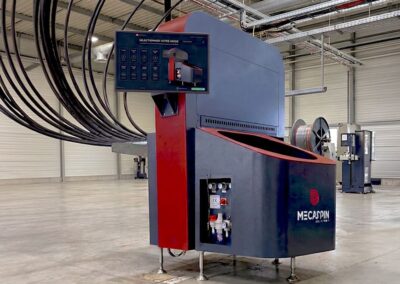

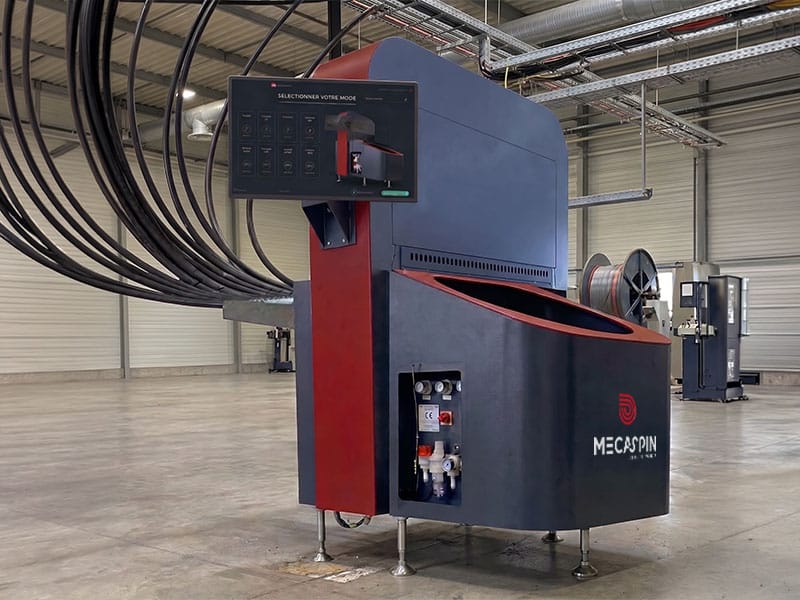

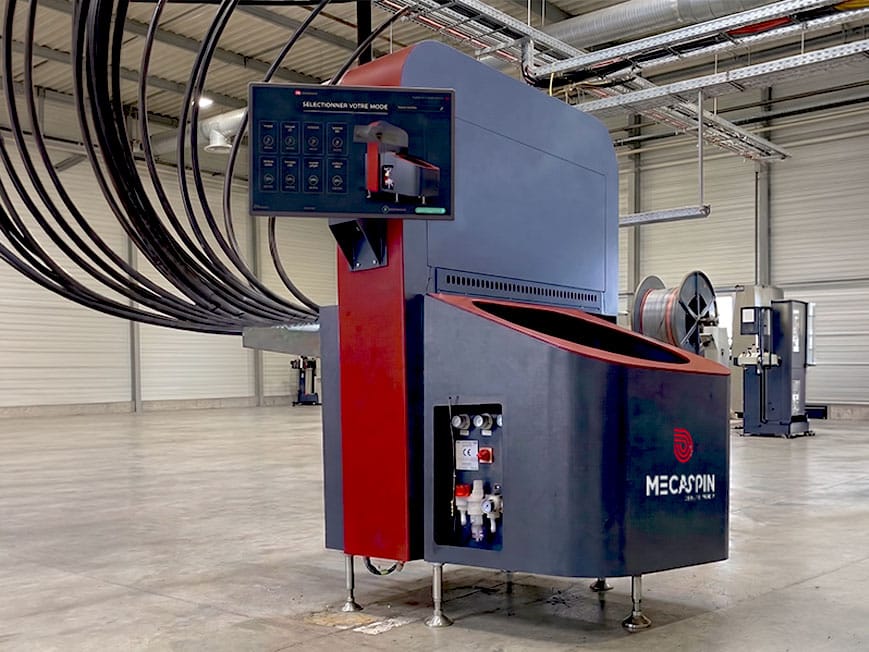

LN03 automatic cutting and coiling machine with tube Mecaspin

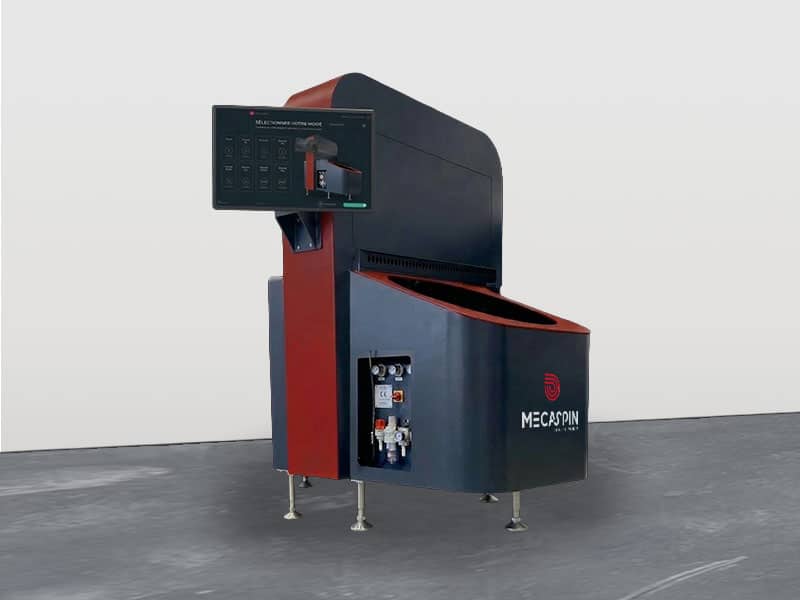

LN03 automatic cutting and coiling machine Mecaspin

Are you looking for similar equipment?

Contact us

Technical specifications

LN03 is an automatic-selection cable cutting and coiling machine dedicated to preparing lengths in the workshop. It measures, cuts and coils cables or tubes with cross-sections from 0.5 mm² to 35 mm².

The cables are preloaded into a selector, allowing the machine to identify and automatically select the correct cable for each cut. It can therefore complete up to 200 cuts without human intervention, eliminating errors and guaranteeing continuous production.

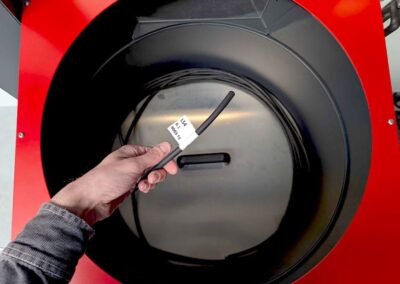

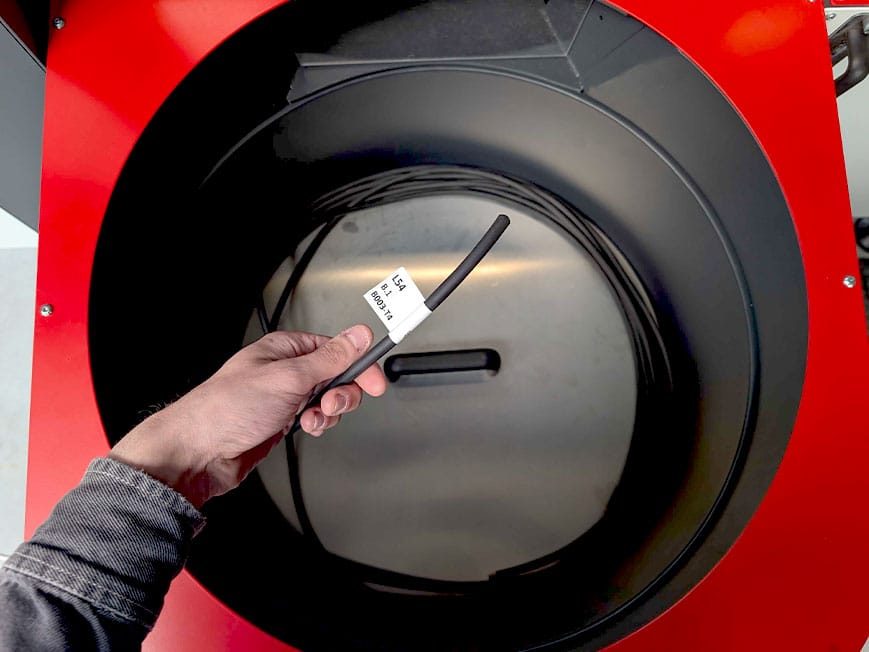

Compact and robust, with a welded steel structure, LN03 is controlled from a 22-inch touchscreen, in manual or file-based automatic mode. Cables are identified by labels or inkjet marking.

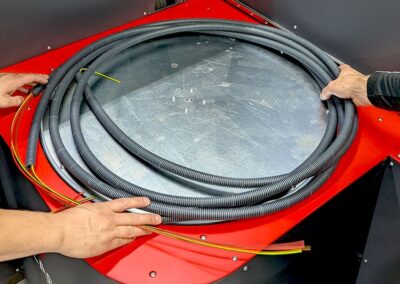

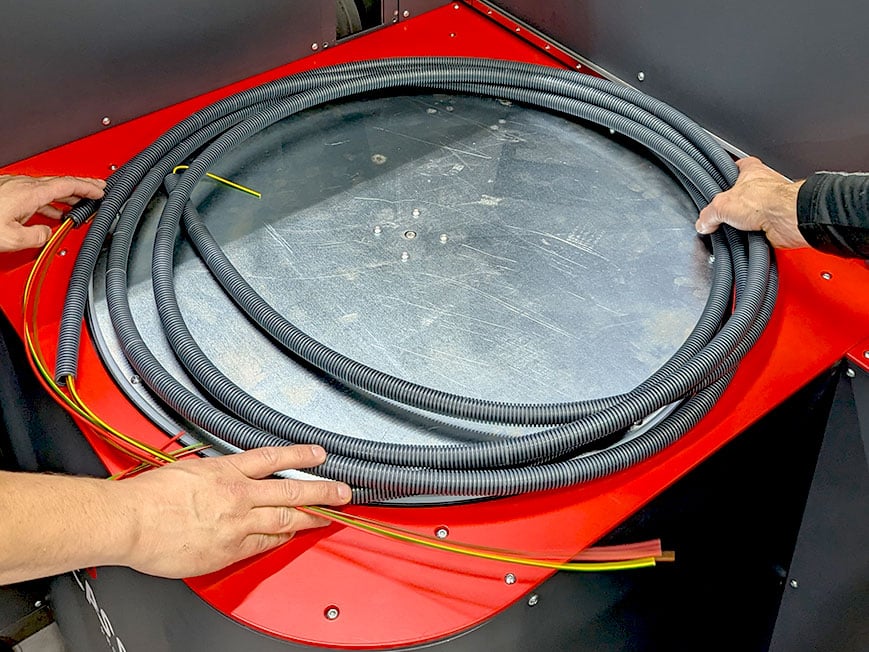

Equipped with a removable bowl bottom, it improves operator comfort while providing a high level of productivity, reliability and automation.

Range comparison

Specifications	LN03	LN03+
Cable selection	Automatic	Automatic
Dimensions (L × D × H)	130 × 75 × 170 cm	150 × 120 × 170 cm
Coiling-bowl diameter	55 cm	70 cm
Number of accepted cables	24 ways	40 ways
Compatible cross-sections	0.5 mm² to 35 mm²	0.5 mm² to 35 mm²
Cable marking	Label	Label
Measurement accuracy	99.8%	99.8%
Cutting capacity	Up to 2 × 35 mm²	Up to 2 × 35 mm²
Measuring speed	2.6 m/s	2.6 m/s
Maximum cutting length	Up to 100 m	Up to 250 m
Cable packaging	Coil	Coil
Electrical supply	230 V single-phase / 50 Hz	230 V single-phase / 50 Hz
Pneumatic supply	5 bar	5 bar

Key benefits

01. Versatility

Cuts cable of all cross-sections from 0.5 to 35 mm². Cuts flexible tubes of all cross-sections.

02. Up to 40 cables in the magazine

Automatically selects the cable to be measured and cut from among those entered in the selector. A magazine of 24 or 40 cables is available. The required cuts are completed one after another without intervention.

03. Simplicity

Extremely quick to learn; no training is required. Automatically reads files to produce predefined batches of cuts. Integrated automatic stock-management module.

Operating procedure / Operation

1	Load a production file or list the cuts to be made
2	Start the cycle
4	The machine selects, measures, cuts and then coils the cable
5	Apply the printed identification label to the coil
6	Store the prepared cable in its assigned location
7	A new cycle starts automatically
