Measure & Cut

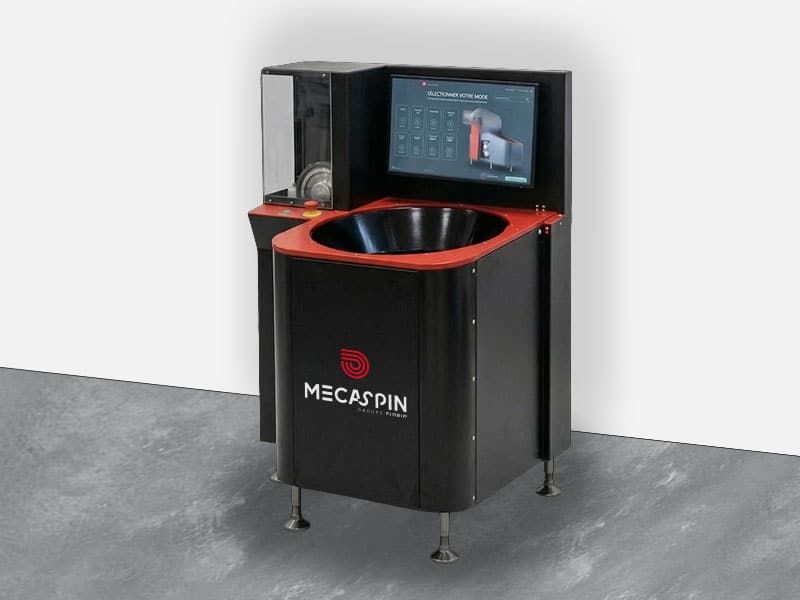

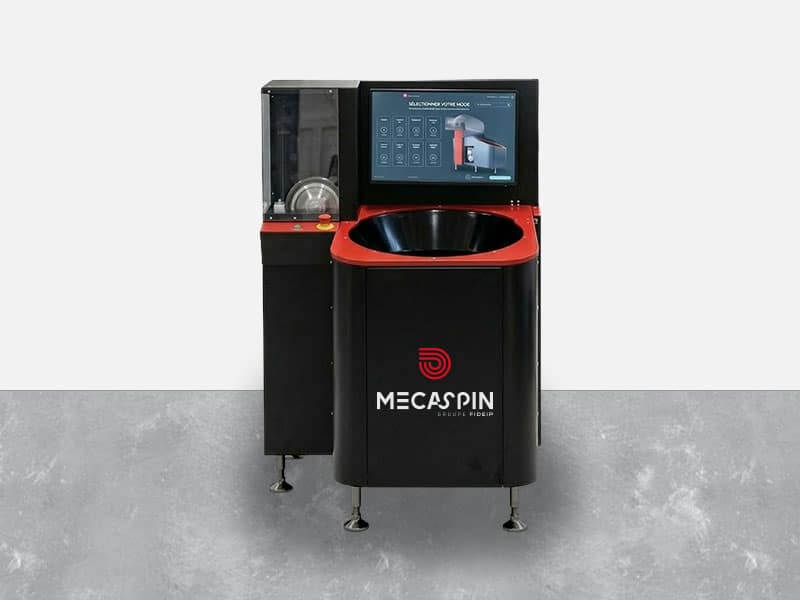

Semi-automatic cable measuring and cutting machine

LN 02

LN02 is a semi-automatic machine dedicated to measuring, cutting and coiling cables or tubes from 0.5 to 35 mm². Controlled from its touchscreen or by production files, it reaches a measuring speed of 2.6 m/s and processes lengths up to 100 m, or 250 m with LN02+. Label or inkjet marking makes it easier to identify and standardise each coil.

Are you looking for similar equipment?

Contact us

Technical specifications

LN02 is a cable cutting and coiling machine dedicated to preparing lengths in the workshop. It automatically measures, cuts and coils cables or tubes with cross-sections from 0.5 mm² to 35 mm².

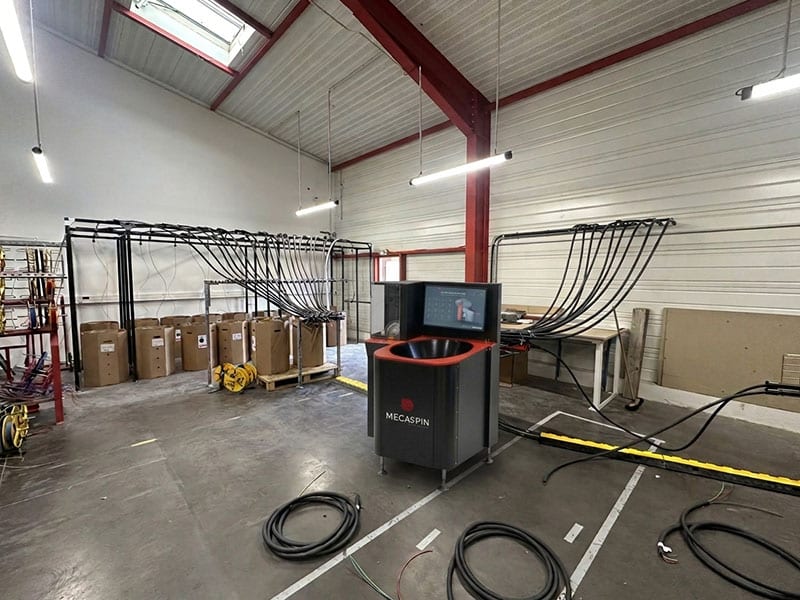

Compact and robust, with a welded steel construction, it integrates easily into a production environment.

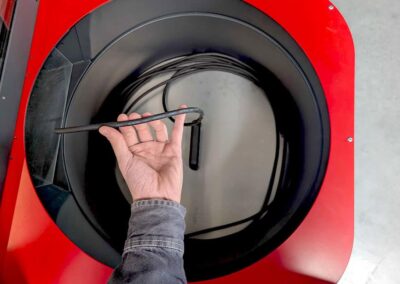

Using its 22-inch touchscreen, production can be controlled manually or by reading files prepared in advance by the design office. Information relating to the length, project or job can be identified on the cable using a label or inkjet marking.

The system provides cable professionals with precision, throughput, comfort and standardisation.

Range comparison

Specifications	LN02	LN02+
Dimensions (L × D × H) (cm)	90 × 85 × 170	105 × 100 × 170
Coiling-bowl diameter (cm)	55	70
Compatible cross-sections	0.5 mm² to 35 mm²	0.5 mm² to 35 mm²
Cable marking	Label or inkjet	Label or inkjet
Cable orientation	Right- or left-hand orientation	Right- or left-hand orientation
Measurement accuracy	99.8%	99.8%
Cutting capacity	Up to 2 × 35 mm²	Up to 2 × 35 mm²
Measuring speed	2.6 m/s	2.6 m/s
Maximum cutting length	Up to 100 m	Up to 250 m
Cable packaging	Coil	Coil
Electrical supply	230 V single-phase / 50 Hz	230 V single-phase / 50 Hz
Pneumatic supply	5 bar	5 bar

Key benefits

01. Versatility

Cuts cable of all cross-sections from 0.5 to 35 mm². Cuts flexible tubes of all cross-sections.

02. Ergonomics

Automatic measuring, cutting and coiling. LN02 can be equipped with a label printer or a cable inkjet printing module. The bowl can hold up to 100 cuts.

03. Simplicity

Extremely quick to learn; no training is required. Automatically reads files to produce predefined batches of cuts. Integrated automatic stock-management module.

Operating procedure / Operation

1	Load a production file or list the cuts to be made
2	Place the cable in the measuring system
3	Start the cycle by pressing the green button

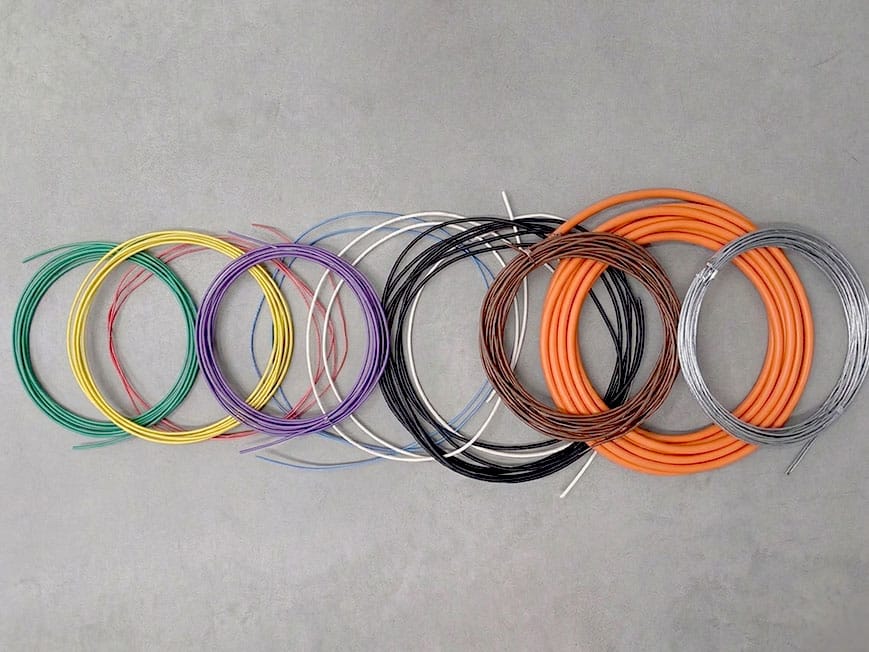

4	The machine measures, cuts and then coils the cable
5	Apply the printed identification label to the coil
6	Store the prepared cable in its assigned location
7	Continue production
