Orbital wrapping machine for applying plastic film around toroidal coils

WRAPP 01

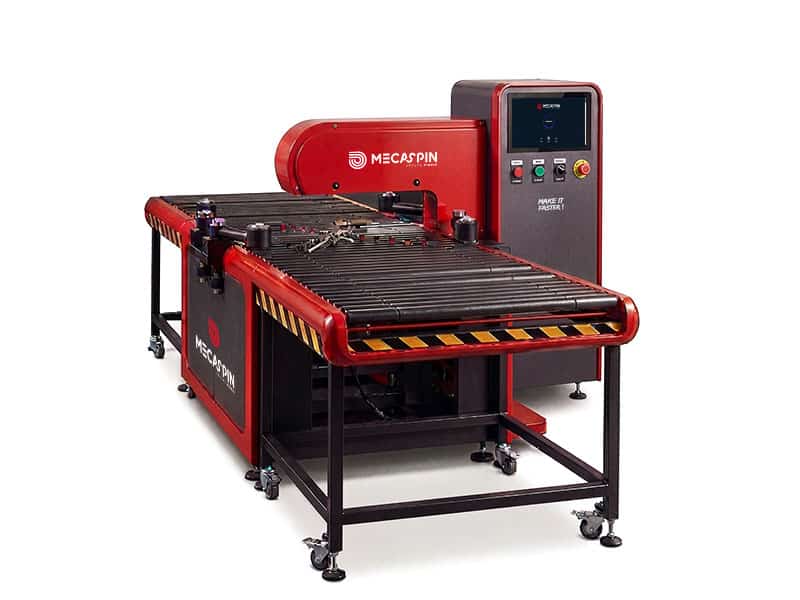

WRAPP01 is an automatic orbital wrapping machine designed for the peripheral wrapping of toroidal coils. By combining rotation of the coil on motorised rollers with the movement of a ring guiding film or paper, it provides complete, uniform coverage. Fully configurable (speed, tension, overlap) and adaptable to various formats, this easy-to-use machine makes packaging safer while reducing strenuous work for operators.

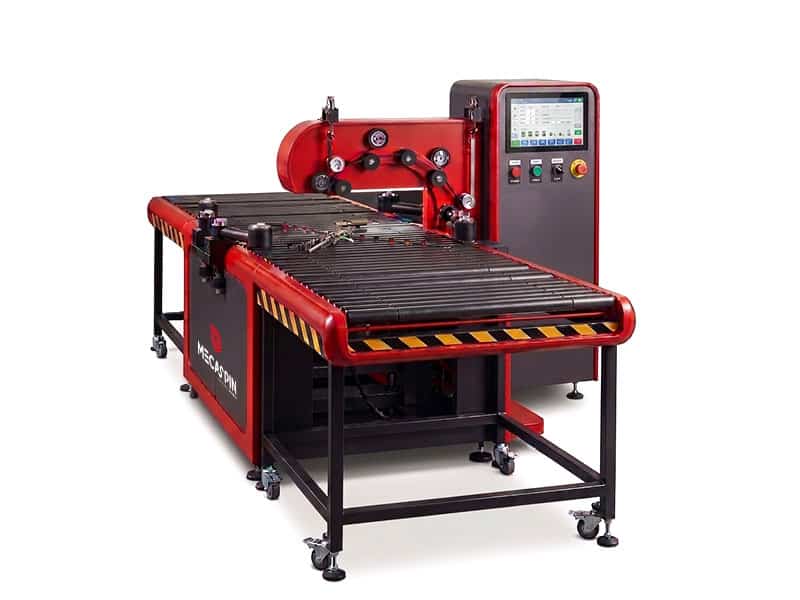

orbital wrapping machine for plastic film around toroidal coils Mecaspin

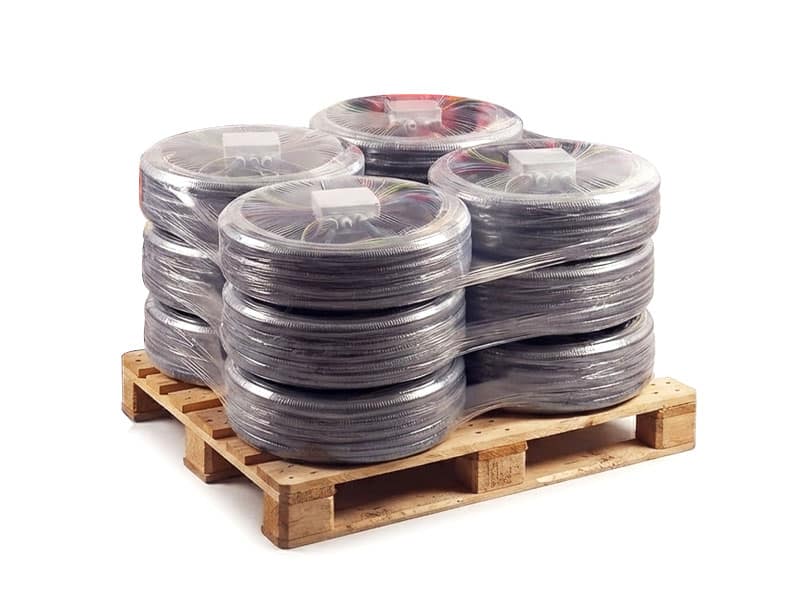

pallet of wrapped electrical octopus wiring | Mecaspin

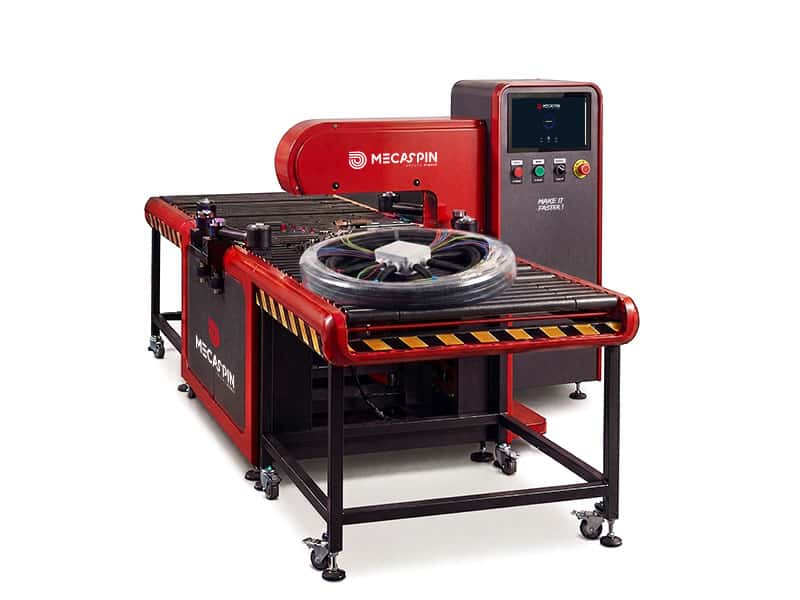

orbital wrapping machine with electrical octopus wiring Mecaspin

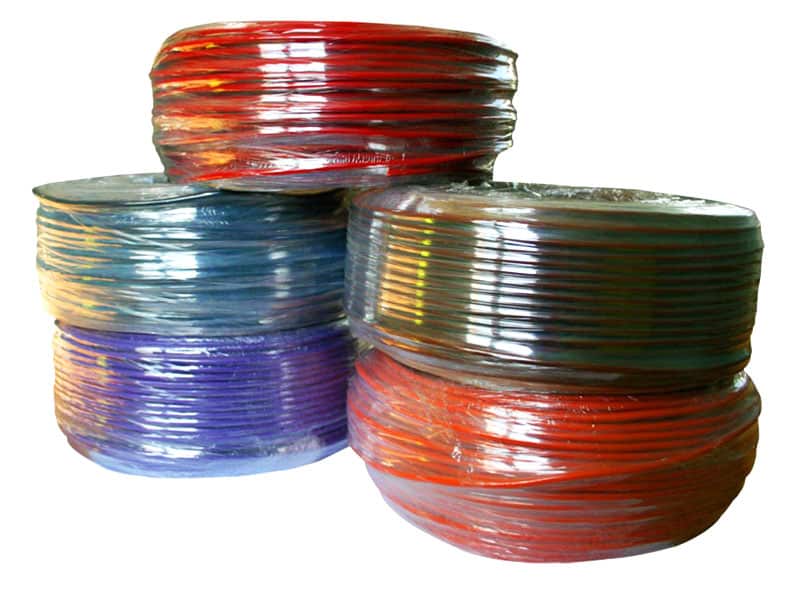

coil wrapped by wrapping machine Mecaspin

Are you looking for similar equipment?

Contact us

Technical specifications

The WRAPP01 automatically wraps the perimeter of a coil using a protective consumable.

The coil is rotated on motorised rollers while a ring passes the consumable through its inner diameter. The combination of these two movements gradually covers the entire circumference of the coil.

The speed, tension and overlap settings allow the cycle to be adapted to the coil format and the desired level of coverage.

Technical details

Specification	WRAPP01
Coil width	100 to 300 mm
Outer diameter	500 to 1,200 mm
Inner diameter	300 to 900 mm
Roller speed	2 to 4 m/min
Rotation speed	0 to 90 rpm
Power	Approx. 3.8 kW
Power supply	380 V / 50 Hz / three-phase
Control	PLC + HMI
Wrapping materials	Stretch film / paper
Consumable inner Ø	50 mm
Consumable outer Ø	150 to 250 mm
Consumable width	120 mm
Coil support	Adjustable rollers with PU coating

Key benefits

01. Automatic wrapping

The wrapping cycle is automated by a controlled system. Simple and quick to learn, wrapping is performed while reducing muscular fatigue for technicians.

02. Configurable wrapping

Film tension and overlap can be adjusted to obtain uniform wrapping tailored to your requirements.

03. Adaptation to different formats

The support and protective rollers are adjustable to accept different coil dimensions. The machine accepts stretch film or paper in particular.

Operating procedure / Operation

1 - Loading the coil	Position the coil on the machine rollers and adjust the rollers
2 - Installing the consumable	Install the roll of film or paper on the dispensing system
3 - Setting the cycle	Configure the cycle from the interface
4 - Starting the wrapping process	The rotating ring passes the consumable inside and outside the coil
5 - Covering the coil	The combined rotations distribute the consumable over the entire circumference
6 - End of cycle	The coil is wrapped and can be removed from the machine
