Sheath banding machine
FCL 01

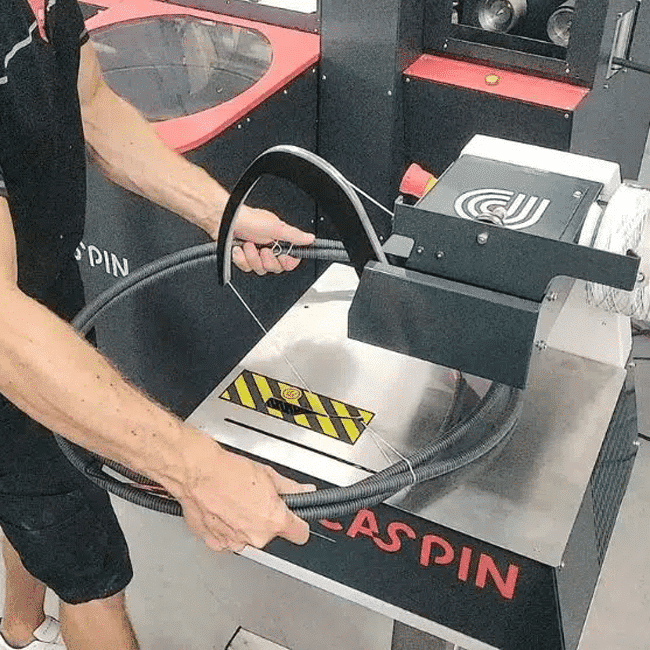

The main purpose of the sheath banding machine is to tie a sheath to hold it in position before it is fitted to a junction box.
The banding machine is a semi-automatic Mecaspin unit used to tie together two components that need to be held in place. It can be used to tie spools, skeins or bundles of wires, cables and tubes. The banding machine is very easy to use. Operators can be trained in a few minutes. After positioning the material to be tied on the table surface, the operator presses the pedal to start a cycle.
Are you looking for similar equipment?
Technical specifications

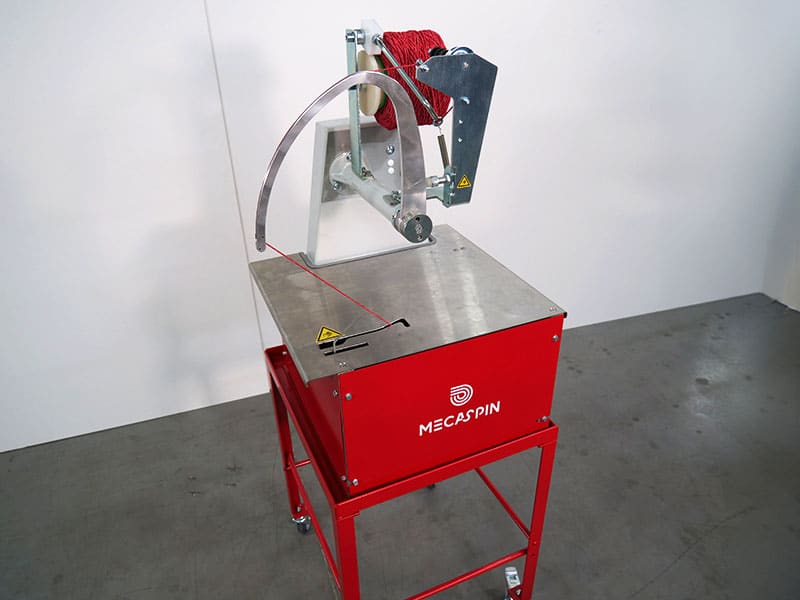

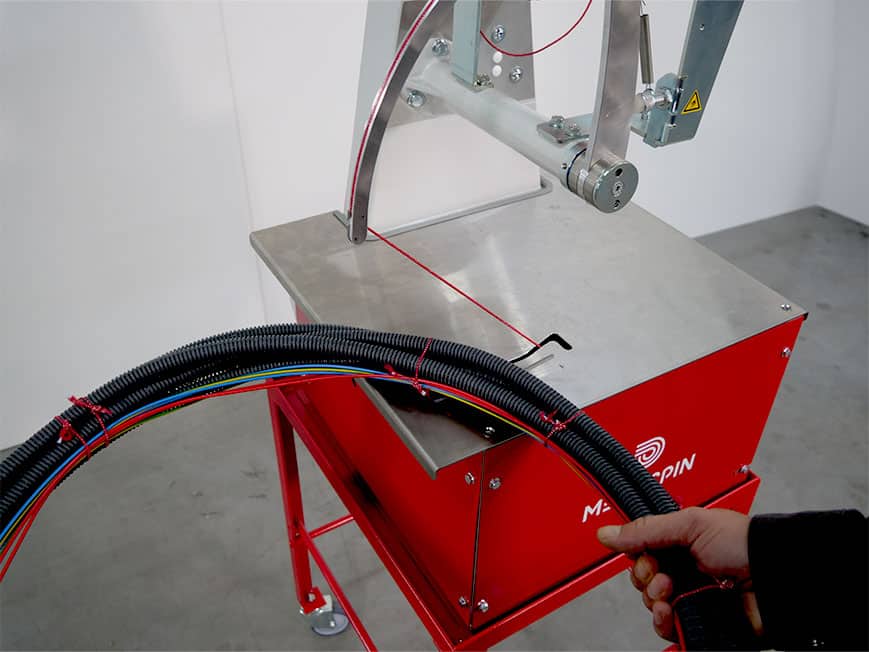

The Mecaspin sheath banding machine is a semi-automatic unit designed to hold a sheath in position before it is fitted to a junction box. It can also be used to tie spools, skeins or bundles of wires, cables and tubes.

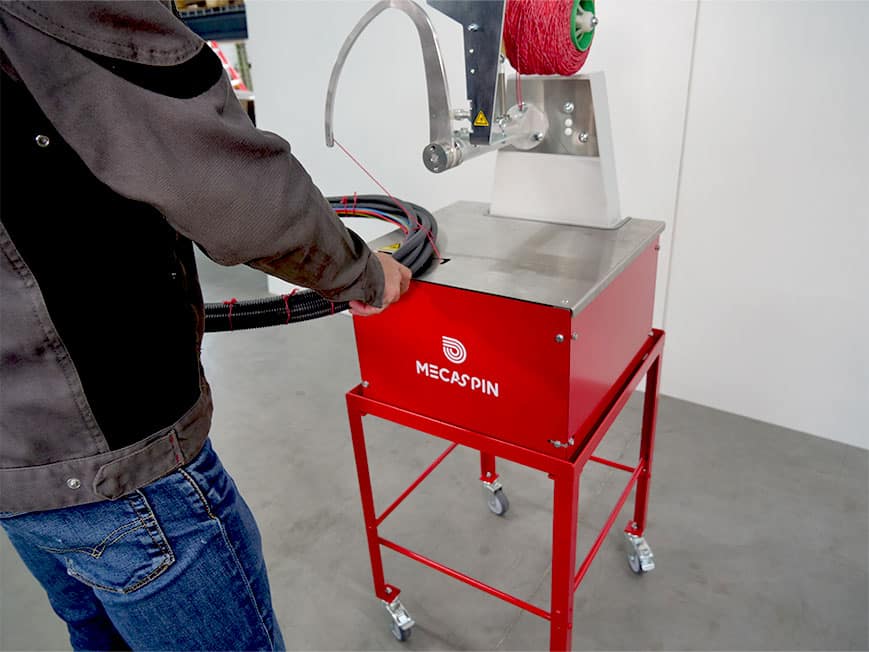

The operator positions the product on the table and then starts the cycle using a pedal or sensor. The tie is completed in less than 0.6 seconds. The machine has a refill capacity of 1,000 ties and accepts coils from 150 mm in diameter.

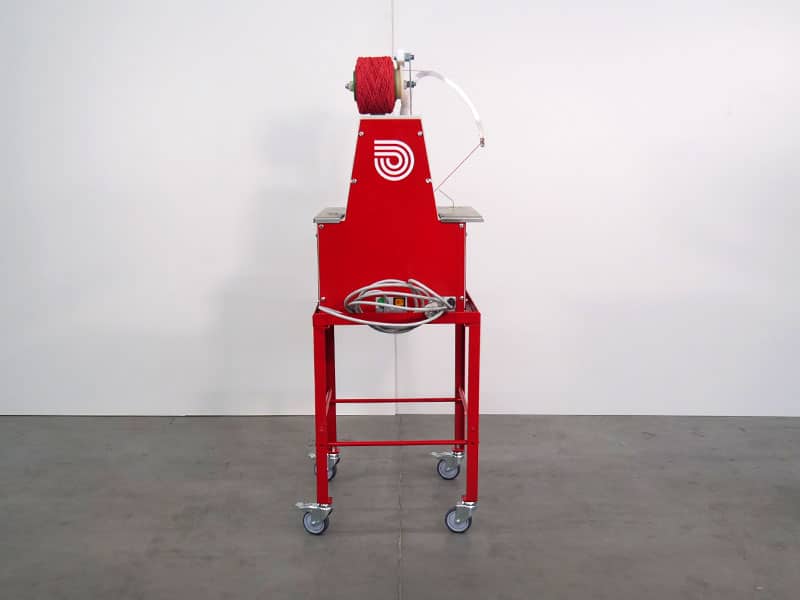

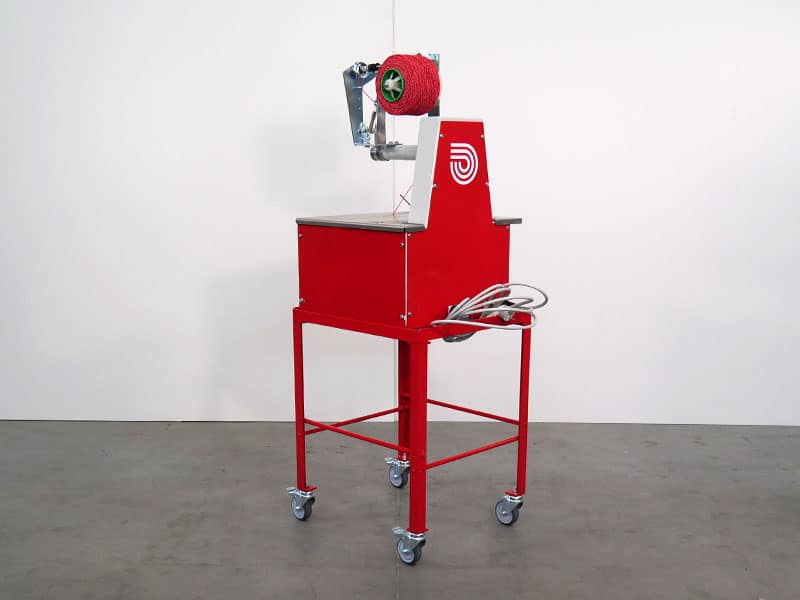

Compact, it measures 480 × 450 × 1,230 mm and weighs 4 kg. Its handling height is adjustable so that the workstation can be adapted to the operator’s working conditions.
Technical information
| Reference | FCL 01 |
|---|---|
| Equipment type | Semi-automatic banding machine |
| Main function | Tie a sheath to hold it in position before it is fitted to a junction box |
| Other applications | Tying spools, skeins or bundles of wires, cables and tubes |
| Operating mode | The operator positions the product on the table and then starts the cycle |
| Trigger | By pedal or sensor |
| Cycle time | Less than 0.6 seconds |

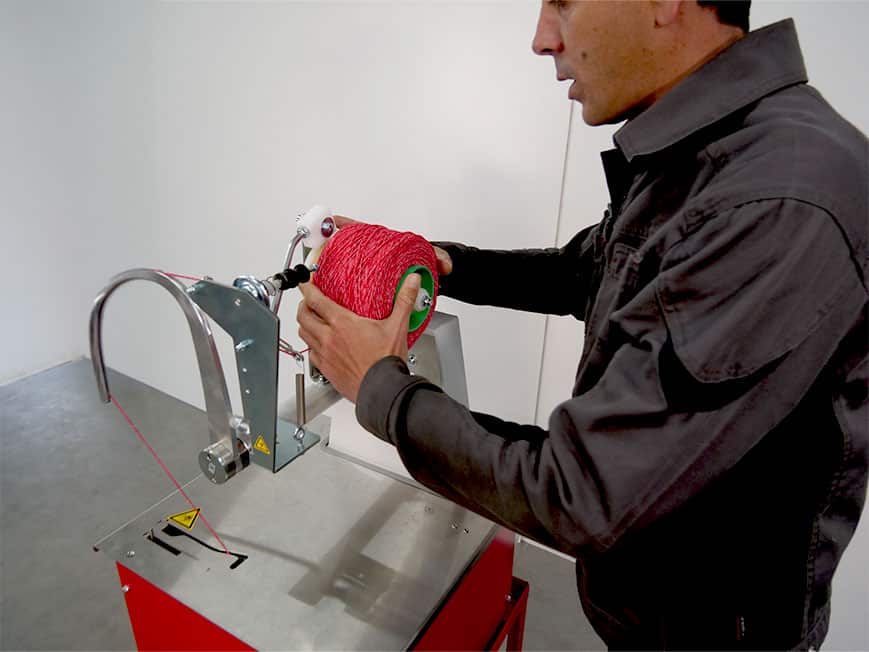

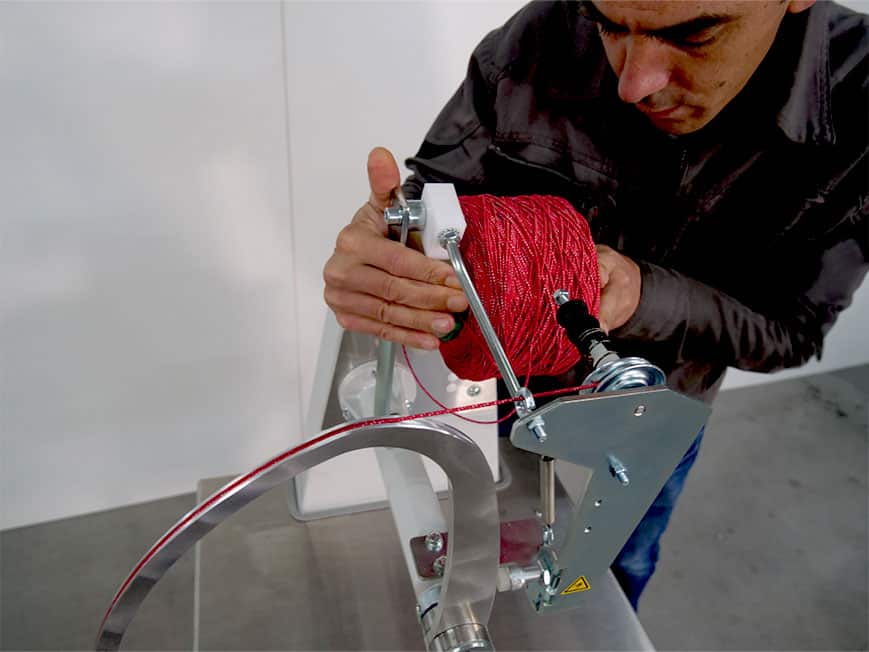

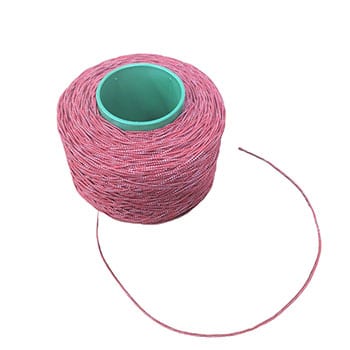

| Refill capacity | 1,000 ties |
| Minimum coil diameter | 150 mm |
| Mains power supply | 230 V, 50 Hz |
| Published rated power | 115 VAC, 60 Hz, maximum 180 VA |
| Weight | 4 kg |
| Dimensions | 480 × 450 × 1,230 mm |
| Handling height | Adjustable |
| Getting started | Easy to use; training can be completed in a few minutes |
Key benefits
01. Fast banding
With a cycle time of less than 0.6 seconds, the banding machine quickly secures coils and sheaths before the next stage of the production process.
02. Easy to use
Pedal or sensor triggering makes the operator's work easier. Mecaspin states that operators can learn to use the machine in a few minutes.
03. A versatile solution
The machine can tie sheaths, spools, skeins and bundles of wires, cables or tubes. It can therefore be used at several stages of production.
