Label-printing module for marking sheaths, wires and cables
Mark & Identify
Standalone cable inkjet printing module
CabInk

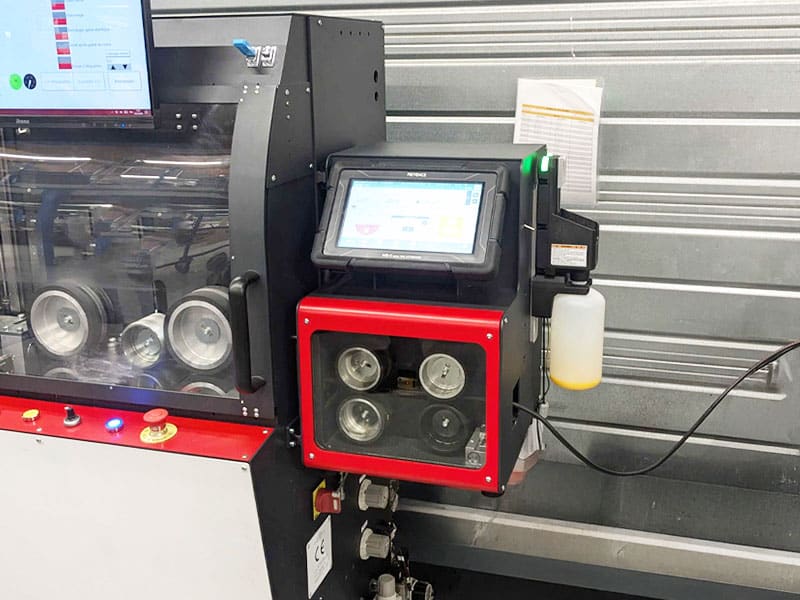

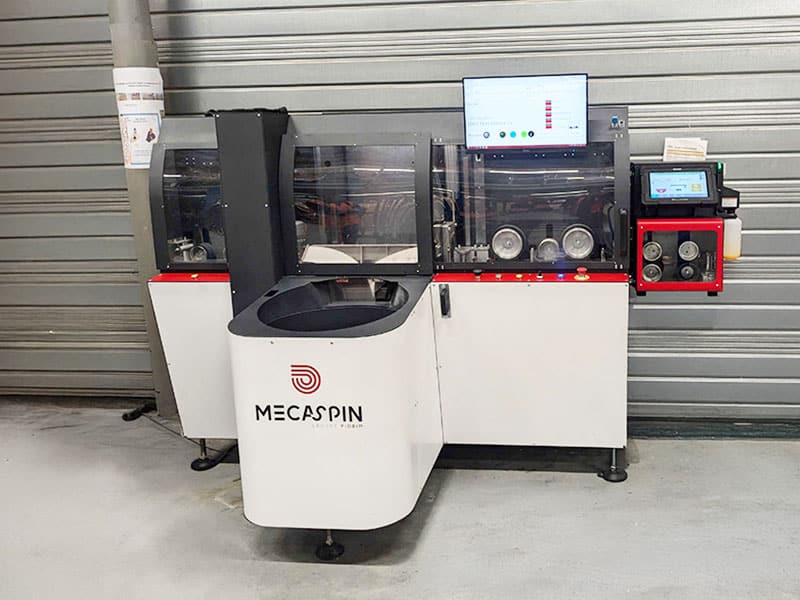

This welded module, specially designed to fit our MS03 pre-wiring machine, incorporates a high-quality inkjet printhead. The module has a dedicated touchscreen that makes it easy to use. It also includes an automatic printhead cleaning system to ensure minimal maintenance and maximum efficiency. For greater reliability, the module is equipped with a battery backup power supply, ensuring continuity of service even in the event of a power cut.
Are you looking for similar equipment?
Technical specifications

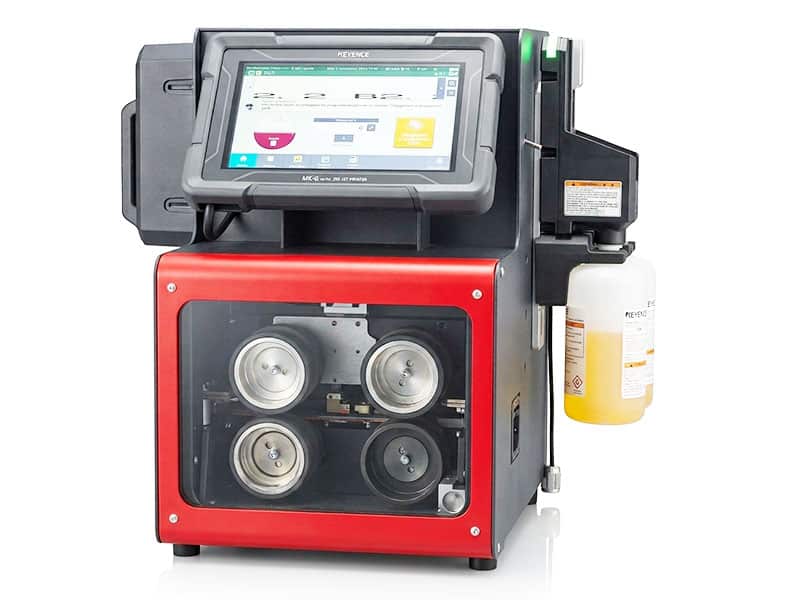

CabInk is a compact welded module dedicated to inkjet printing identification nomenclatures directly on cables.

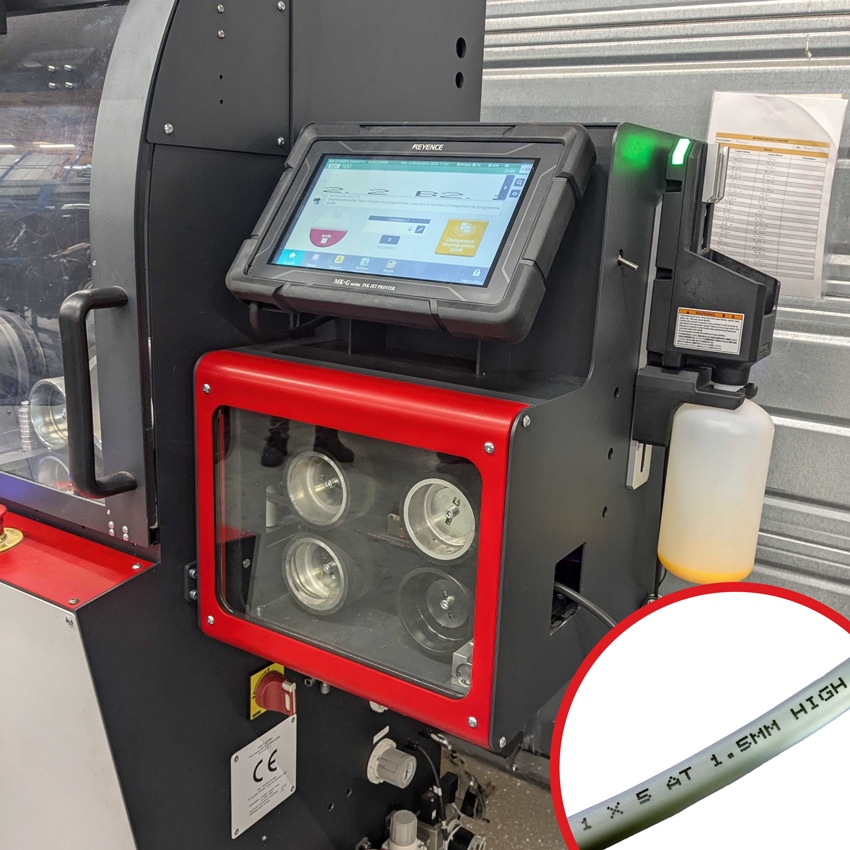

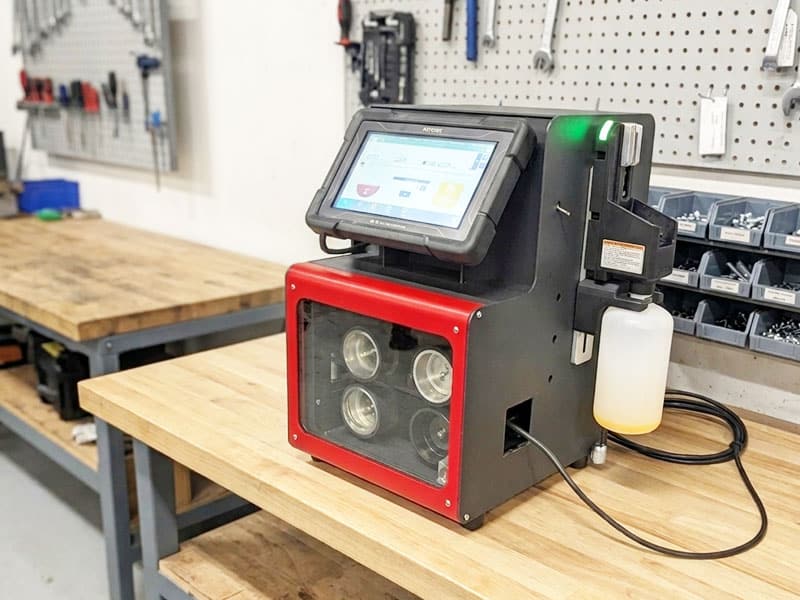

The CabInk module is designed to be integrated into an existing machine or installed on a workbench for manual operation. The module is equipped with a Keyence MK-G inkjet printing unit and a control touchscreen.

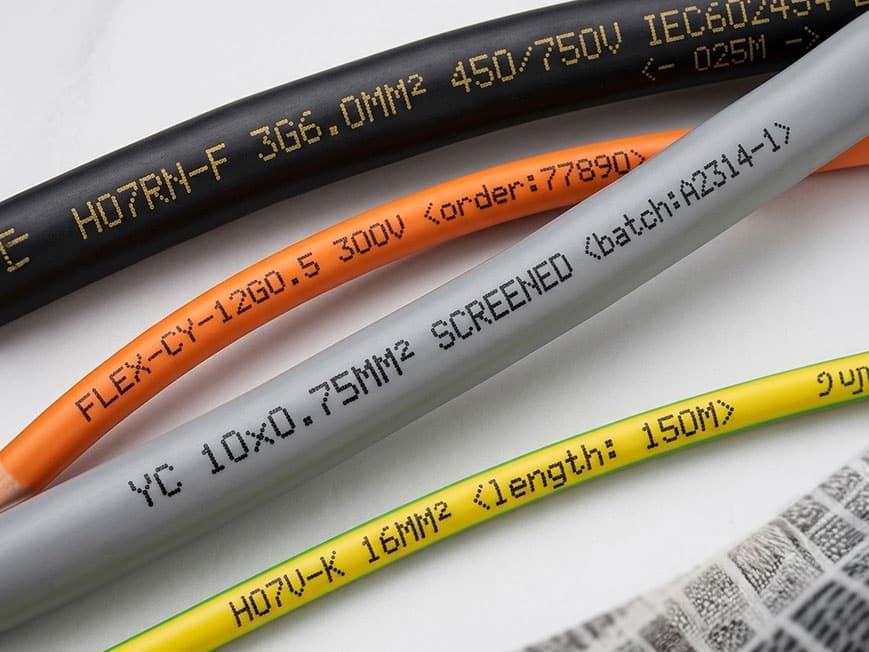

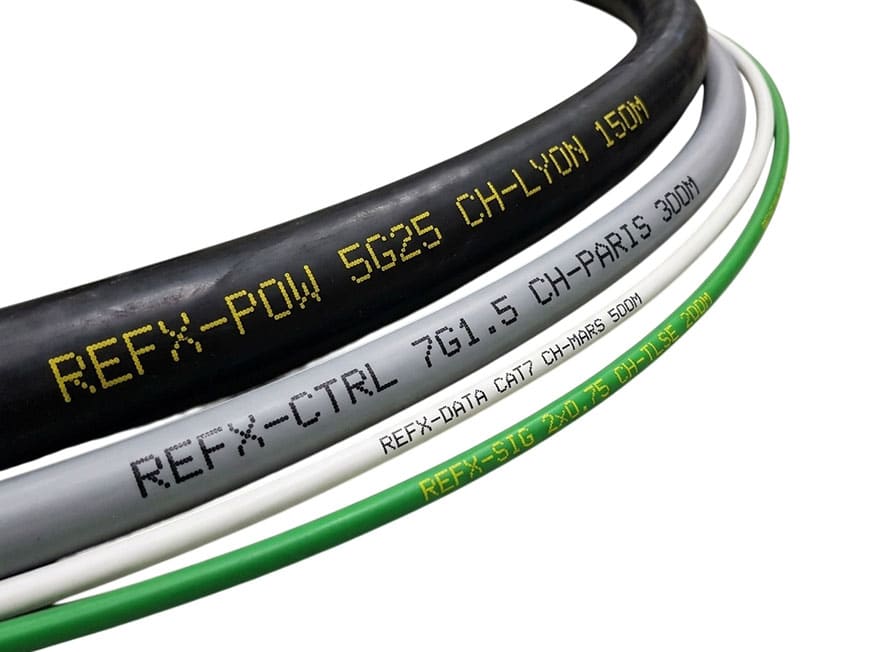

The operator manually inserts the cable into the module, where it is guided and held in the printing axis. When the cable is pulled, the system automatically detects the movement and starts printing. CabInk can print alphanumeric information such as references, identifiers or project data. CabInk improves cable traceability while reducing the risk of error and increasing productivity.
Technical information
| Specifications | CabInk |
|---|---|
| Structure | Welded steel frame |
| Dimensions (L × D × H) | 500 × 500 × 550 mm |
| Print colour on cable | Yellow or black |
| Cable measurement mode | Natively integrated |
| Printing speed | 2,525 characters/s |
| Internal memory | Up to 500 programs |
| Character height | 1 to 12 mm |
| Human-machine interface | Touchscreen + remote network access |
| Mounting | On a table or machine |
| Printing system | Keyence MK-G inkjet module |
| Marking type | Alphanumeric text, barcodes, logos, etc. |
| Operating mode | Continuous printing |
| Compatible cross-sections | 1 mm² to 35 mm² |
| Connectivity | Digital I/O, Ethernet, USB |
| Electrical supply | 230 V single-phase / 50 Hz |
| Pneumatic supply | 5 bar |
Key benefits
01. Standardised identification
100% identification reliability. Compliance with industrial standards and traceability. Consistent legibility and fewer human errors. Harmonised processes
02. In-line or manual operation
Independent operation: marking starts when the cable is pulled. Fast plug-and-play integration into an existing production line. Standalone operation is possible by pulling the cable manually.
03. Fast marking
Printing speed of up to 5 m/s. Continuous printing without stopping the line. Throughput suited to high industrial speeds.
Operating procedure / Operation
| Manual operation | In-line operation | |
|---|---|---|
| 1 | Load a predefined program using the touchscreen | Load the production folder into the line control unit |
| 2 | Insert the cable into the marking unit | The marking unit loads the corresponding predefined program (spacing, character size, etc.) |
| 3 | Pull the cable to the required length; the marking unit displays the length pulled in real time | Insert the cable into the marking unit |
| 4 | The cable is marked as it is pulled | The cable is marked as it is pulled |
