Junction-box marking and identification station
Rubbox
RUBBOX is a junction-box marking and identification station. It quickly generates and prints personalised labels to identify boxes, holes and sheaths, including the information required for production and on-site installation.
Are you looking for similar equipment?
Technical specifications

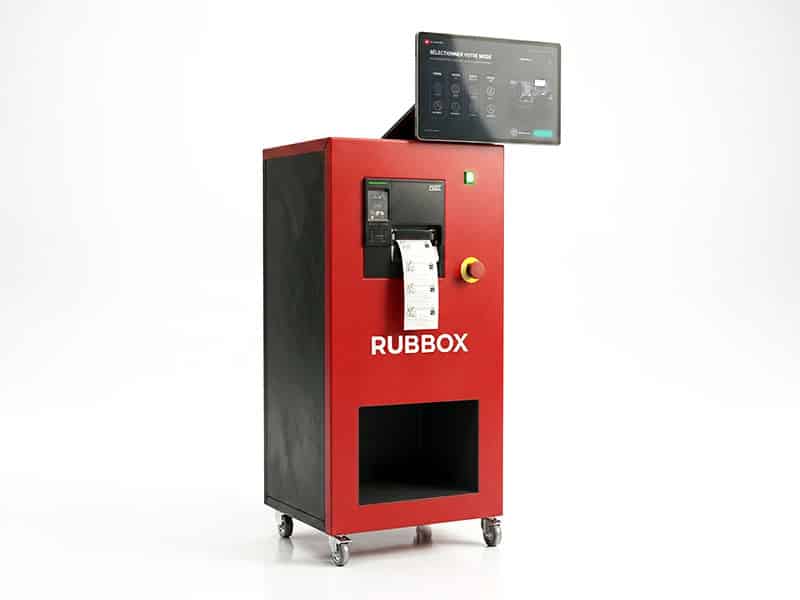

Rubbox is a station for identifying and marking sheaths on junction boxes, dedicated to the preparation of electrical wiring harnesses. Built with a robust steel structure, it integrates easily into a production environment.
Using digital files (such as SchemBAT), Rubbox automatically generates and prints personalised labels for each box, guaranteeing reliable and standardised identification.

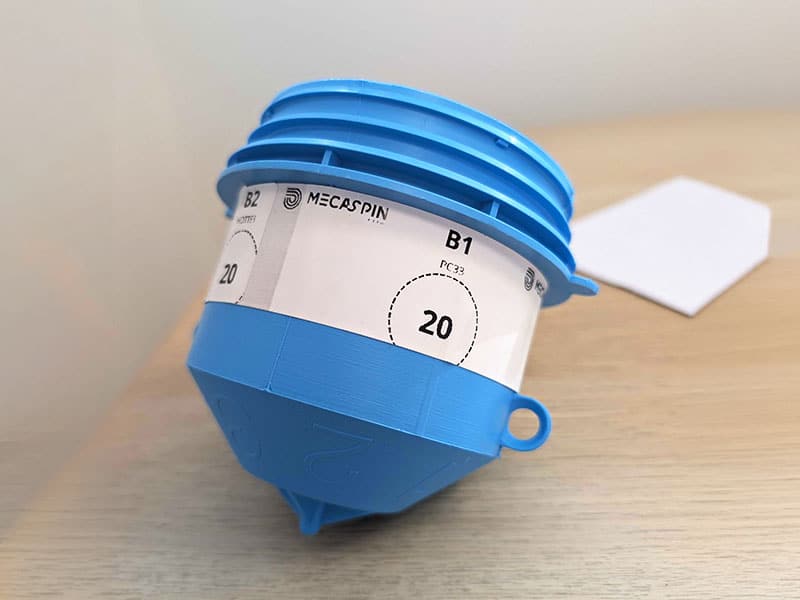

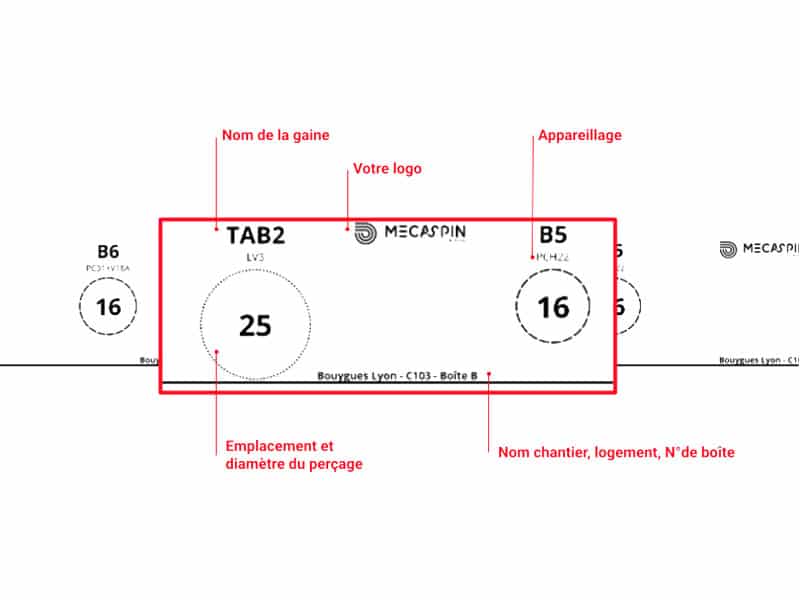

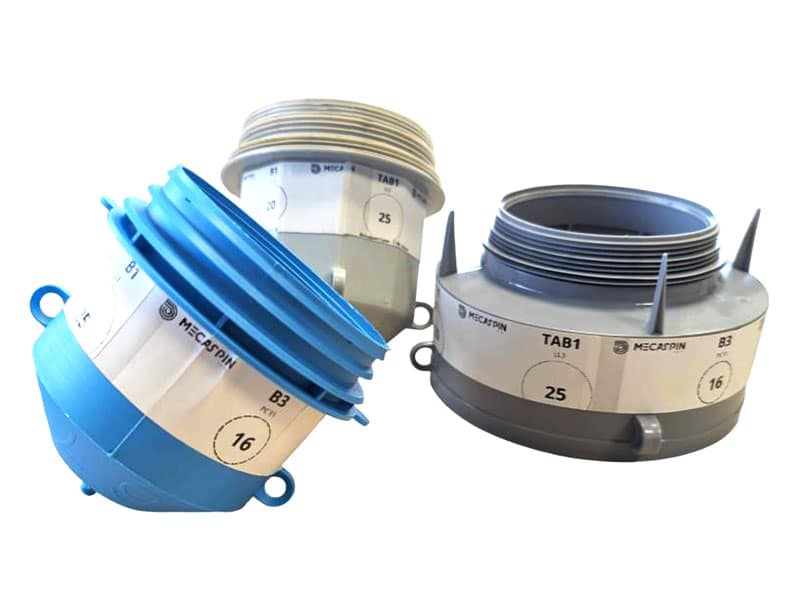

Essential information such as sheath locations, their names, associated devices, the project, the dwelling and the company logo is clearly shown on each box.
The fast printing system provides marking in just a few seconds while ensuring perfect repeatability, regardless of the operator.

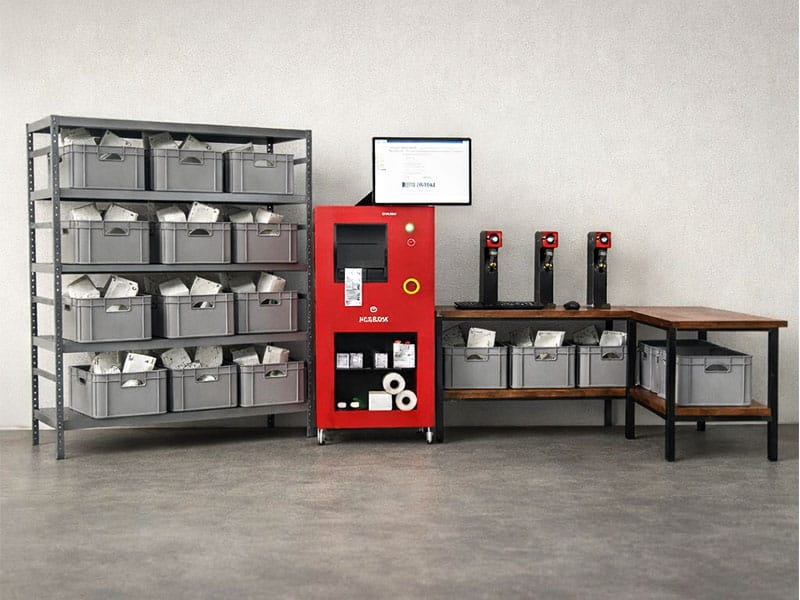

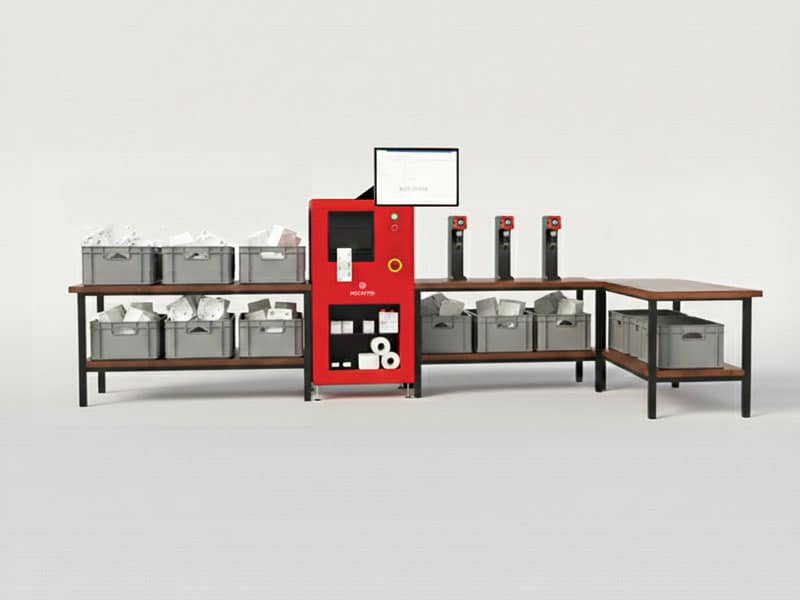

Rubbox helps make production more reliable, improve traceability and structure workshop flows.
Technical information
| Specifications | Rubbox |
|---|---|
| Dimensions (L × D × H) (cm) | 60 × 60 × 180 |
| Printing type | Thermal transfer |
| Integrated printer | TSC MB240T, pre-peel and peel-off option |
| Label width (cm) | 30 |
| Label length (cm) | Custom-made to suit the box |
| Box identification | Optional second label |
| Shelf dimensions (L × D × H) (cm) | 55 × 55 × 50 – 1 shelf |
| Control | 22-inch touchscreen |
| Integrated computer | 16 GB / 128 GB – Windows 10 |
| Communication | Drive, NAS, USB |
| Box adaptability | Configurable for all boxes |
| CAD software compatibility | SchemBAT, Desa |
Key benefits
01. Error-free
Strictly identical identification regardless of the operator. Intuitive operation with no training required.
02. Time savings
Complete marking of all types of boxes in just a few seconds. Identification of the different holes included.
03. Standardised marking
Personalised with your logo. Shows the orientation of the sheaths relative to the box. Enhances your image and simplifies work for installers.

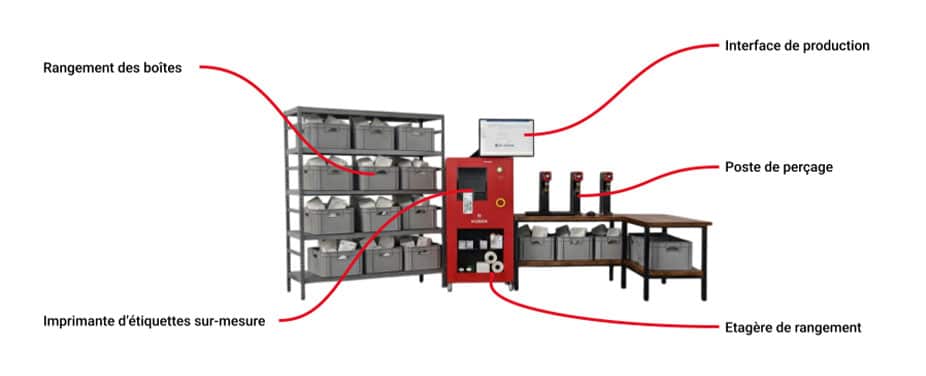

Operating procedure / Operation
| 1 | Load the production file (such as SchemBAT) onto the Rubbox station |
| 2 | Select the project or projects to be processed |
| 3 | Select the junction box displayed on the screen |
| 4 | Apply the personalised label around the junction box |
| 5 | Apply the second identification label to the head of the wiring harness if required |
| 6 | Punch the junction box and store it in its assigned location |
