Roll’Rack One

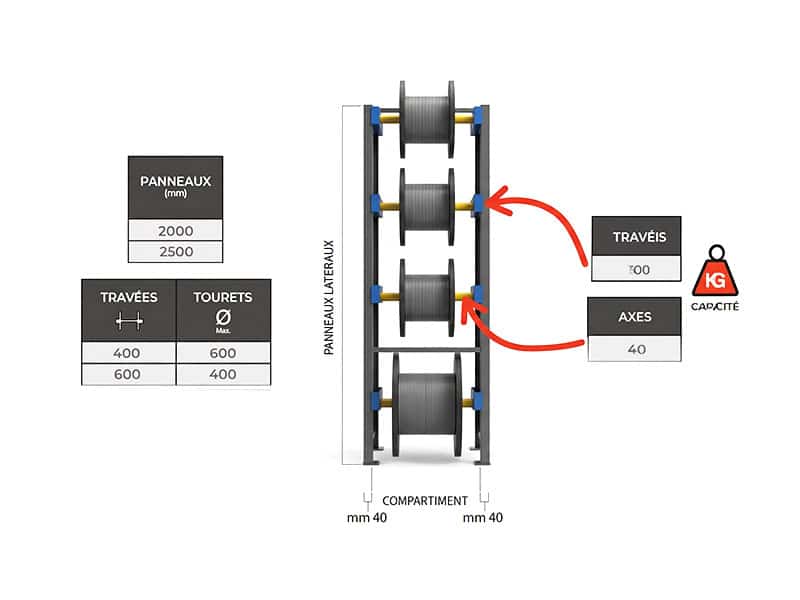

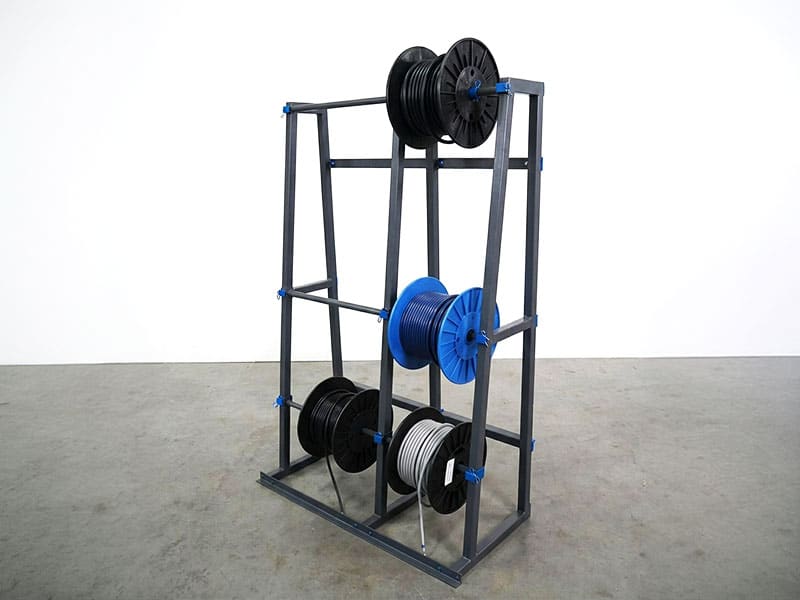

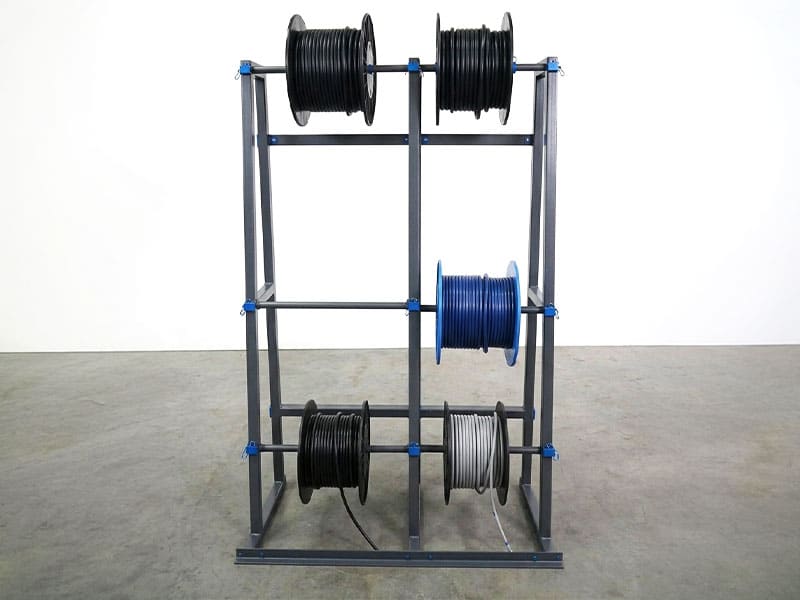

The Roll’Rack One is a vertical storage and unwinding solution for small cable drums, allowing several cable references to be grouped within a small floor area.
The cable drums are installed on tubular shafts positioned on height-adjustable supports, making it easy to adapt the rack layout to different drum sizes. The cable can then be unwound directly from its storage position.
Available in several heights from 2 to 3.5 m, the Roll'Rack One offers a simple solution for organising and making the different cable references used in the workshop immediately accessible.
Are you looking for similar equipment?
Technical specifications
The Roll’Rack One is a self-supporting steel structure consisting of vertical uprights made from 50 × 40 × 3 mm tubular sections. The adjustable supports allow the shaft positions to be adapted to different cable drum diameters.
The cable drums are mounted on Ø27 mm tubular shafts on the 2 / 2.5 m versions and on Ø27 to 33 mm shafts on the 3 / 3.5 m versions. The maximum capacity is 300 kg per bay.
Range comparison
| Version | Height | Capacity / bay | Shaft Ø |
|---|---|---|---|
| 1 | 2 000 mm | 300 kg | Ø27 mm |
| 2 | 2 500 mm | 300 kg | Ø27 mm |
| 3 | 3 000 mm | 300 kg | Ø27 à 33 mm |
| 4 | 3 500 mm | 300 kg | Ø27 à 33 mm |
Key benefits
01. 4 heights available
Vertical cable drum storage makes it possible to use the available workshop height. Its modular design allows an installation to be created that is adapted to the existing cable drum stock.
02. Up to 3.5 m high
Vertical cable drum storage makes it possible to use the available workshop height. The storage area also serves as the operating area.
03. Up to 300 kg per bay
The supports are fitted with anti-dislodgement systems that hold each cable drum shaft individually. When one drum needs to be removed, the others can remain locked.
Operating procedure / Operation
| 1 - Support adjustment | Position the supports at the required height according to the diameter of the cable drums to be installed. |
| 2 - Cable drum preparation | Insert the tubular shaft into the central bore of the cable drum. |
| 3 - Loading | Position the shaft/cable drum assembly on the rack supports. |
| 4 - Securing | On configurations fitted with the anti-dislodgement system, check that the shaft is mechanically locked onto its supports. |
| 5 - Unwinding | Pull the cable directly from the cable drum installed on the rack. |
| 6 - Replacement | Unlock the safety system, remove the shaft and cable drum, then install the new reference. On the system shown in the catalogue, the lever simultaneously releases the anti-dislodgement devices installed on the same vertical upright. |
Options

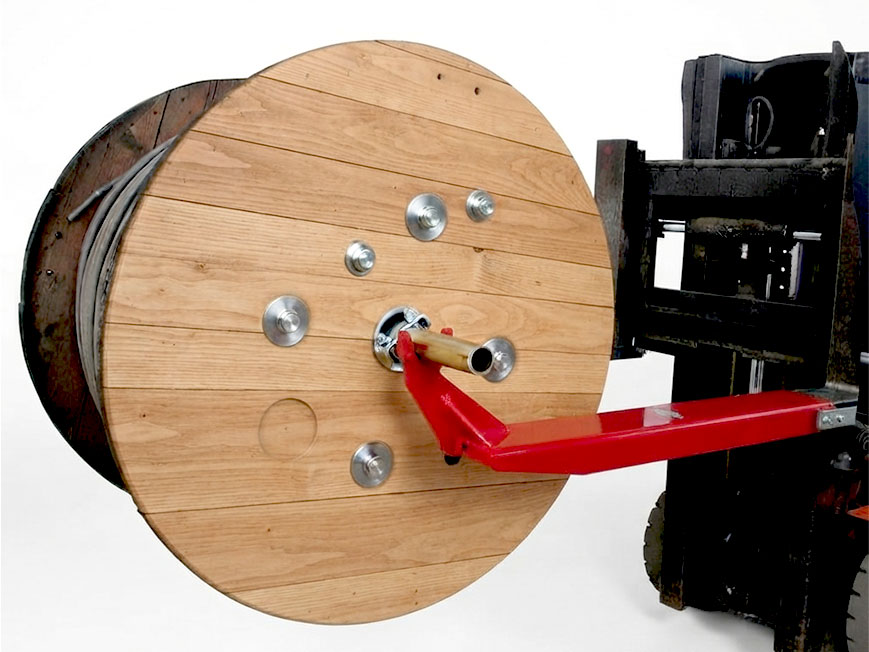

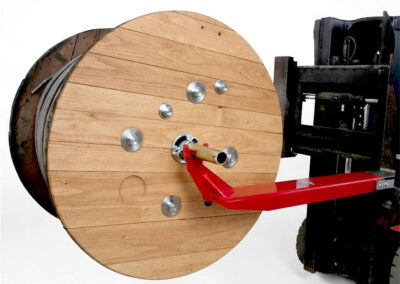

Options – fork extension for forklift truck
Options – fork extension for forklift truck

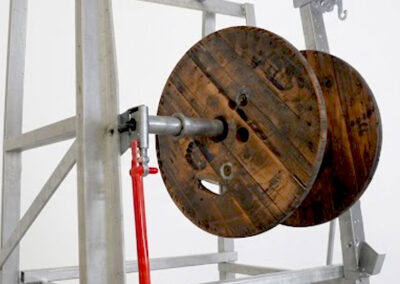

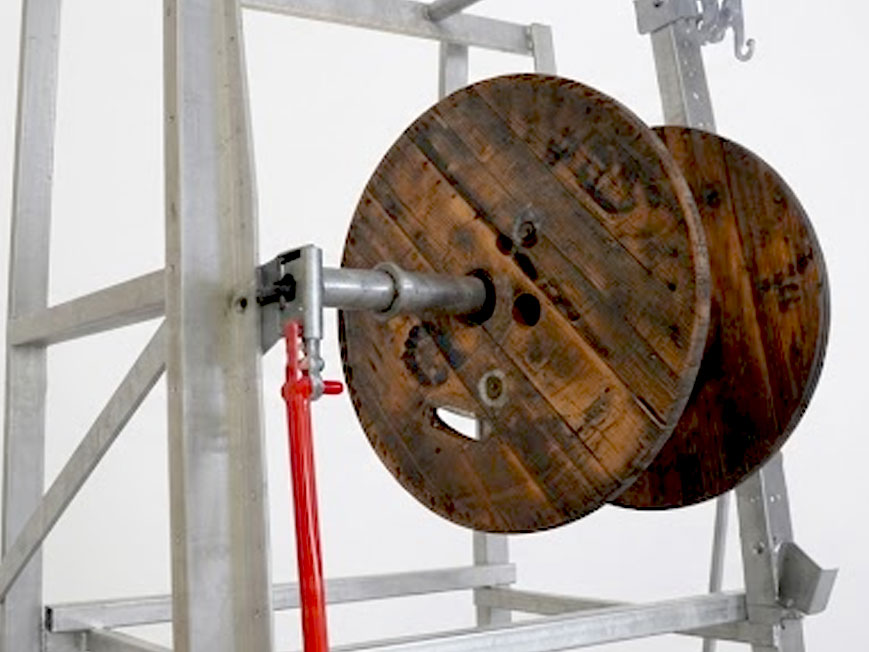

Options – safety activation rod for high mounted reels
Options – safety activation rod for high mounted reels

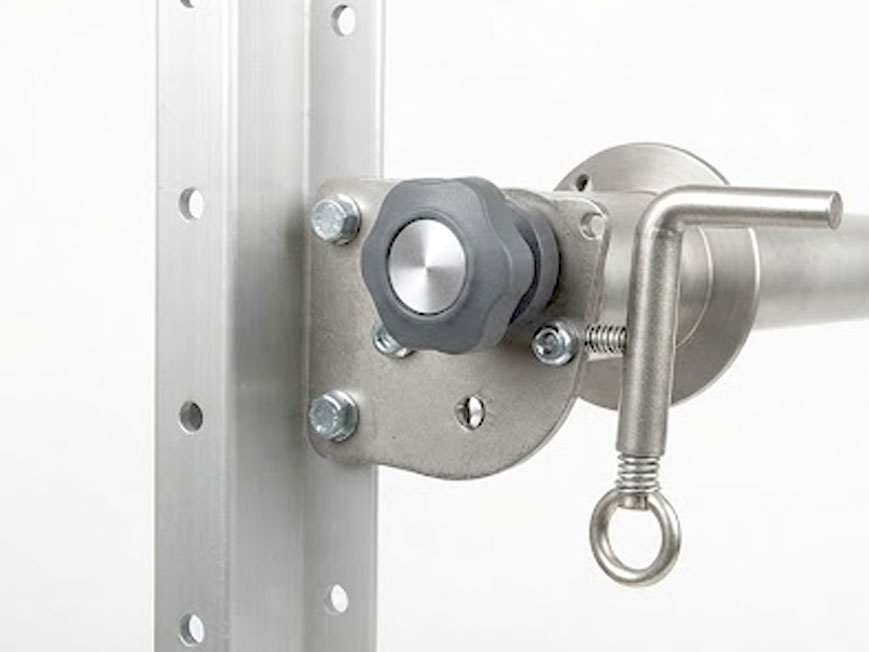

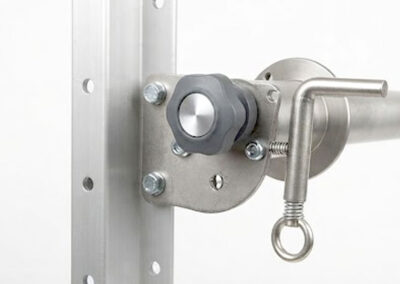

Options – anti-disengagement system
Options – anti-disengagement system
