Unwind & Dispense

Controlled-braking spool unwinding rack

Spin Rack

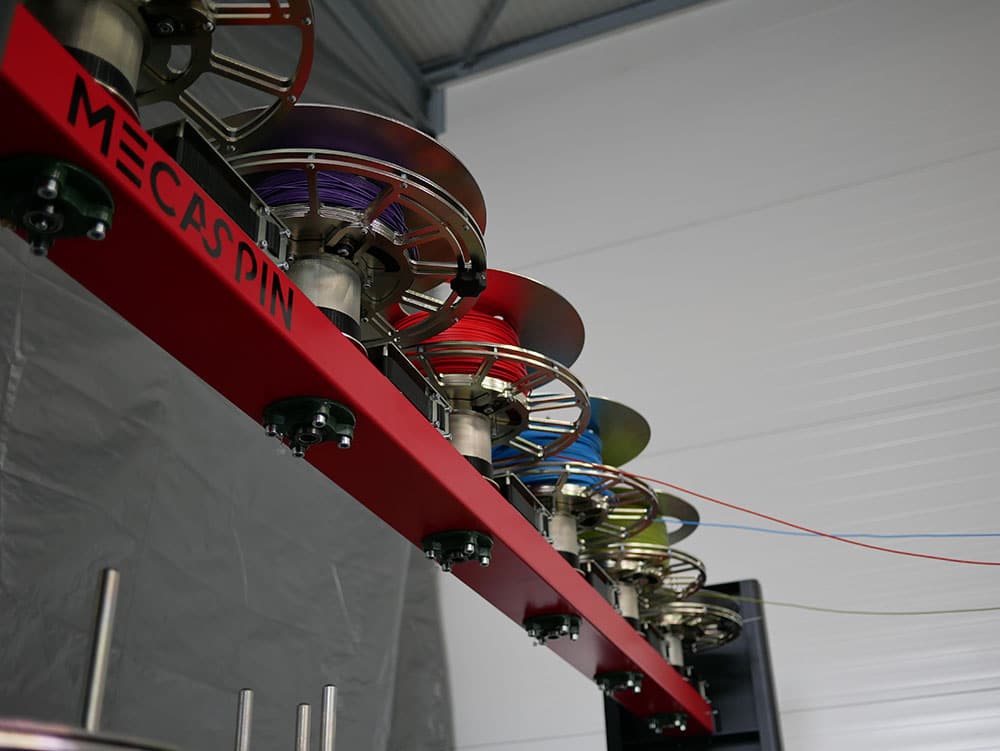

The MECASPIN electrical wire dispenser provides optimum unwinding of your electrical-wire spools. No more wasting time on tangled wires! Easy to use, the wire and cable unwinder adapts to a wide range of spools and can store up to 12 different spools.

Are you looking for similar equipment?

Contact us

Technical specifications

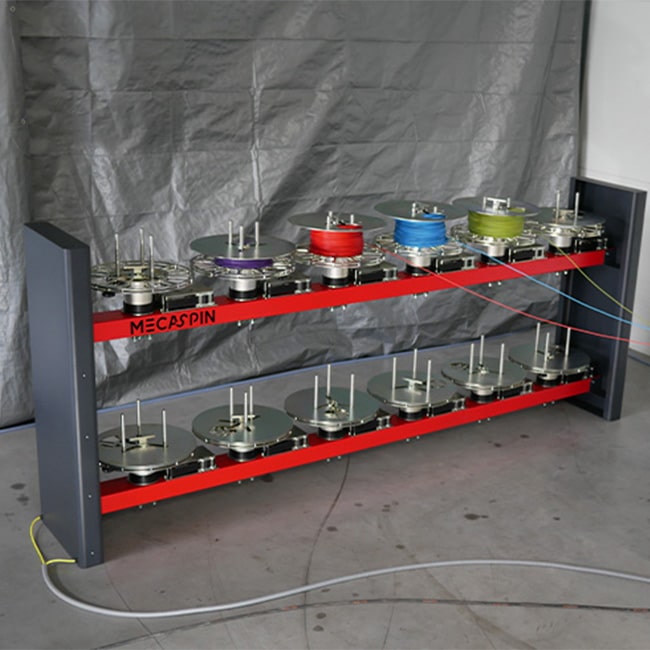

The Mecaspin electrical wire dispenser is an automatic unit pneumatically connected to the pre-wiring machine. Compatible with all Mecaspin pre-wiring machines, it consists of 12 drums arranged on two racks of six and can accommodate up to 12 different spools.

Each drum supports a spool weighing up to 30 kg, with a maximum outer diameter of 450 mm and an adjustable inner diameter from 80 to 150 mm. One-handed adjustment using three fingers centres the spool. The system achieves a maximum pre-wiring speed of 3 m/s, with acceleration of 1 m/s². Its cylinder-and-strap braking system provides rapid stopping, while mounting on cast-iron bearings and ball bearings promotes smooth unwinding.

The rack can be installed in a position aligned with or perpendicular to the pre-wiring machine to suit the workshop layout.

Technical information

Equipment	Spin Rack
Connection	Pneumatic connection to the machine
Compatibility	All Mecaspin pre-wiring machines

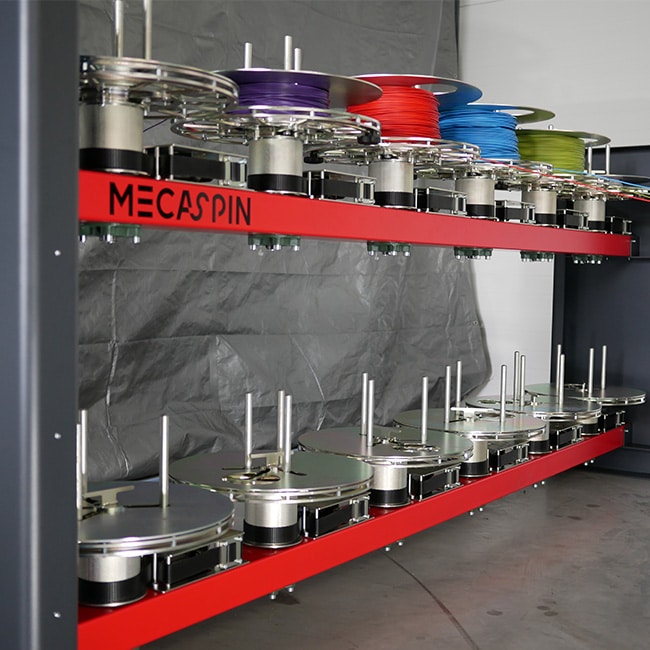

Configuration	Rack comprising 12 drums arranged on 2 racks of 6 drums
Storage capacity	Up to 12 different spools
Main function	Optimum unwinding of electrical wire towards the pre-wiring machine
Maximum weight per drum	30 kg
Maximum pre-wiring speed	3 m/s
Acceleration	1 m/s²
Braking system	Cylinder-and-strap braking, virtually wear-free
Spool change	Extremely fast
Inner-diameter adjustment	One-handed adjustment using 3 fingers
Permitted inner diameter	From 80 to 150 mm
Maximum spool outer diameter	450 mm
Drum mounting	Cast-iron bearings and ball bearings
Possible layout	Position aligned with or perpendicular to the pre-wiring machine

Key benefits

01. Smooth, controlled unwinding

The automatic system provides a steady supply of wires to the pre-wiring machine. It limits the risk of tangling and helps maintain continuous production.

02. Fast spool changes

One-handed adjustment and the three-finger centring system make spools easier to replace. This saves the operator time when changing references.

03. A workshop-adaptable installation

The 12-drum rack can be positioned in line with or perpendicular to the pre-wiring machine, allowing it to fit the available space and production flows as effectively as possible.
