Unwind & Dispense

Large-length sheath reel with controlled braking

Devi Drive

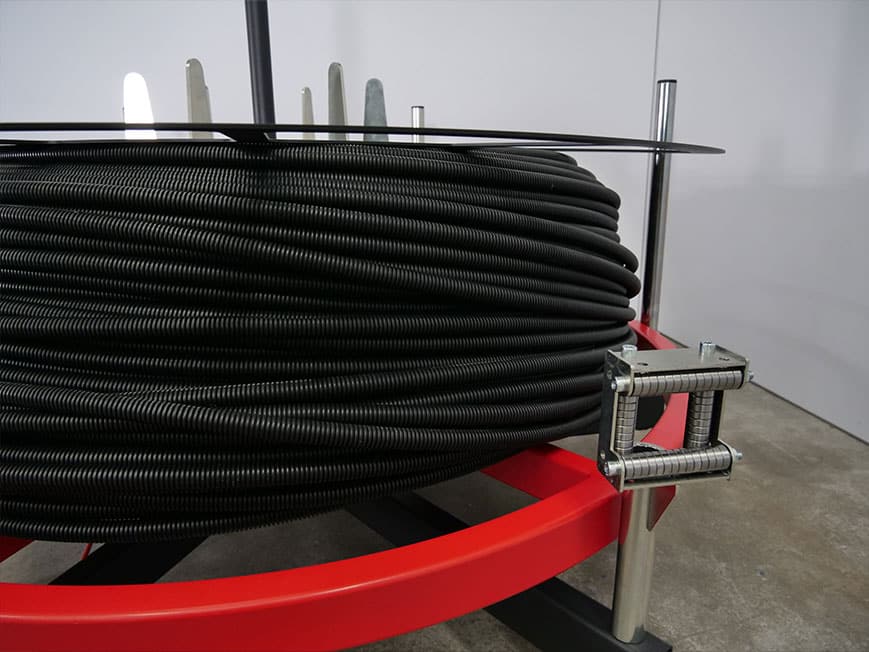

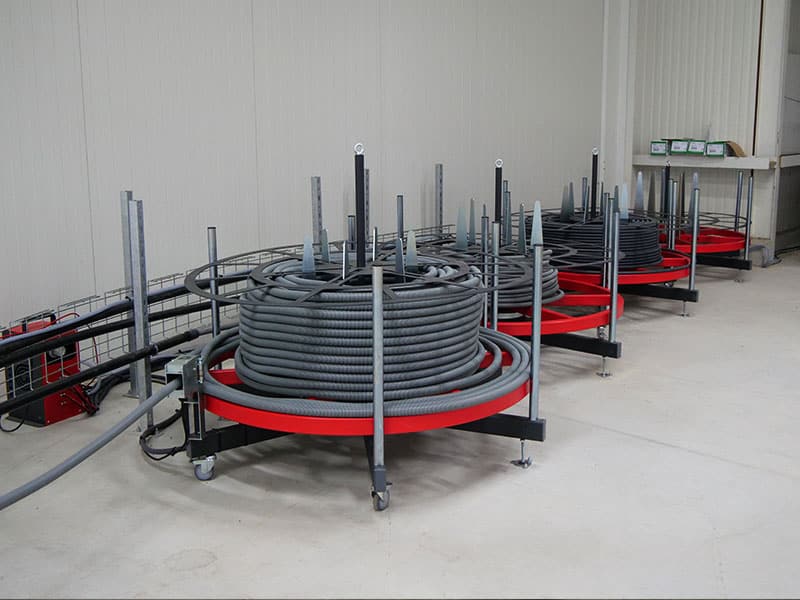

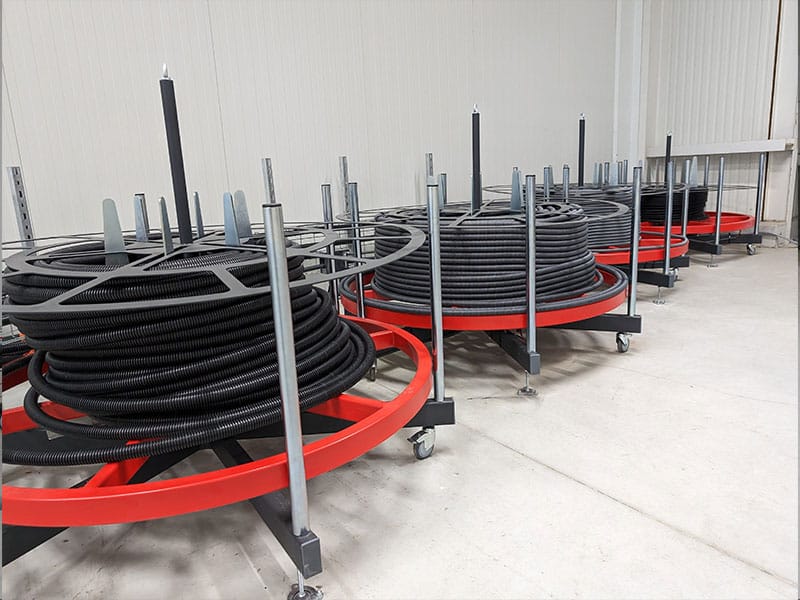

Equipped with a connected braking system, the MECASPIN ICTA sheath reel provides optimum sheath unwinding into the pre-wiring machine. Combined with our range of automatic, modular pre-wiring machines, the sheath unwinder makes unwinding operations easier and prevents accidental unwinding of the sheath.

Are you looking for similar equipment?

Contact us

Technical specifications

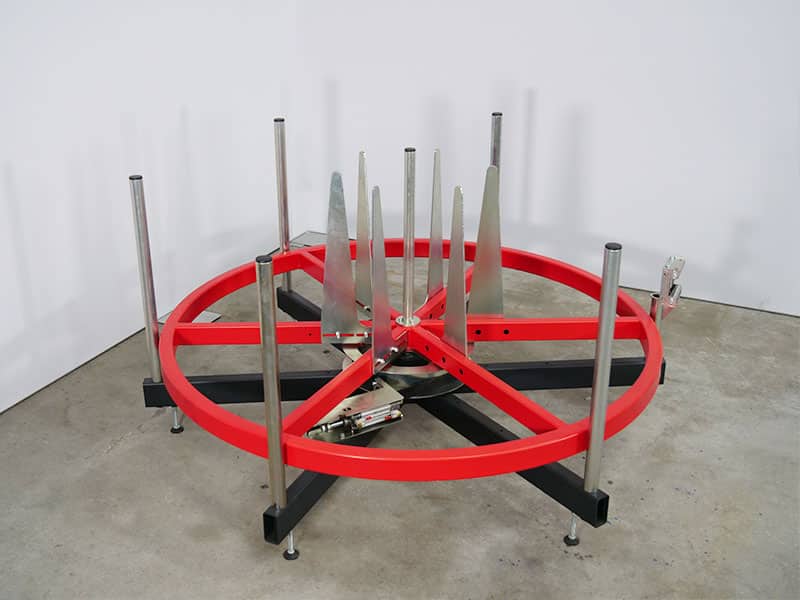

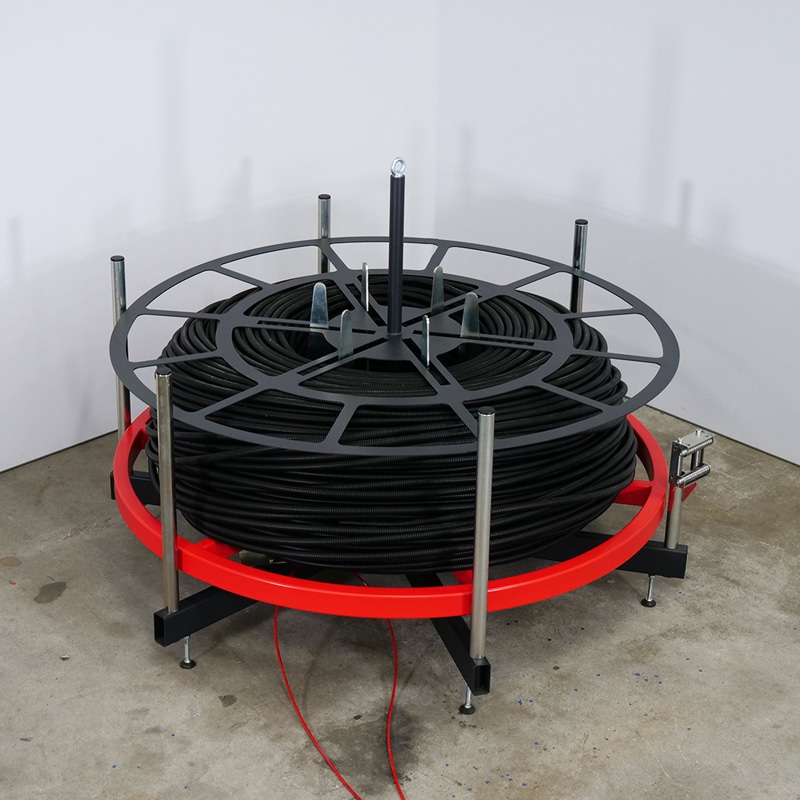

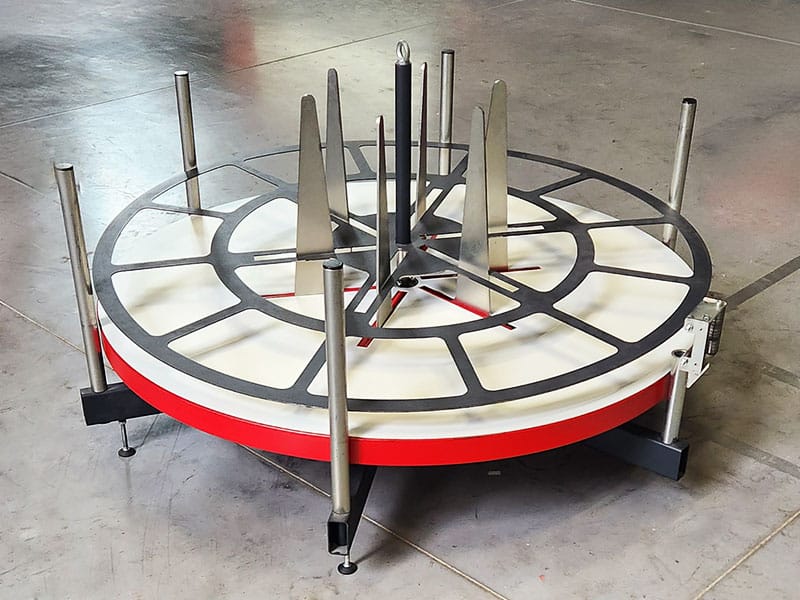

The Mecaspin ICTA sheath reel is an automatic, servo-controlled unit connected to the pre-wiring machine by a pneumatic system. Its cylinder-and-strap braking system ensures smooth sheath unwinding and limits the risk of accidental overrun. Compatible with Mecaspin pre-wiring machines, it accommodates reels weighing up to 50 kg, with a maximum diameter of 1,350 mm. Its robust design, easy reel changes and clockwise or anticlockwise operation make daily use simpler in production workshops.

Technical information

Equipment type	Devi Drive
Connection	Pneumatic connection to the pre-wiring machine
Compatibility	Mecaspin pre-wiring machines
Maximum reel weight	50 kg
Maximum reel diameter	1,350 mm
Maximum reel height	450 mm
Maximum pre-wiring speed	3 m/s
Acceleration	0.5 m/s²

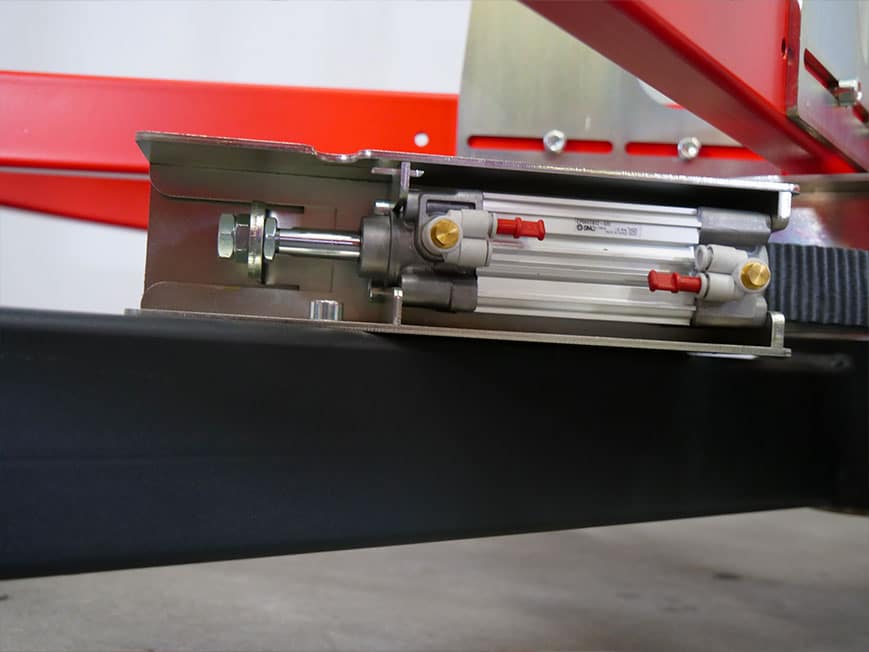

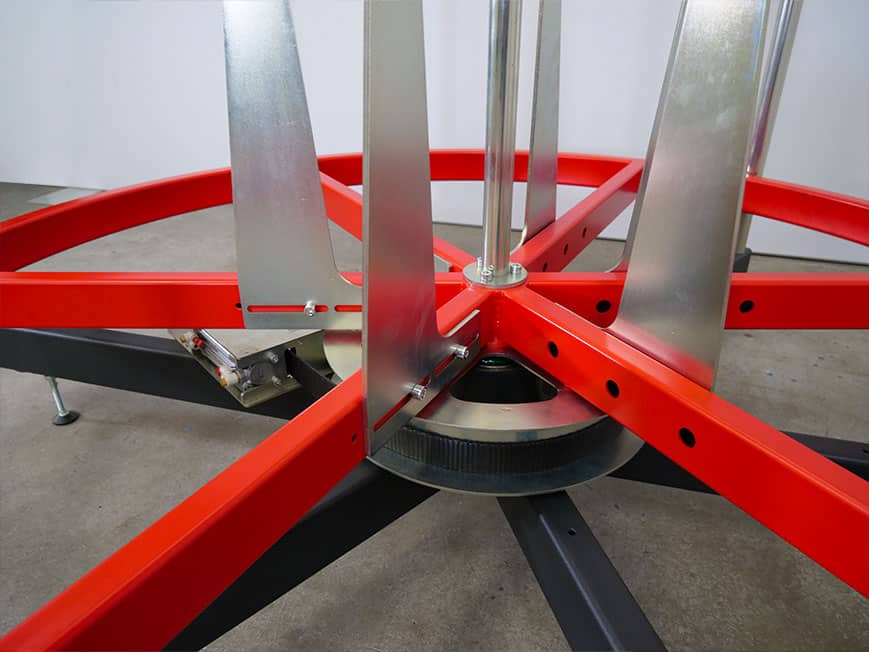

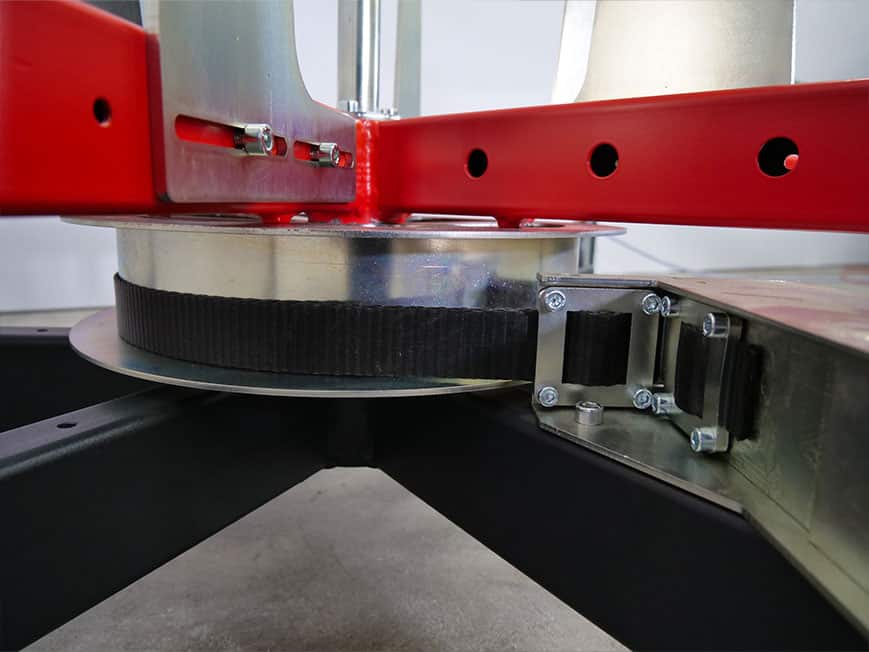

Braking system	Cylinder-and-strap braking, virtually wear-free

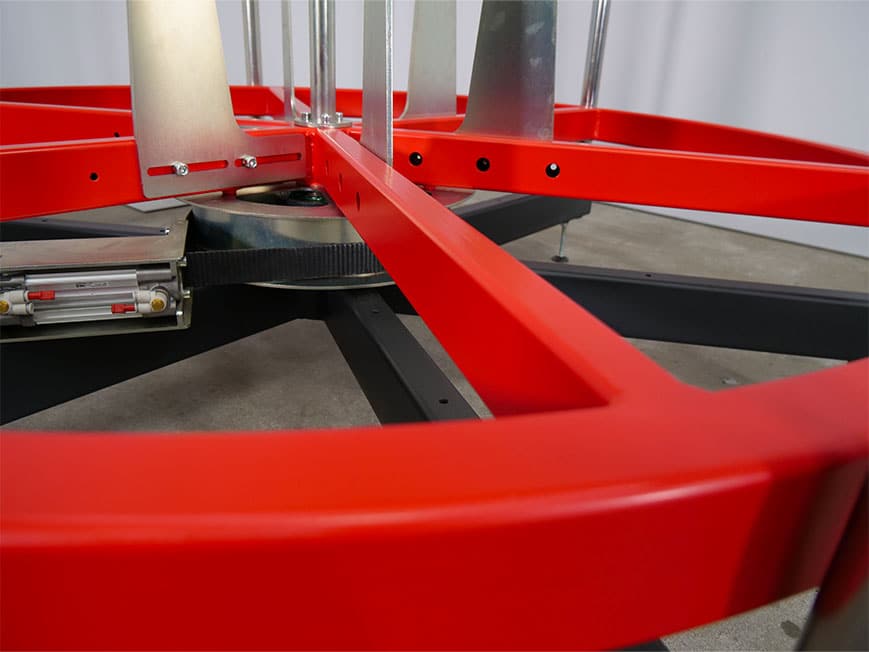

Rotation system	Rotor mounted on machined housings and very large-diameter ball bearings
Direction of rotation	Clockwise or anticlockwise
Footprint	1.5 m diameter
Loading	Can be handled using a hoist or jib crane
Reel change	Fast and easy
Construction	Ultra-robust design

Key benefits

01. Smooth, safe unwinding

The servo-controlled system and cylinder-and-strap brake provide a smooth sheath feed while limiting accidental overrun.

02. Easy reel changes

The reel design makes loading and replacement easier, reducing handling time and maintaining production throughput.

03. Robust and versatile

Designed for industrial use, the unit accepts reels weighing up to 50 kg and rotates in either direction to suit the workshop layout.

Options

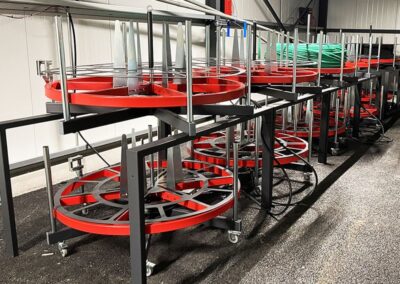

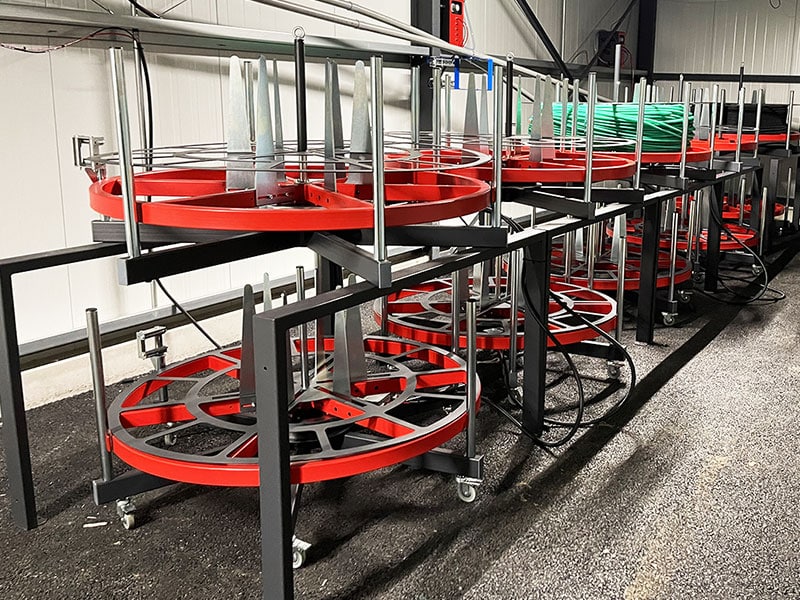

options-sheath-reel-riser

The vertical storage system for stacking your sheath reels is an innovative solution for maximising space in your workshop. Its reliable, robust design makes more efficient use of the available floor area while keeping stored items accessible. The sheath-reel riser integrated into the system provides an additional way to make optimum use of vertical space. It not only increases storage capacity but also reduces floor clutter, allowing you to store more items without sacrificing essential working space.
