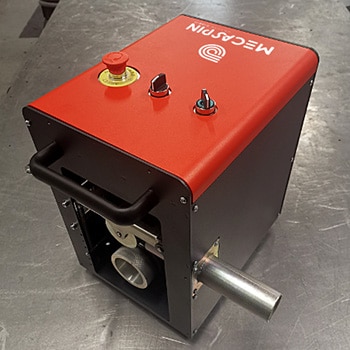

ICTA sheath pusher

PushR

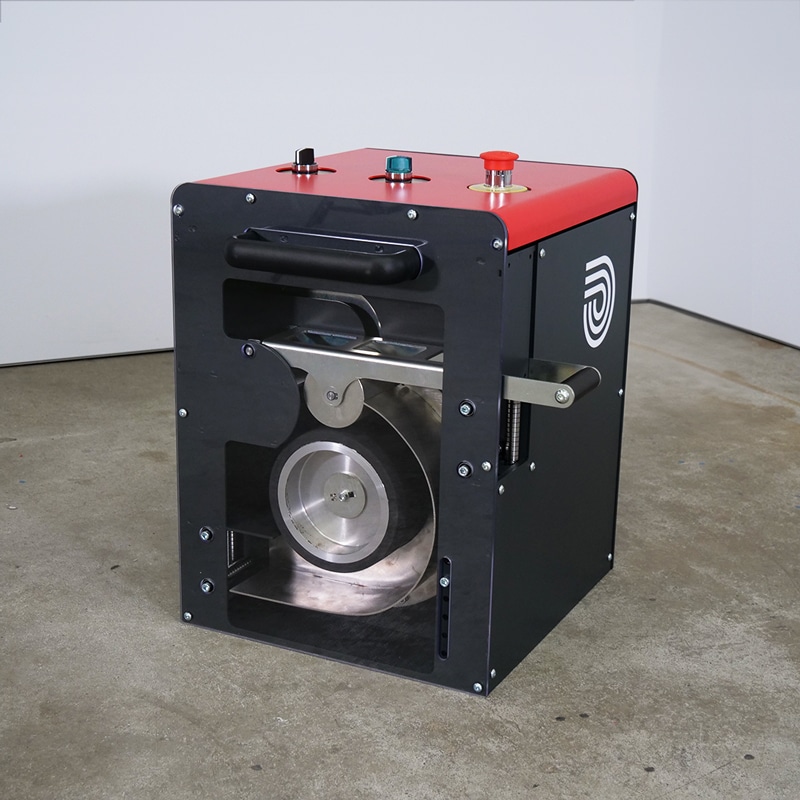

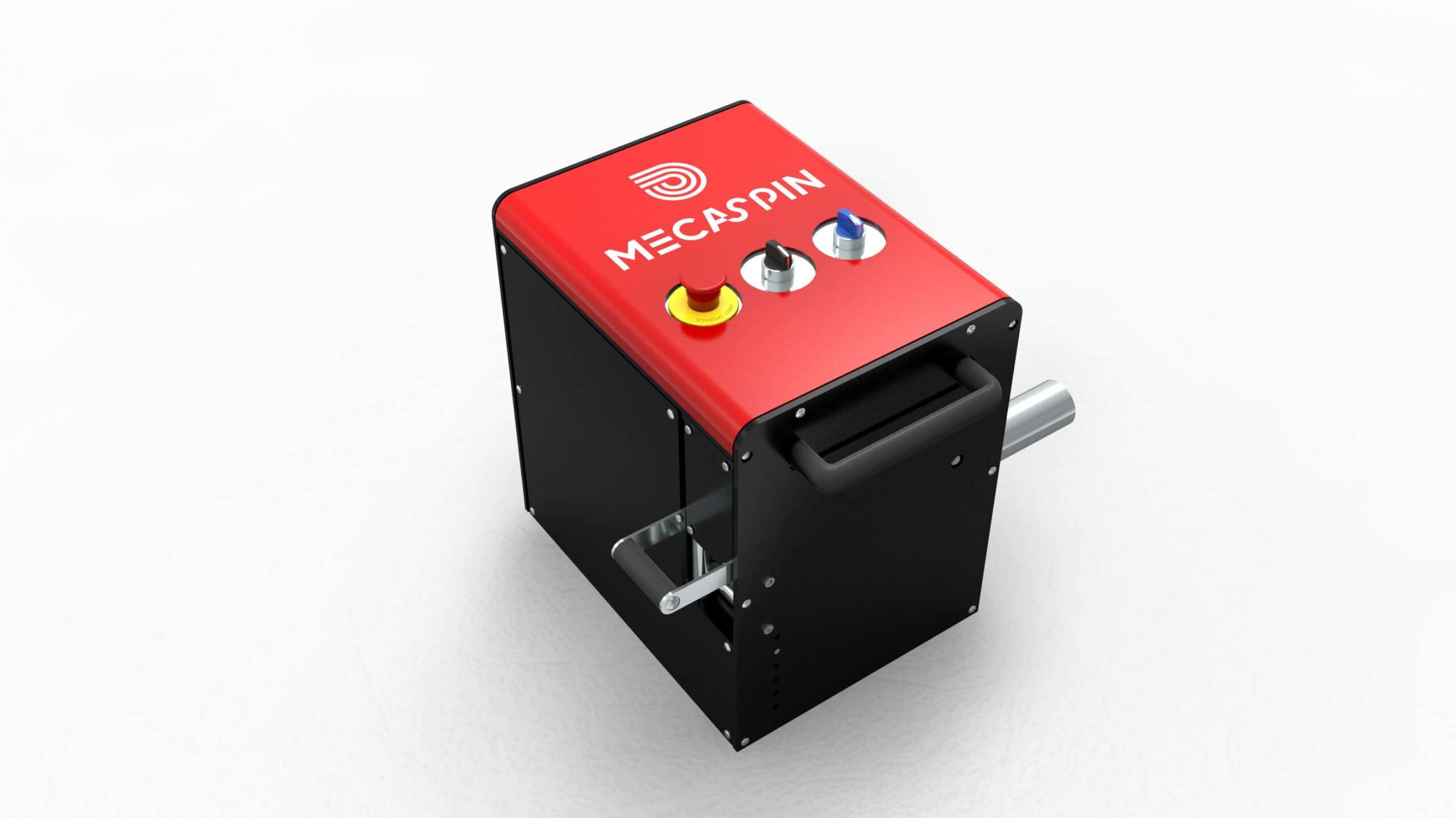

The MECASPIN sheath pusher is a semi-autonomous unit that “pushes” the sheath to the pre-wiring machine, increasing the pre-wiring length up to 80 metres. Positioned at the sheath-reel outlet, the sheath pusher communicates with the pre-wiring machine via a MODBUS TCP connection.

Are you looking for similar equipment?

Contact us

Technical specifications

The Mecaspin sheath pusher is a semi-autonomous unit installed at the sheath-reel outlet. It mechanically assists the sheath as far as the pre-wiring machine in order to increase pre-wiring capacity and make it easier for the sheath to travel through the guide tubes.

The pusher communicates with the pre-wiring machine via a MODBUS TCP connection. Its motorised assistance makes it possible to reach pre-wiring lengths of up to 80 metres while improving measurement accuracy over long lengths. It also helps improve coiling performance, with a speed of up to 2.5 m/s.

The U-turn function provides more options for the line layout. In particular, it allows the reels to be moved closer to the operator and creates a more compact installation when the space available in the workshop is limited.

The system also incorporates sheath-reel end detection and helps reduce the load on the machine’s coiling rollers.

Key benefits

01. Pre-wiring lengths up to 80 metres

The pusher's motorised assistance makes it possible to prepare long sheath lengths while maintaining smooth movement towards the machine.

02. Optimise the line layout

Thanks to the U-turn function, the reels can be moved closer to the machine and the operator. This configuration is particularly useful when the available floor area is limited.

03. Improve pre-wiring and coiling

The pusher helps the sheath move through the guide tubes, improves measurement accuracy and increases coiling speed up to 2.5 m/s while reducing wear on the machine rollers.
