Automatic sheath pre-wiring machine for electrical wiring harnesses
Pre-wiring Machine
Semi-automatic sheath pre-wiring machine for electrical wiring harnesses

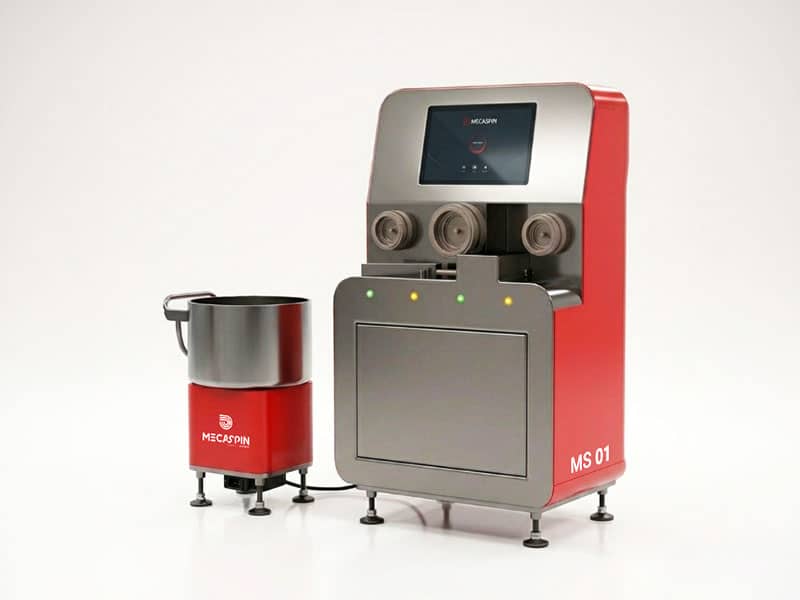

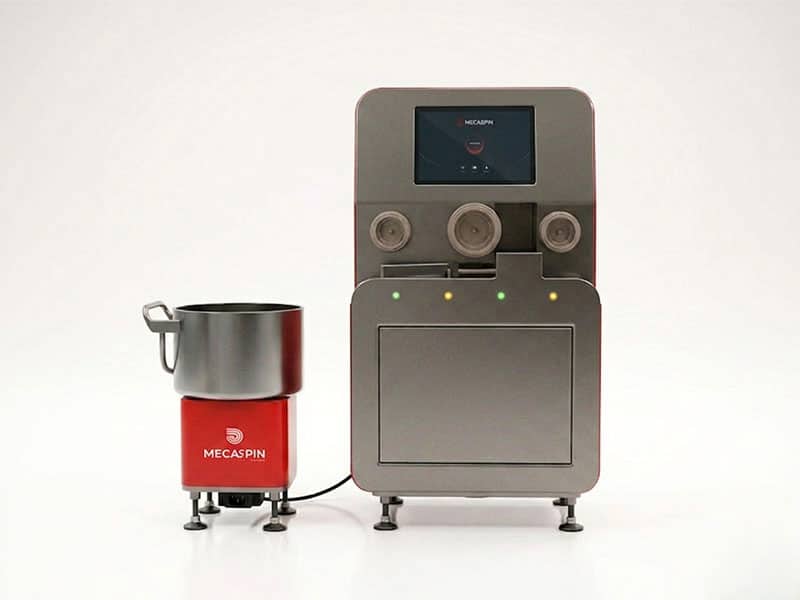

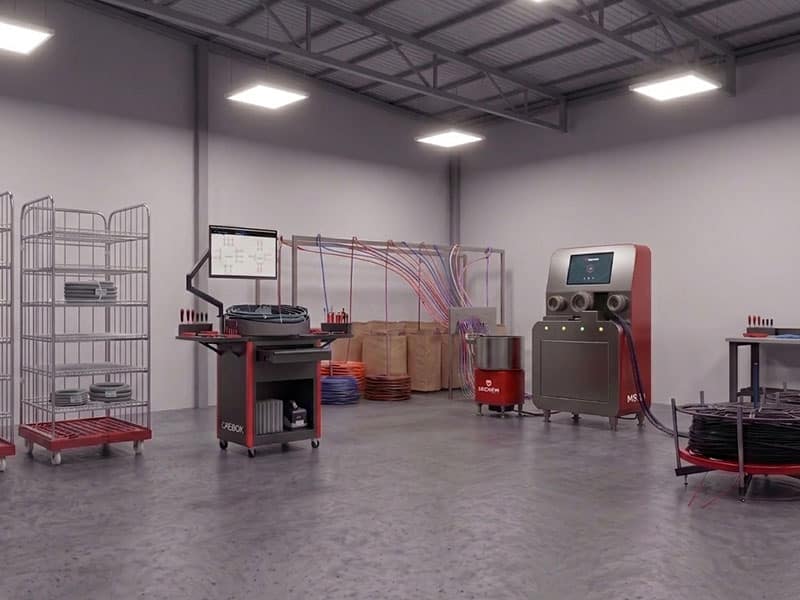

MS01
Semi-automatic industrial pre-wiring machine for inserting electrical wires and cutting conduit and wires to length. The pre-wiring length is up to 60 m. Production data can be entered manually via the user interface or read automatically. Robust and highly reliable, the MS01 semi-automatic sheath pre-wiring machine is ideally suited to electricians producing electrical wiring harnesses.
- Up to 60 conduits/h
- Up to 99.9% accuracy
Are you looking for similar equipment?
Features
The MS01 is a semi-automatic pre-wiring, measuring, cutting, coiling and label-printing machine for processing conduit and cable. It was designed to support electricians in the prefabrication of electrical, hydraulic and tertiary wiring harnesses.
Compact and suitable for workshops of all sizes, the machine is designed for fast, intuitive operation. It enables operators to produce prefabricated networks quickly, comfortably and consistently.
Technical specifications
| Specifications | MS 01 |
|---|---|
| Dimensions (L × W × H) | 1000 x 800 x 1700 mm |
| Maximum pre-wiring length | 1 to 40 m |
| Cable and tube cutting length | 1 to 60 m |
| Average production rate | 40 to 60 cycles/h |
| Length measurement accuracy | 99% |
| Conduit diameters | ICTA 16 - 20 - 25 - 32 - PEX |
| Permissible wire and cable cross-sections | 0.5 to 35 mm² |
| Wire and conduit measurement | Automatic |
| Conduit and tube cutting | Automatic |
| Wire and cable cutting | Manual |
| Coiling | Automatic |
| Label printing | Automatic |
| HMI screen | 1920 x 1080 pixel touchscreen - 16:9 |
| Production modes | Automatic file reading or manual input |
| Coiling diameter | 55 cm diameter bowl |
| Power supply | 230 V single-phase 50 Hz |
| Conduit label printer | TSC MB 240 T - Peel-off option |
| Label dimensions | Reinforced HDPE 137 x 30 cm |
Key benefits
01. For electrical, hydraulic and tertiary wiring harnesses
Suitable for conduit pre-wiring and for cutting cable, PEX pipe and empty conduit. Handles different cable cross-sections and conduit diameters up to 50 mm.
02. 100% in-house prefabrication
Designed for electricians and plumbers carrying out prefabrication in-house. It makes it possible to bring prefabrication in-house at controlled cost while retaining control of manufacturing, lead times and costs.
03. Over 70% of operations automated
Pre-wiring, conduit cutting, wire measurement, conduit measurement, coiling and automatic label printing. This reduces muscular fatigue compared with manual prefabrication.
Are you interested in our equipment?
Contact us!
Options
options-reverse-wire-inlet

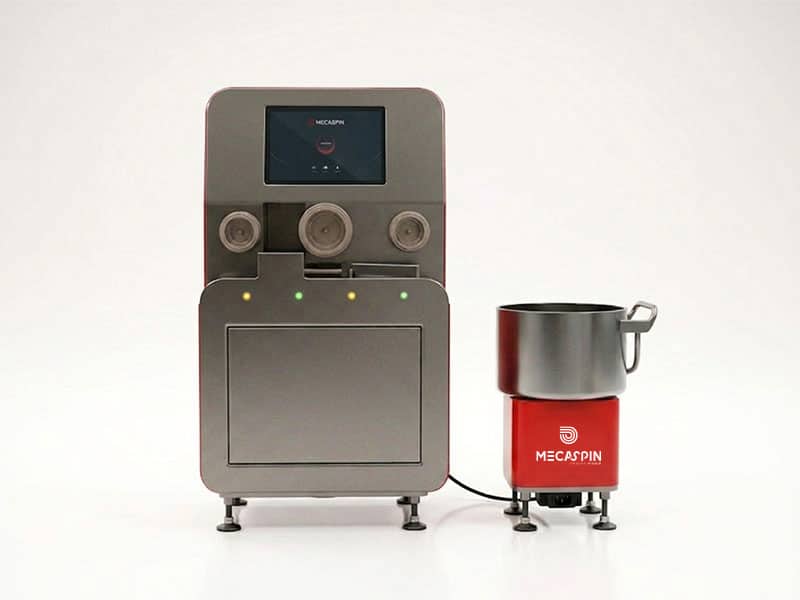

wire inlet orientation on the right or left
wire-end-sensor

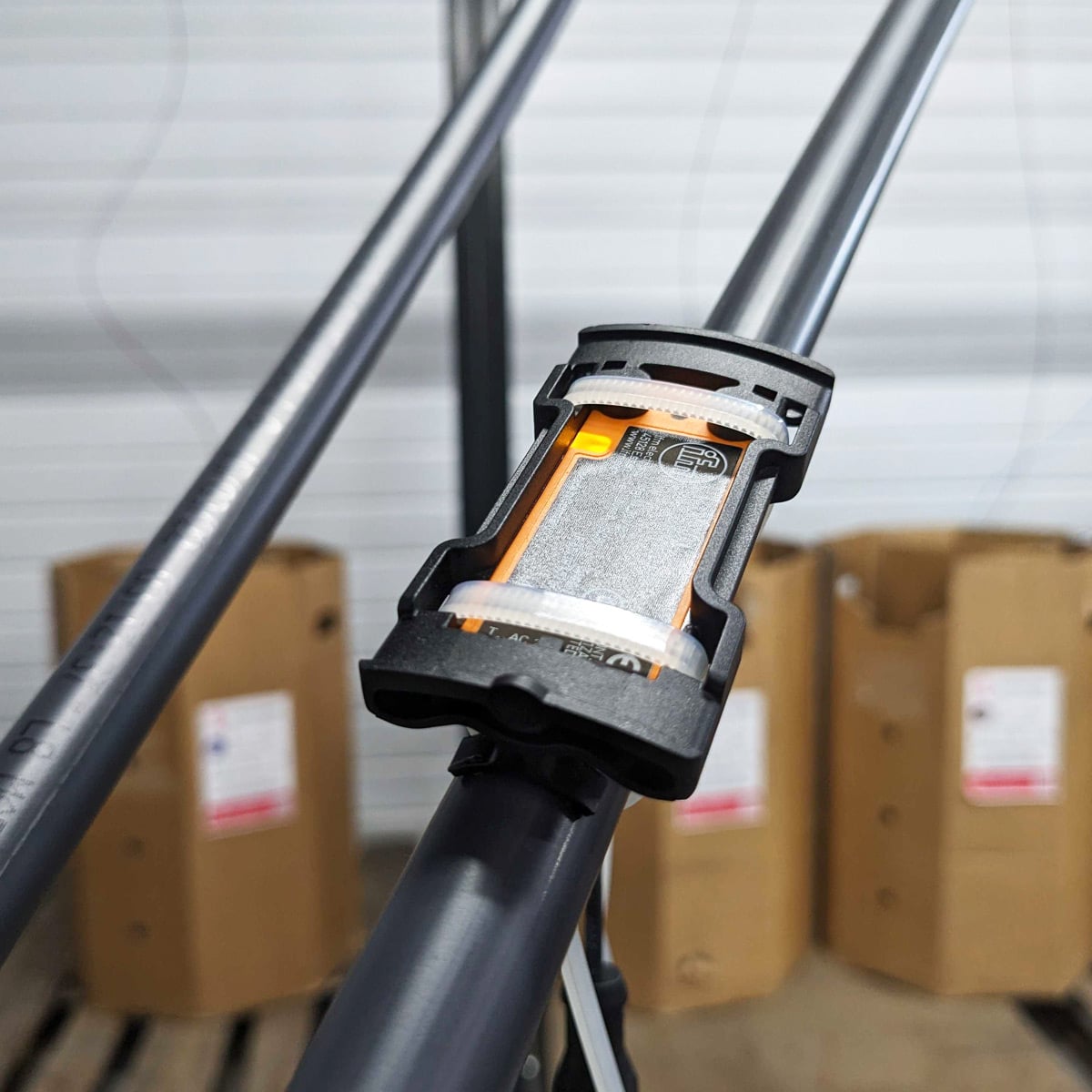

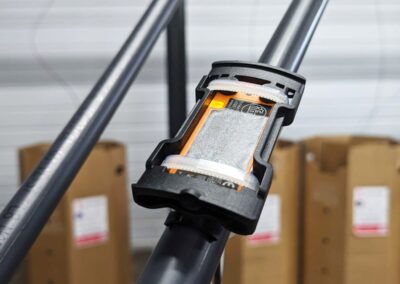

wire end sensor that automatically alerts the technician when the reel runs out.
Operating procedure / Operation
| 1 | Import the file generated by the engineering office into the machine |
| 2 | Position the wires and conduit in the dedicated locations |
| 3 | Start the automatic production cycle |
| 4 | Cut the wires manually |
| 5 | Retrieve the produced conduit and apply the corresponding label |
