Semi-automatic sheath pre-wiring machine for electrical wiring harnesses
Pre-wiring Machine
Automatic pre-wiring machine for electrical wiring harnesses
MS03

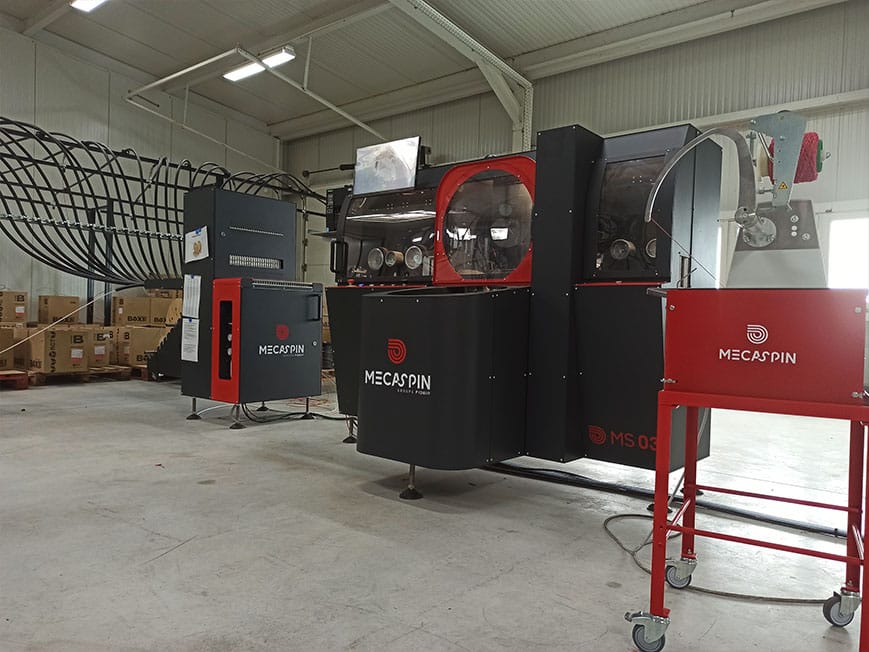

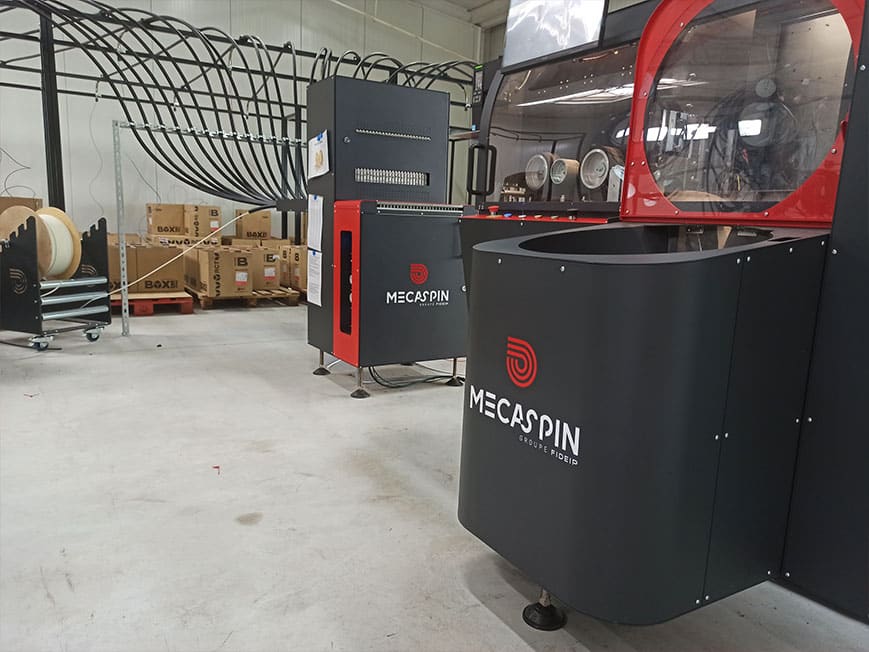

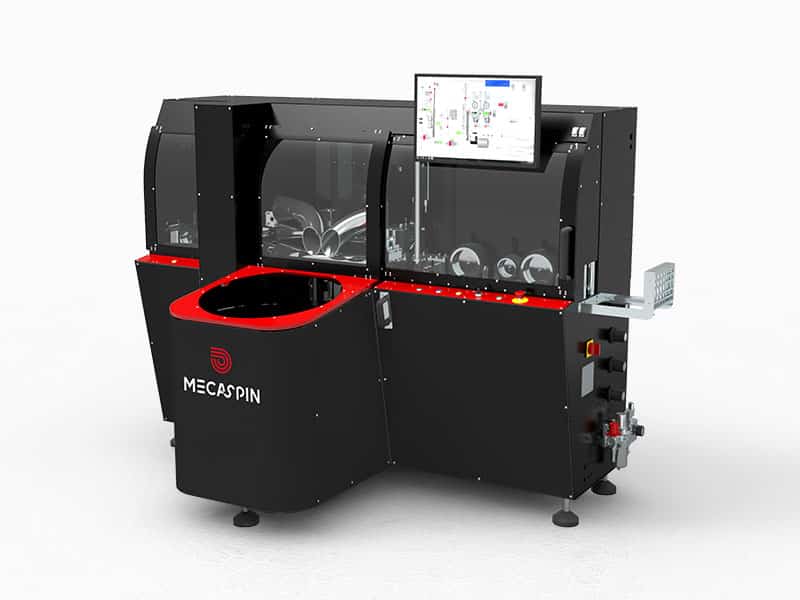

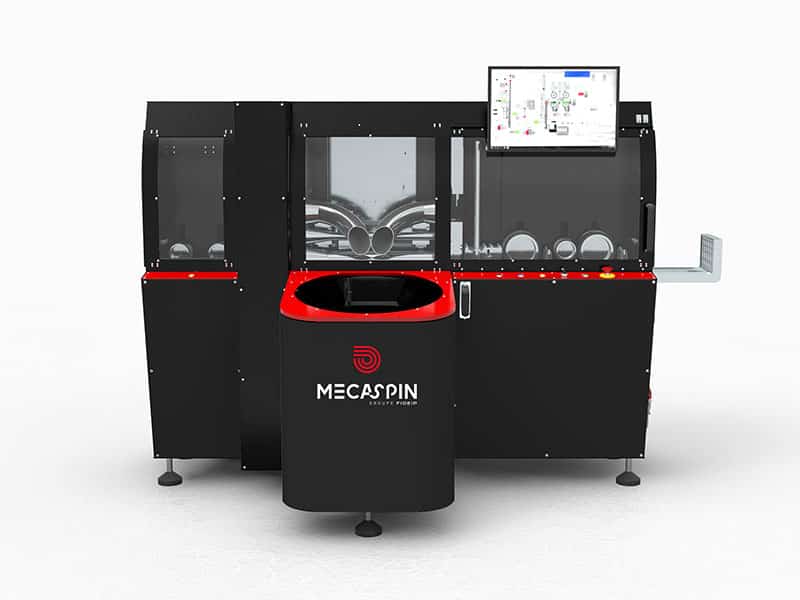

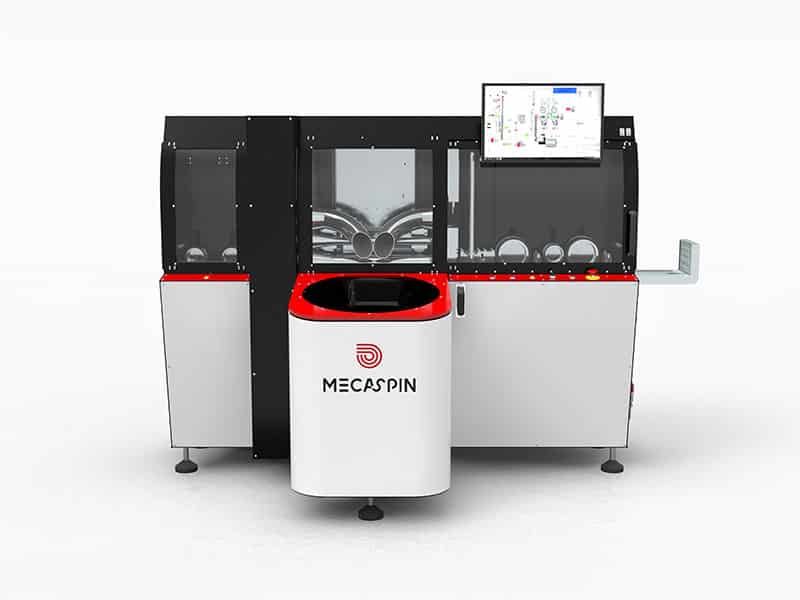

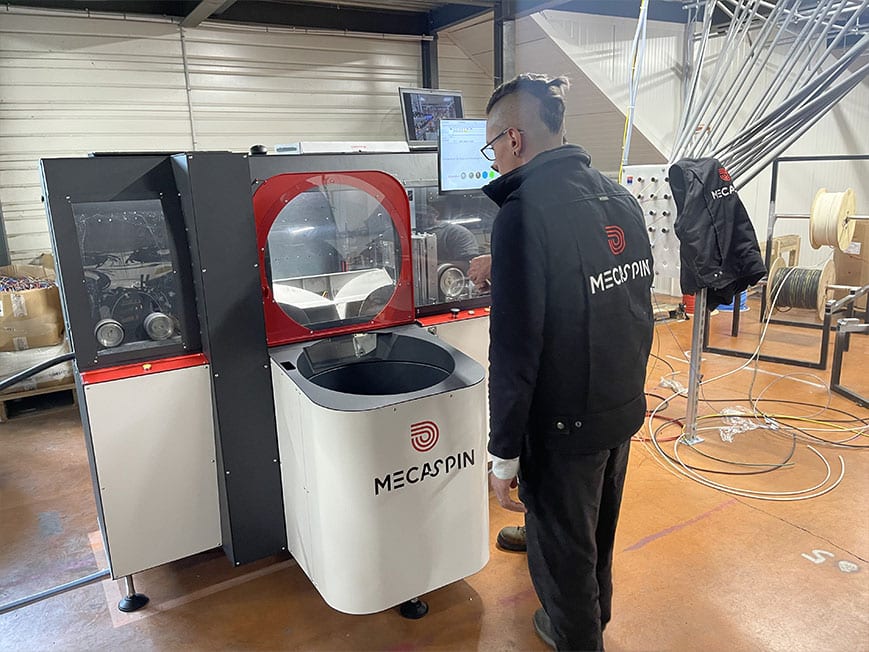

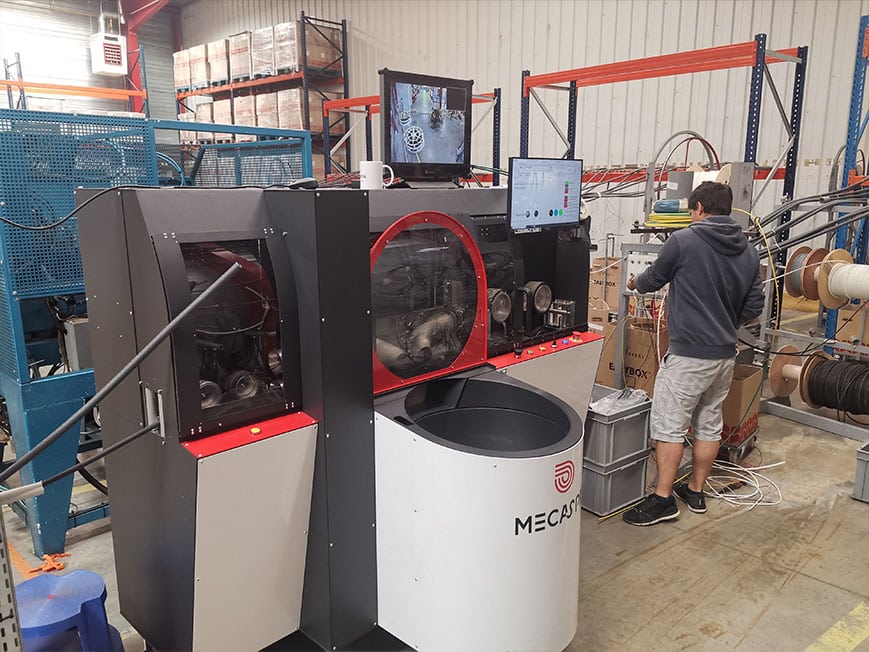

MS03 is an automatic, autonomous industrial pre-wiring machine for inserting electrical wires, cutting conduit to length, labelling and coiling pre-wired conduit.
- Up to 120 conduits/h
- Up to 99.9% accuracy
Are you looking for similar equipment?
Features

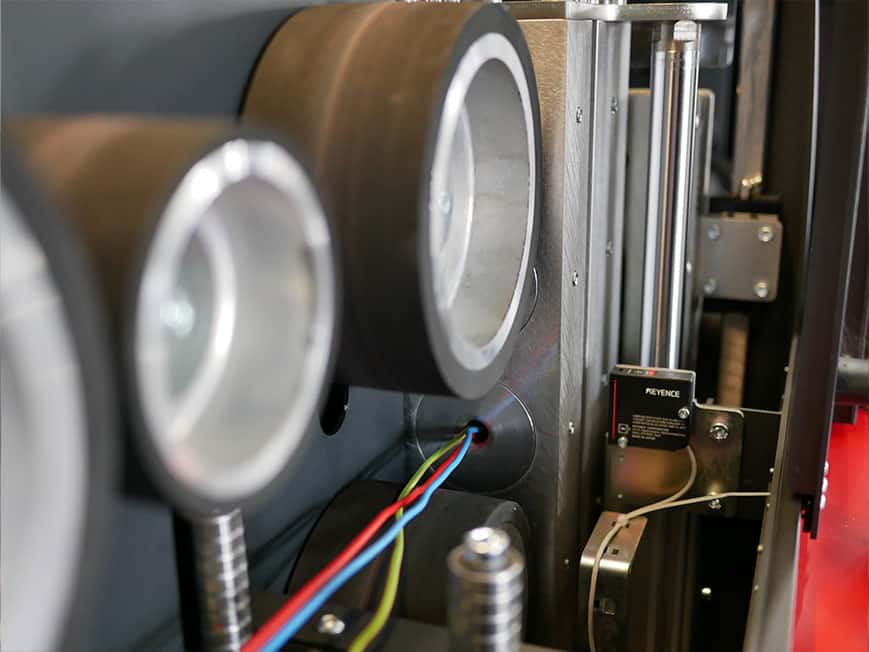

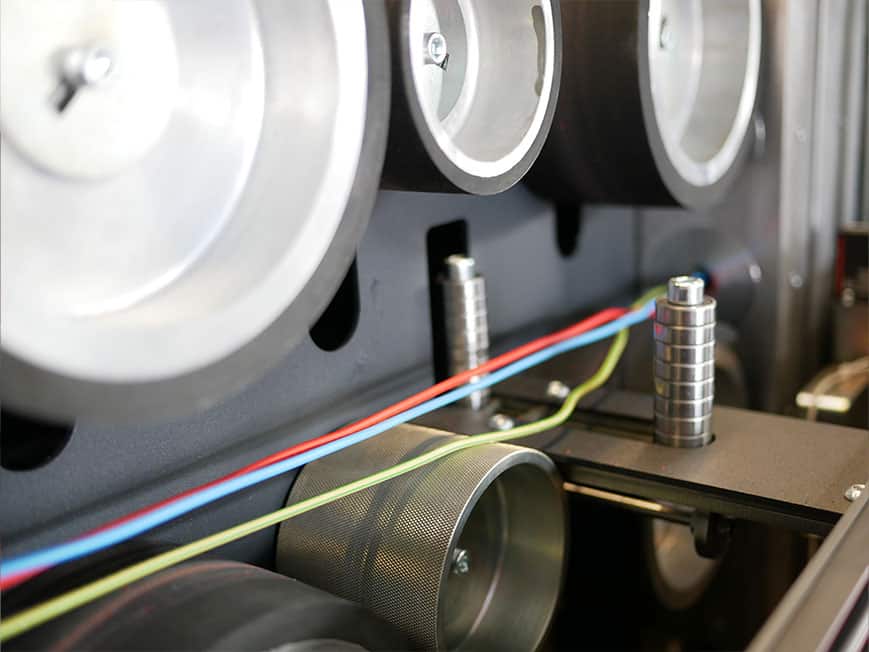

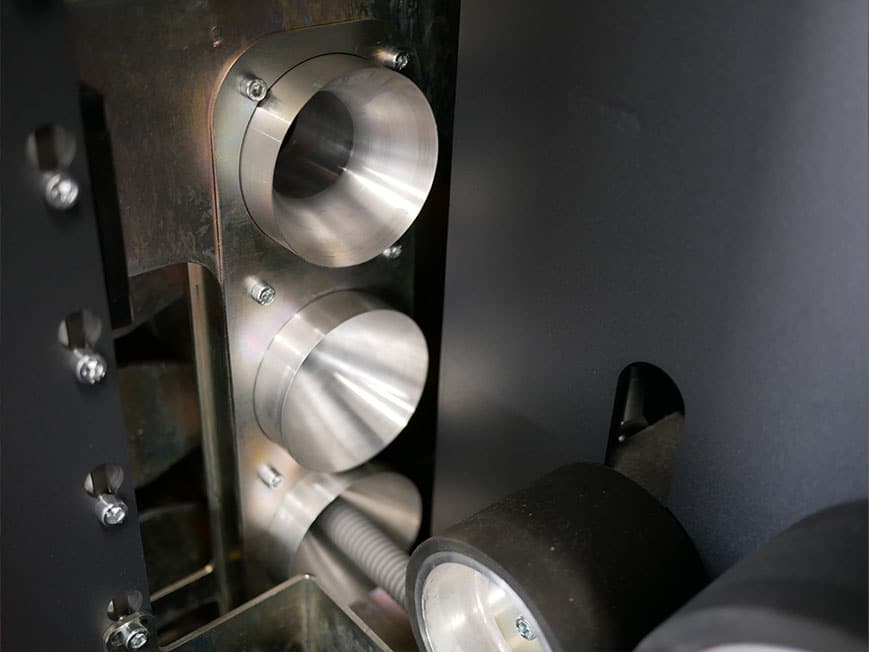

The MS03 is an automated industrial pre-wiring machine for inserting electrical wires, cutting to length, cutting, printing labels and coiling pre-wired conduit. It can also cut cables and tubes to length. The machine is primarily intended for producing electrical, hydraulic and tertiary wiring harnesses. It supports professionals with conduit pre-wiring and cable cutting for cross-sections up to 2 x 35 mm² and lengths up to 70 m.

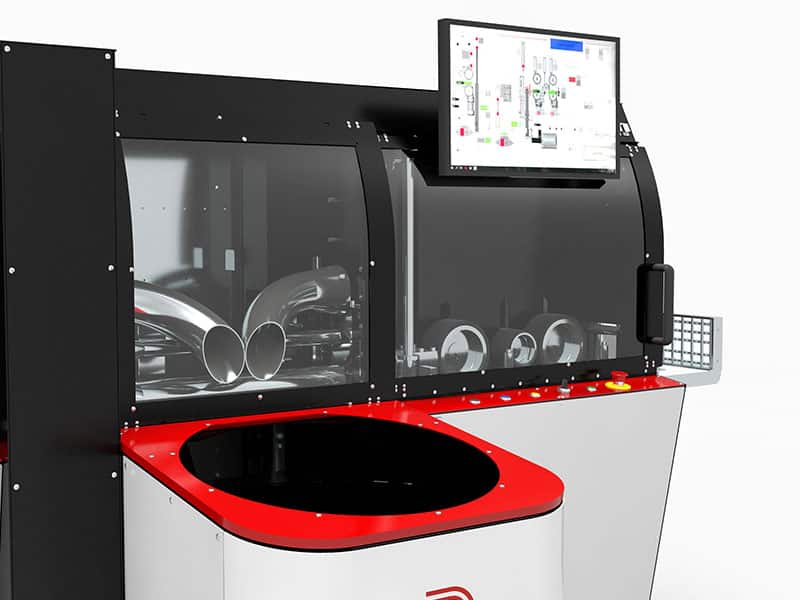

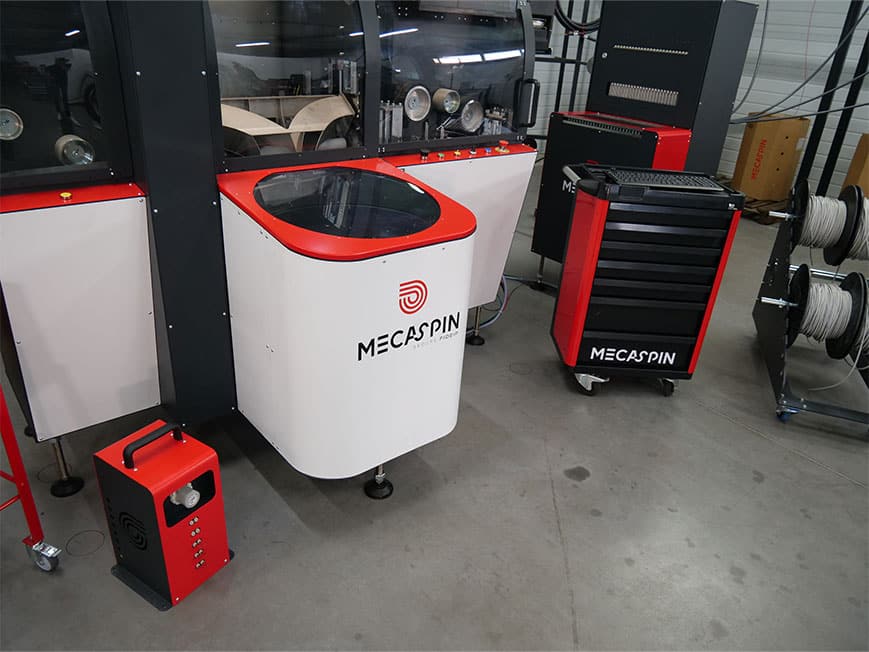

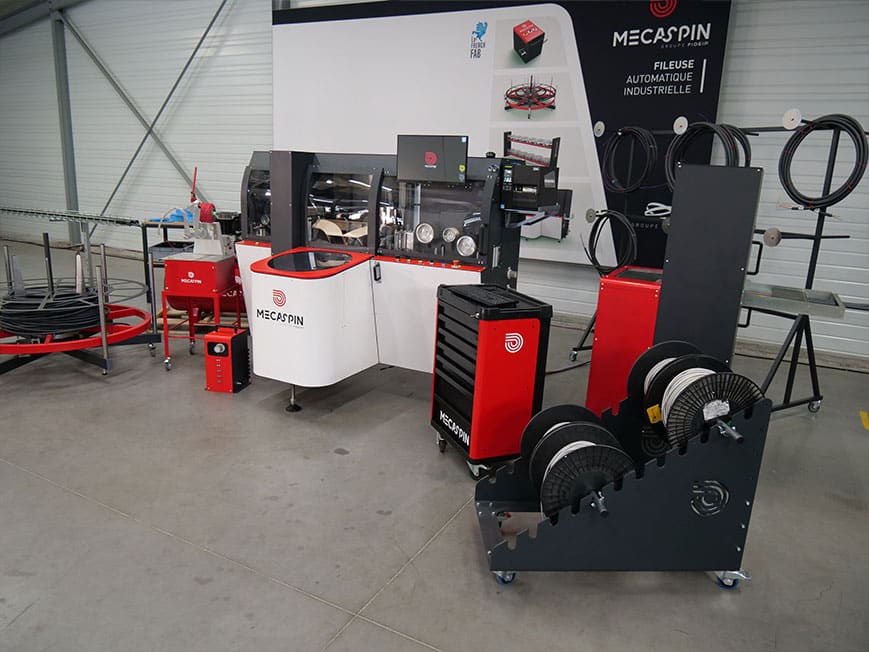

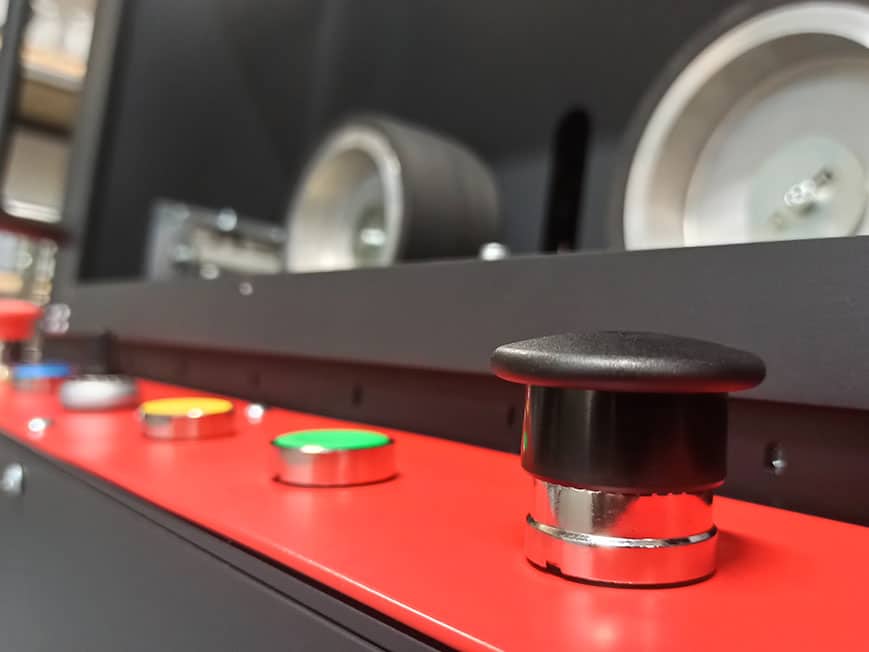

Built on a 200 x 130 x 160 cm welded frame, the MS03 is compact and fits workshops of all sizes. Its integrated touchscreen and HMI make operation fast and intuitive.
The machine is automatic: tools are changed automatically, production files can be read automatically, the covers open when a wire change is required, and the label is printed directly at the end of the cycle.
Technical specifications
| Specifications | MS 03 |
|---|---|
| Maximum pre-wiring length | 1 - 70 m |
| Cable and tube cutting length | 1 - 200 m |
| Production rate | 70 to 120 conduits/h |
| Length measurement accuracy | 99.9% |
| Cutting capacity | Up to 40 metres maximum |
| Conduit diameters | Up to 70 mm² (aluminium or copper) |

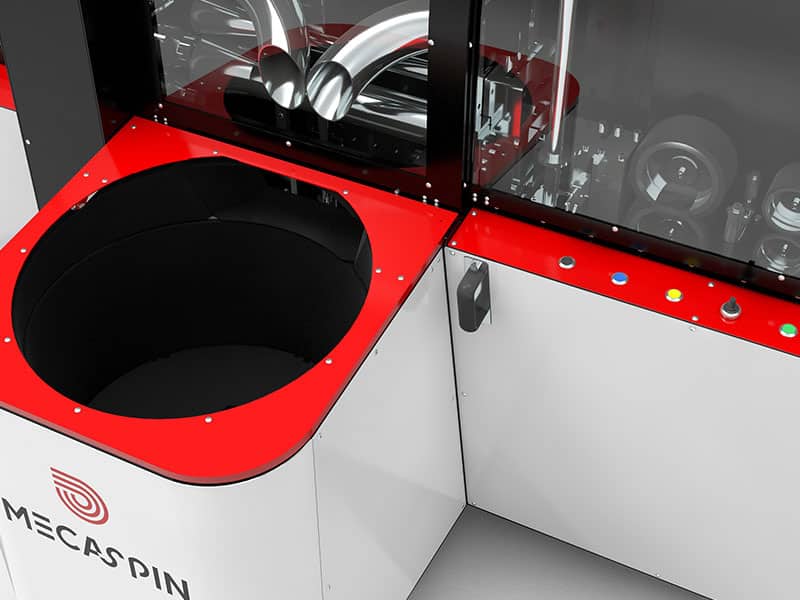

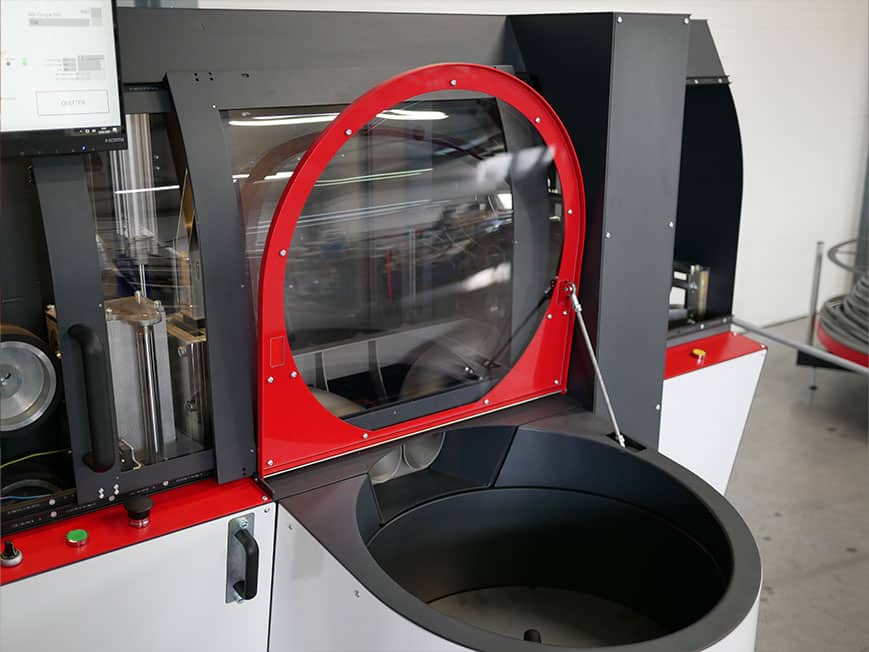

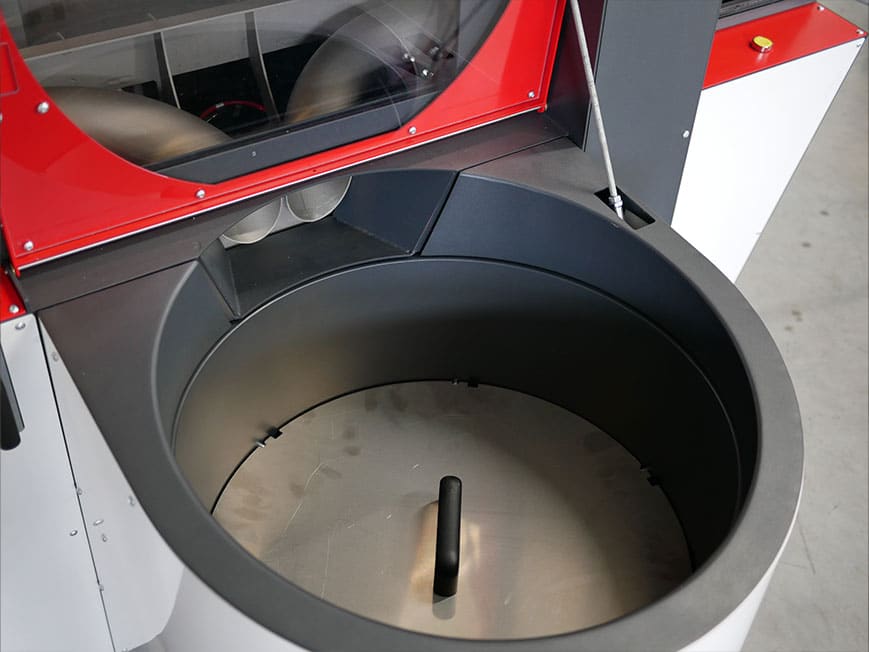

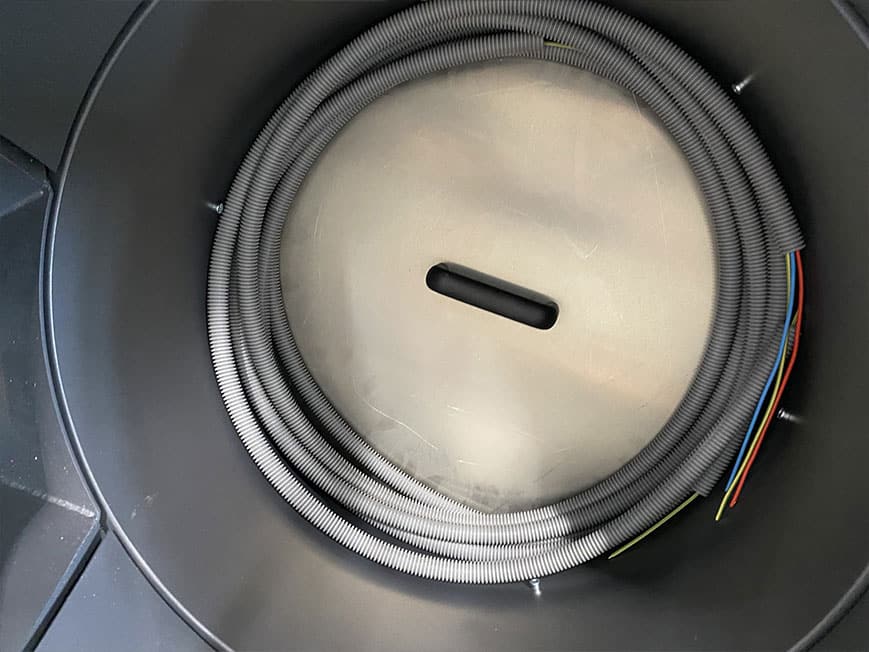

| Coiling diameter | 55 or 70 cm diameter bowl |
| Software compatibility | SchemBat, DESA, AutoCAD, Excel … |
| Integrated operating modes | Conduit pre-wiring, cable cutting, conduit and PEX cutting |
| Designed for wiring harness production | Electrical, hydraulic and tertiary |
| Overall dimensions (L x W x H) | 200 x 130 x 160 |
| Printer | TSC MB 240 T - Peel-off option |
| Conduit label format | Reinforced HDPE 137 x 30 cm |
| HMI screen | 1920 x 1080 pixel touchscreen - Widescreen 16:9 |
| Power supply | 230 Vac |
| Pneumatic supply | 7 bar - 100 L/min |
| Rated power | 3.5 kW |
| Rated current | 16 A |
| Average cycle consumption | 850 Wh |
| Average standby consumption | 140 Wh |
Key benefits
01. Electrical, hydraulic and tertiary wiring harnesses
Suitable for conduit pre-wiring and for cutting cable, PEX tubing and empty conduit. Handles cable cross-sections up to 2 × 35 mm² and conduit diameters up to 50 mm. Supports pre-wiring lengths up to 70 m.
02. Up to 120 conduits/h
Suitable for conduit pre-wiring and for cutting cable, PEX tubing and empty conduit. Handles cable cross-sections up to 2 × 35 mm² and conduit diameters up to 50 mm. Supports pre-wiring lengths up to 70 m.
03. Up to 99.9% accuracy
Suitable for conduit pre-wiring and for cutting cable, PEX tubing and empty conduit. Handles cable cross-sections up to 2 × 35 mm² and conduit diameters up to 50 mm. Supports pre-wiring lengths up to 70 m.
Are you interested in our equipment?
Contact us!
Options
options-direction-change-ms

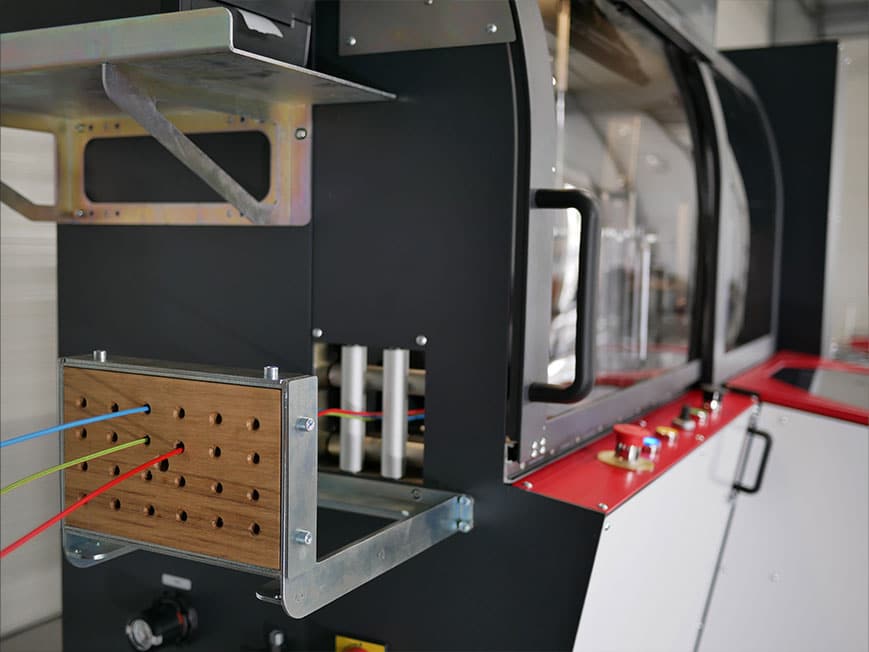

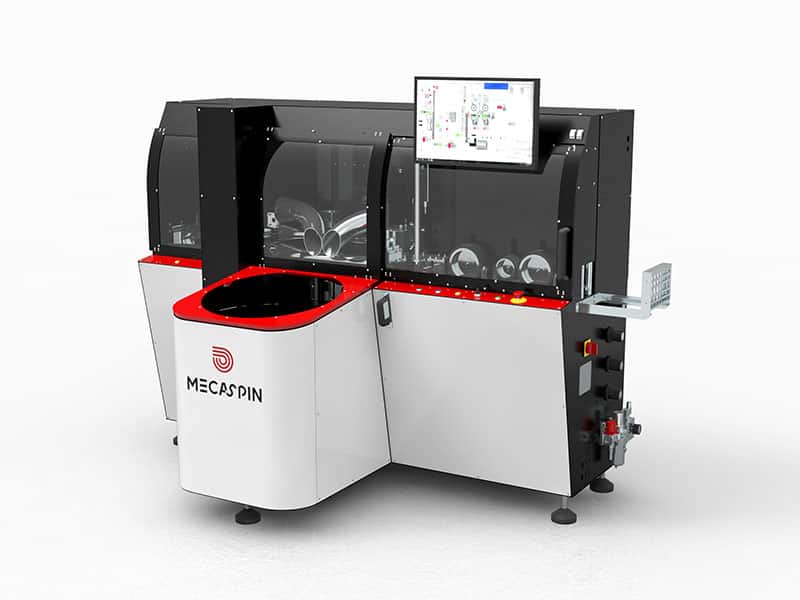

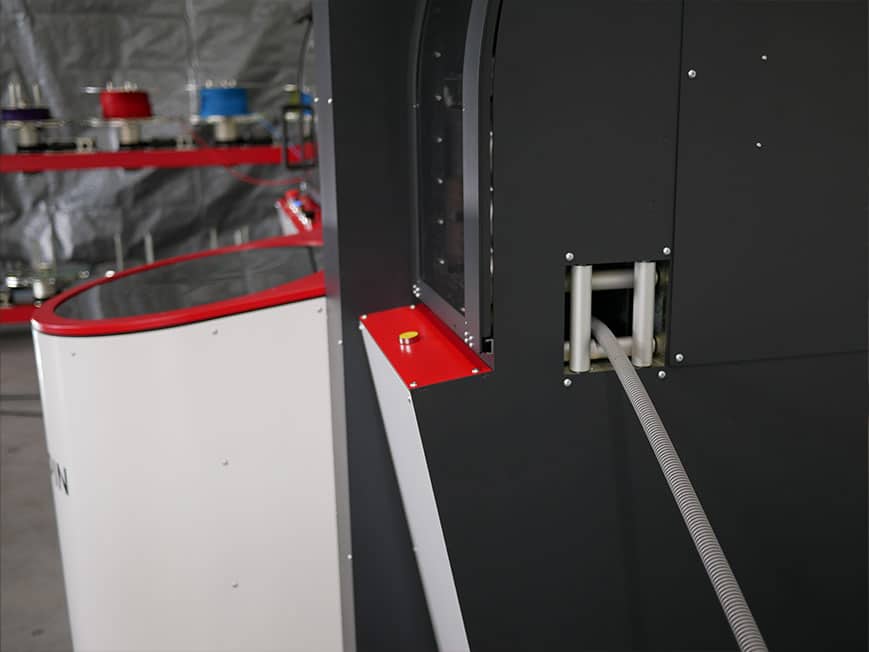

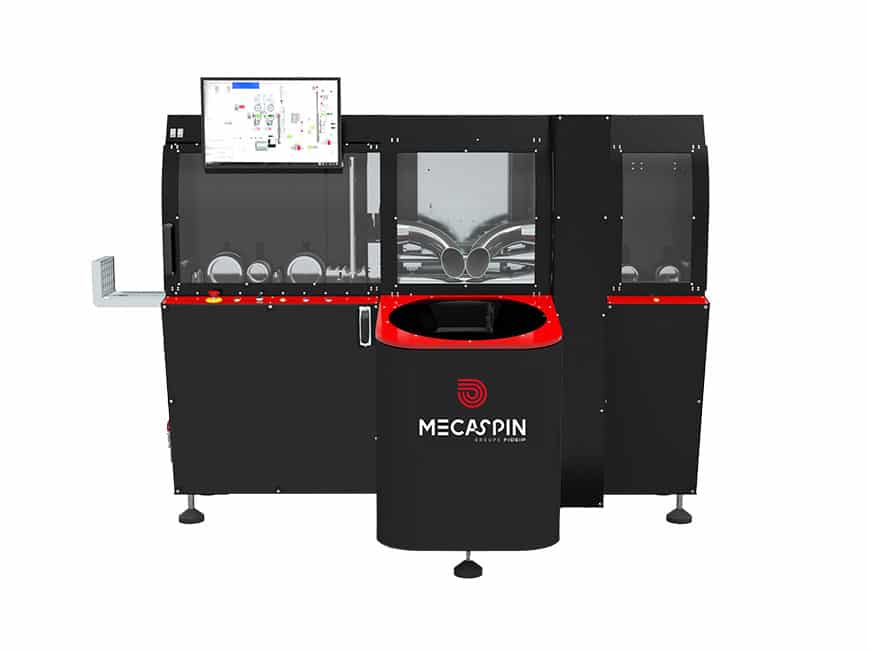

The cable, wire and sheath inlets can be positioned on either the right or left. We configure your machine to suit your installation.

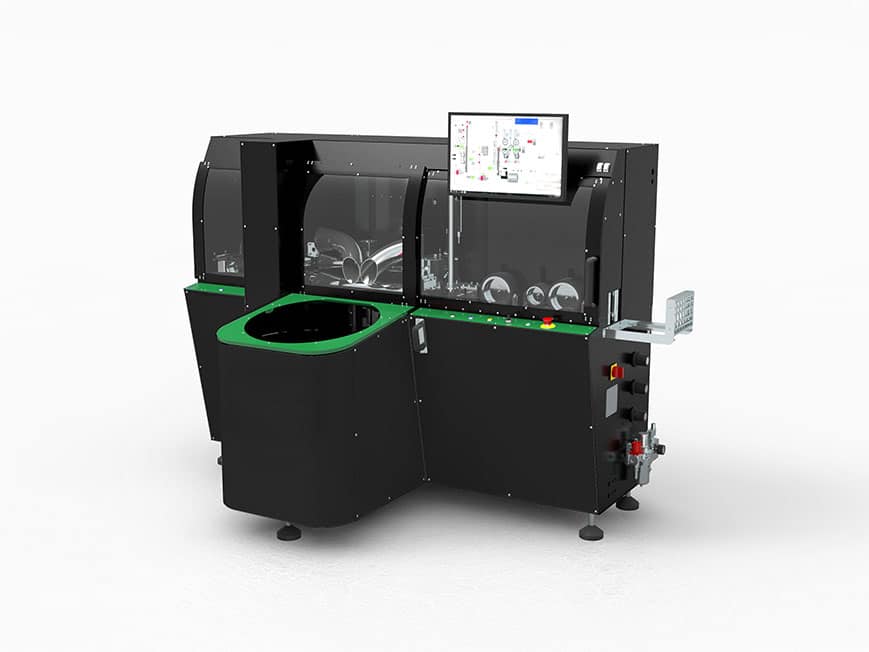

options-color-customization
machine customised in your logo colours
options-large-format-coiling-bowl
option for a coiling bowl up to 70 cm in diameter

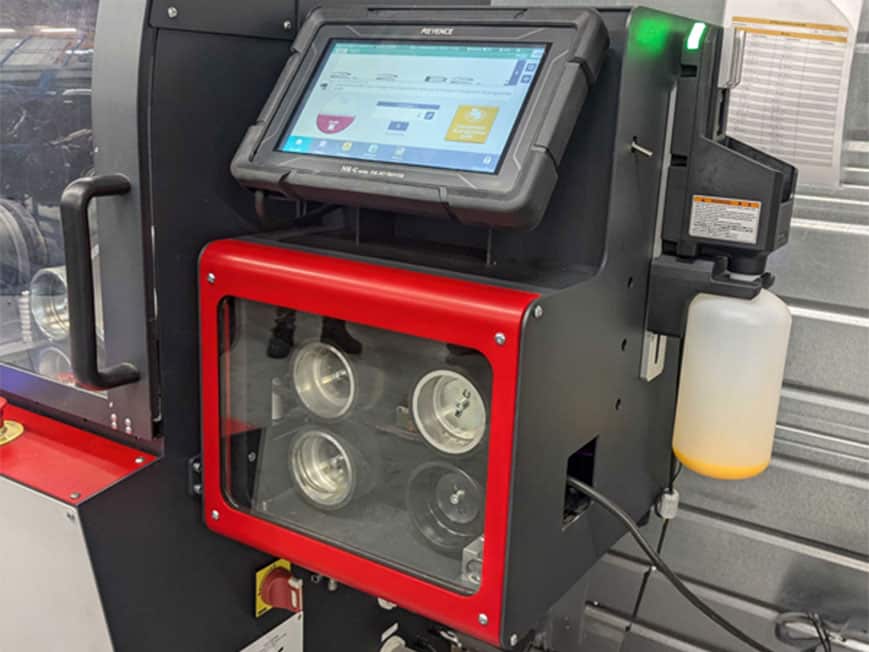

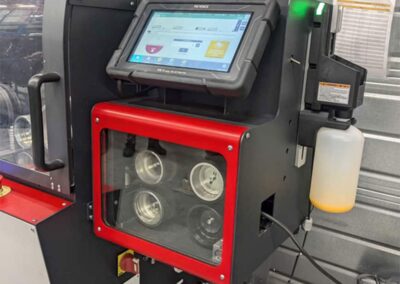

options-inkjet-printing
Cable inkjet-printing module equipped with an industrial printer, touchscreen and automatic cleaning system.

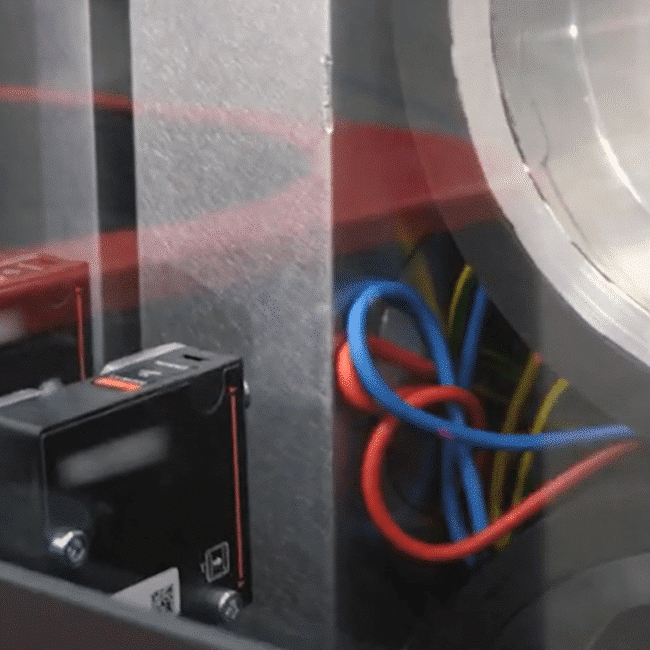

wire-jam-650650

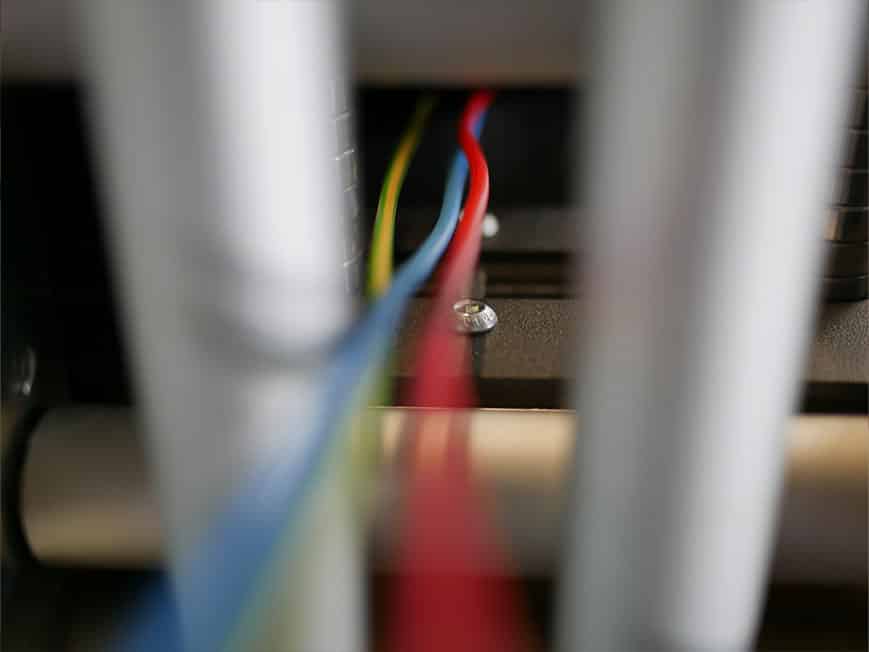

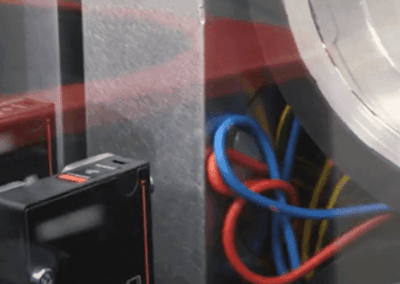

The MS03 anti-jam system detects the onset of wire jams. It continuously monitors for wire jamming at the nozzle inlets. As soon as a jam is detected, the machine stops the pre-wiring operation and blocks the cycle. Its very fast response time prevents the jam from worsening and helps avoid further complications. The touchscreen then guides the operator through repositioning the electrical wires and restarting the cycle. Within a few seconds, the machine is ready to resume production.
Operating procedure / Operation
| 1 | Import the file generated by the engineering office into the machine |
| 2 | Position the wires and conduit in the dedicated locations |
| 3 | Start the automatic production cycle |

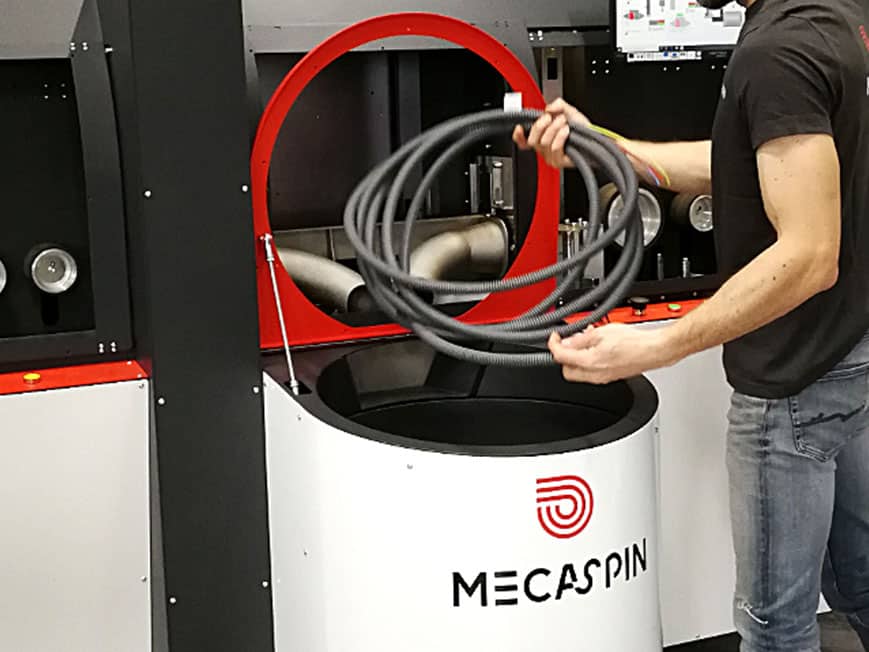

| 4 | Retrieve the produced conduit and apply the corresponding label |
| 5 | The machine automatically moves to the next conduit according to the loaded file |
| 6 | Change the wires manually if the conduit composition changes |
