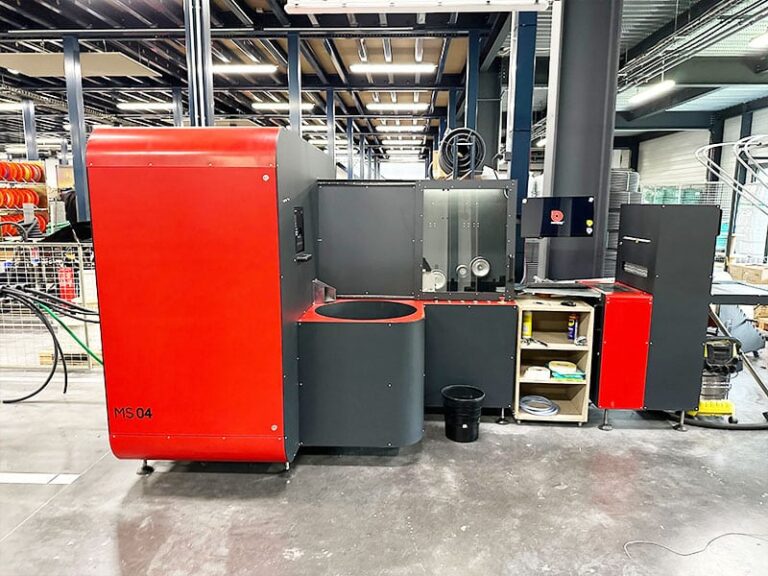

MS04
MS04 is an automatic, modular sheath pre-wiring machine for inserting electrical wires, cutting to length, cutting, labelling and coiling pre-wired conduit, as well as cutting to length and coiling sleeved PEX pipe.
- Up to 124 conduits/h
- 24 wire types available
Are you looking for similar equipment?
Features

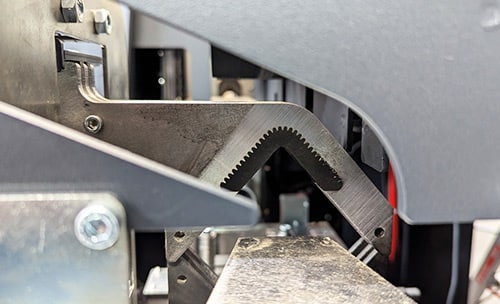

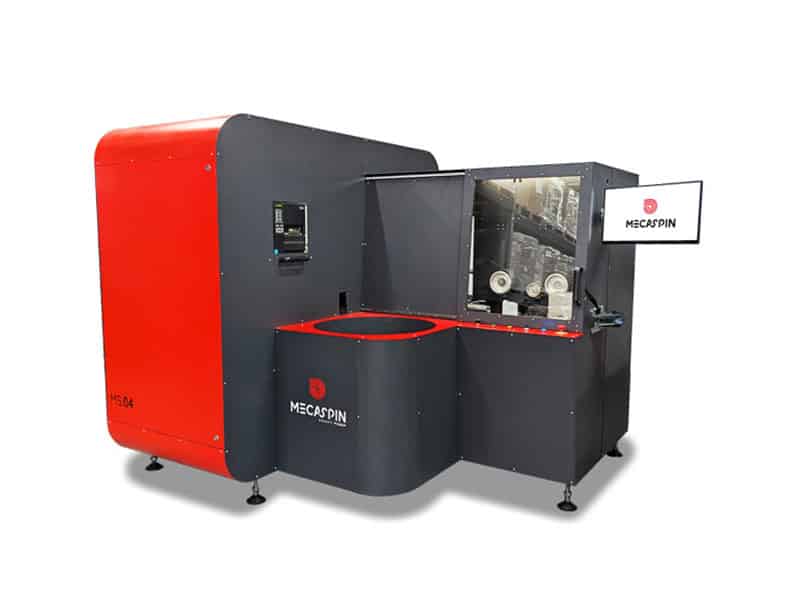

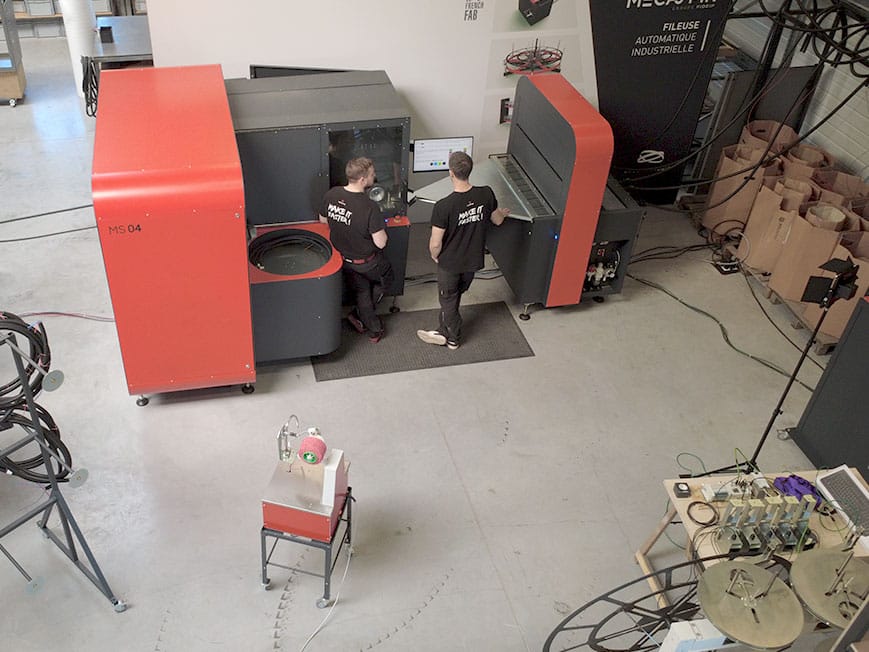

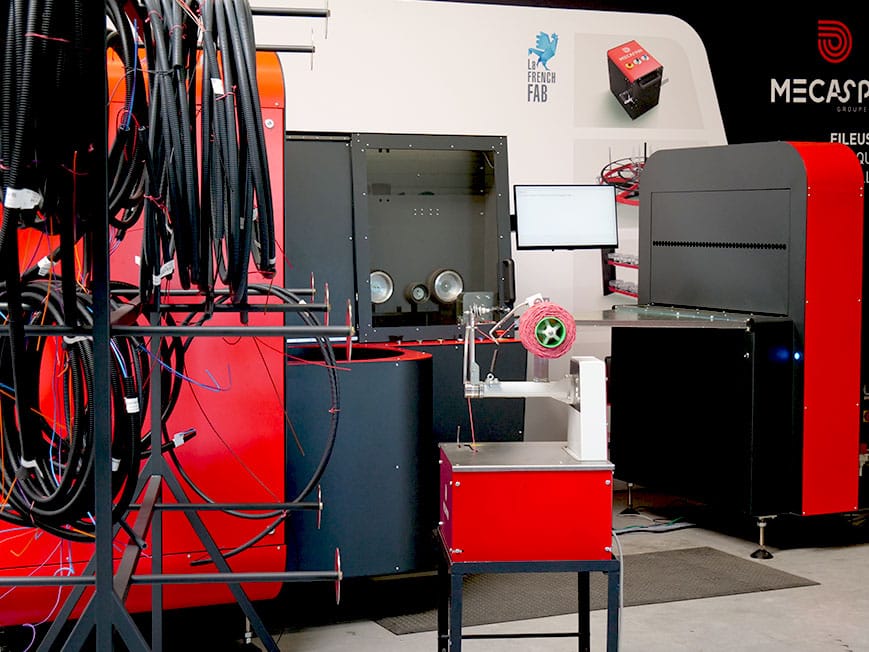

The MS04 is an automatic, industrial and modular sheath pre-wiring machine. It inserts and measures electrical wires, cuts wires and conduit, prints labels and coils pre-wired conduit. It can also prepare and coil sleeved PEX pipe.
The machine accepts conduit diameters of 16, 20, 25, 32 and 40 mm and features a magazine providing access to 24 wire types. It reaches a maximum pre-wiring and coiling speed of 3 m/s, with pre-wiring lengths up to 40 metres.
Its 19-inch touchscreen is used to control settings and production cycles. The MS04 can operate from files generated by specialist software, Excel files or manual input. Optional sorting, shuttle and labelling modules increase the level of automation according to workshop requirements.
Technical specifications
| Specification | MS 04 |
|---|---|
| Operations performed | Wire insertion, measurement, wire and conduit cutting, labelling, coiling and sleeved PEX pipe cutting |
| Power supply | 220 V AC single-phase |
| Pneumatic supply | 7 bar |

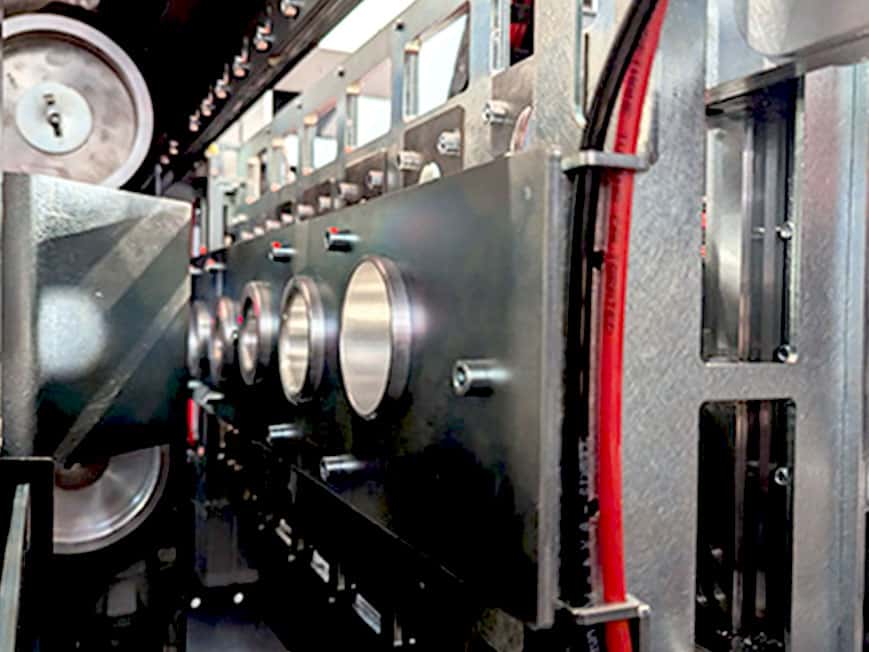

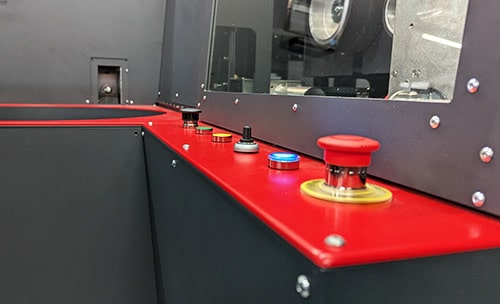

| Operator interface | 19-inch touchscreen with confirmation button |
| Footprint (L × D × H) | 2,500 × 1,500 × 1,800 mm |
| Permissible conduit diameters | 16, 20, 25, 32 and 40 mm |
| Sleeved PEX pipe diameters | 12, 16, 20 and 25 mm |
| Wire types available for quick access | 24 wire types |
| Maximum pre-wiring length | 40 m |
| Maximum straight-line length | 30 m for 16 to 40 mm C.E.I. conduit |

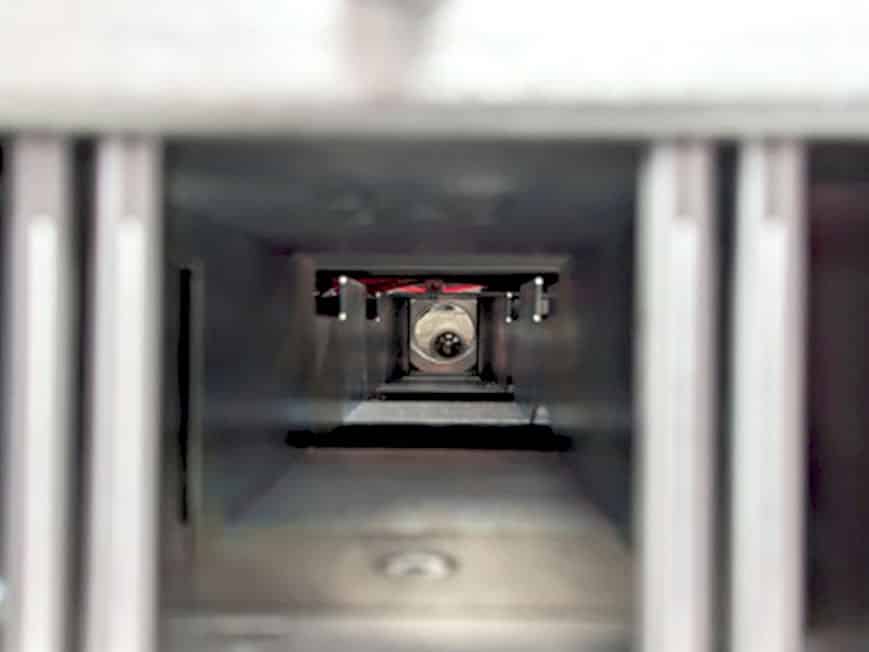

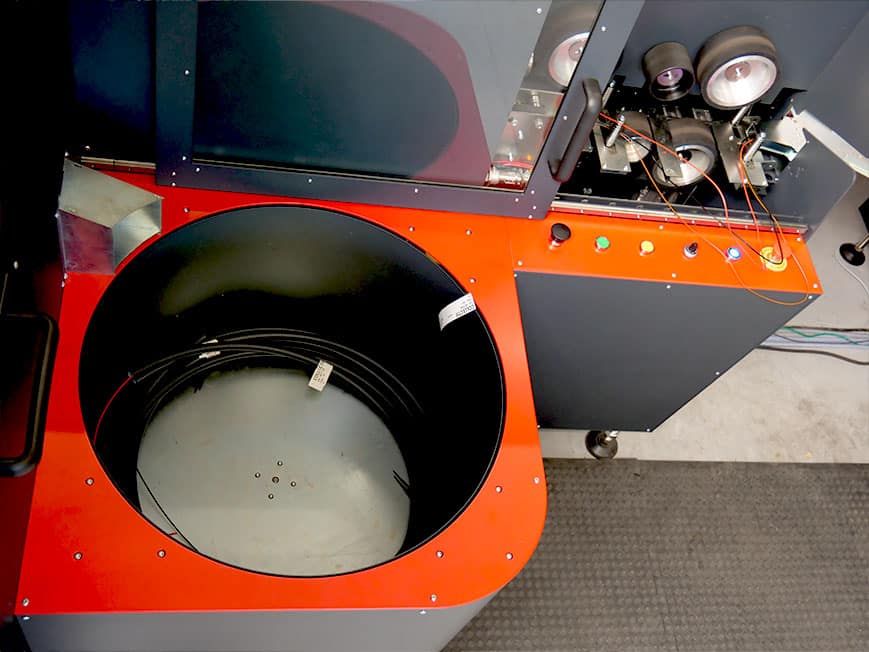

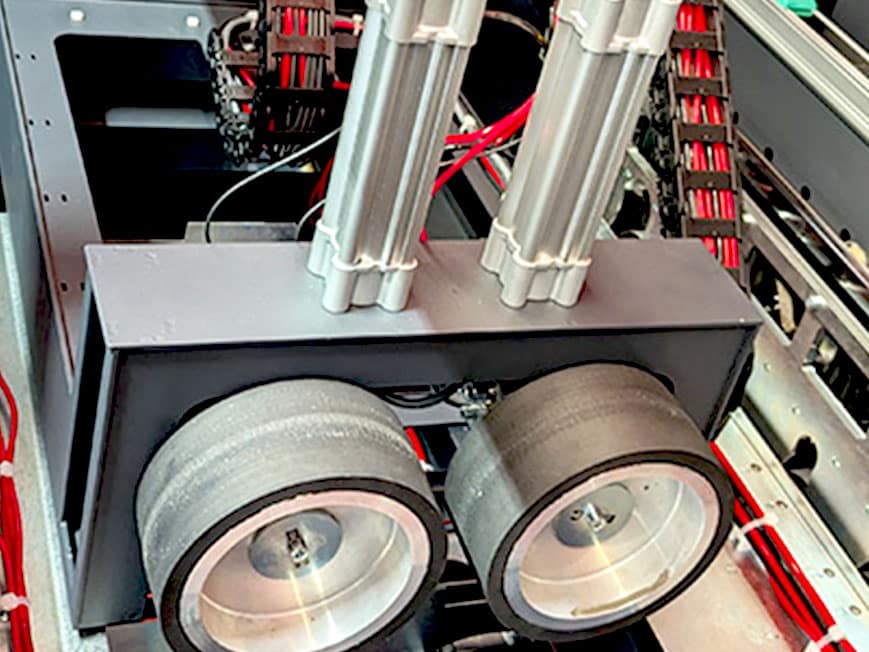

| Maximum coiling length | 40 m, for a coil with an outside diameter of 550 mm |
| Coiling bowl diameter | 550 mm |
| Maximum total wire cutting cross-section | 70 mm², aluminium or copper |
| Maximum pre-wiring speed | 3 m/s |
| Maximum coiling speed | 3 m/s |
| Maximum pulling torque | 23 Nm |
| Cutting action time | Less than 3 seconds for wires and conduit |
| Stated accuracy | ±80 mm in the general description; ±100 mm in the measurement section, for lengths below 40 m |
| Reference cycle time | 29 seconds for a 20 m conduit, 20 mm diameter, with 20.2 m of wire, under optimum conditions |
| Calculated theoretical output | Approximately 124 conduits per hour, excluding handling and production contingencies |
| Drive system | 750 W geared motors with variable-speed drive; synchronised pre-wiring and coiling |
| Import and control | SchemBat, Desa, M-ElecDWG, Excel and manual mode; Sifial integration is also mentioned |
| Labelling | Automatic printing; manual application in the described configuration or automatic with the ETI module |
| Floor anchoring | Not required; vibrations are stated to be very low |
Key benefits
01. A largely automated production process

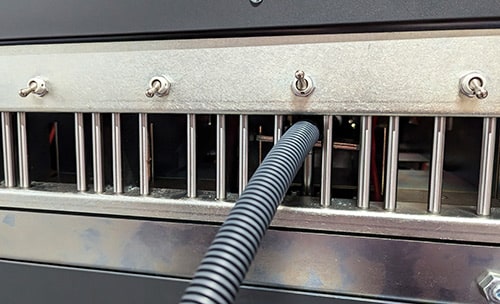

The MS04 combines pre-wiring, measurement, cutting, labelling and coiling on a single machine. It reduces repetitive handling and makes it easier to process conduits in sequence.
02. A production rate suited to industrial output
With a pre-wiring speed of up to 3 m/s, the MS04 meets the needs of workshops handling large volumes. Under the optimum conditions stated by Mecaspin, the reference cycle for a 20-metre conduit is approximately 29 seconds, giving a theoretical output close to 124 conduits per hour.
03. A modular and scalable configuration
The machine handles 24 wire types and five conduit diameters. It can be supplemented with a wire sorter, shuttle or automatic labelling module and interfaced with different production-preparation software packages.
Are you interested in our equipment?
Contact us!
Options
options-inkjet-marking
label-marking
options-automatic-coiling-bowl-bottom-lift
automatic coiling-bowl bottom lift
options-large-format-coiling-bowl

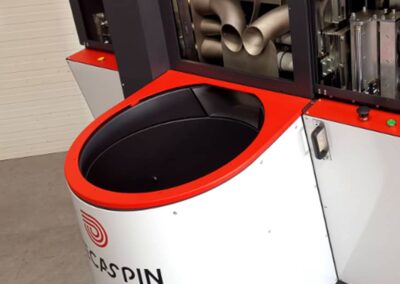

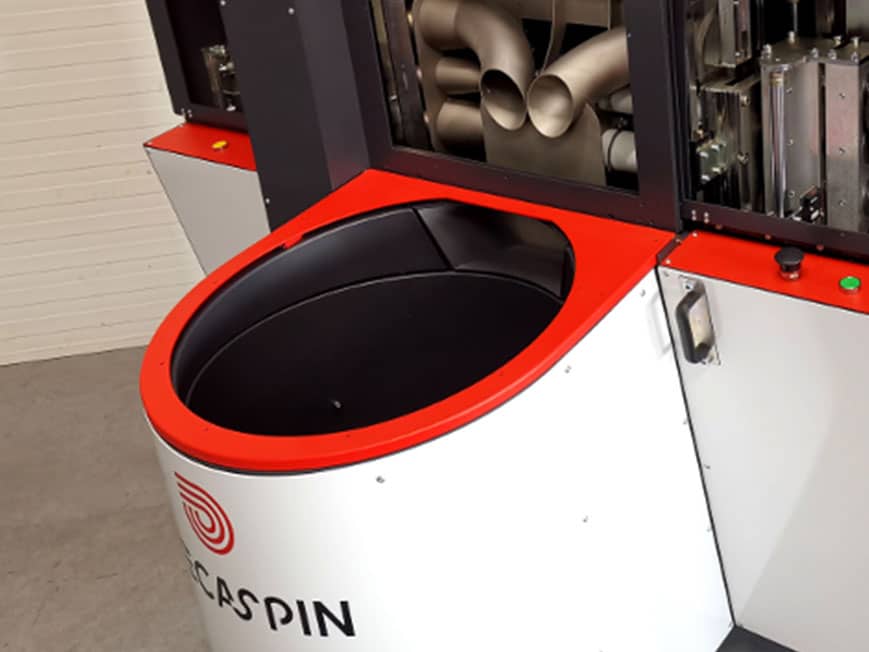

option for a coiling bowl up to 70 cm in diameter
