All you need to know about the wire dispenser

Par @Nicolas NAULET

What is a wire dispenser?

A wire dispenser is a device used to unwind and store wire, particularly electrical wire. It keeps wires clean and organised while making them easier to use around a central axis.

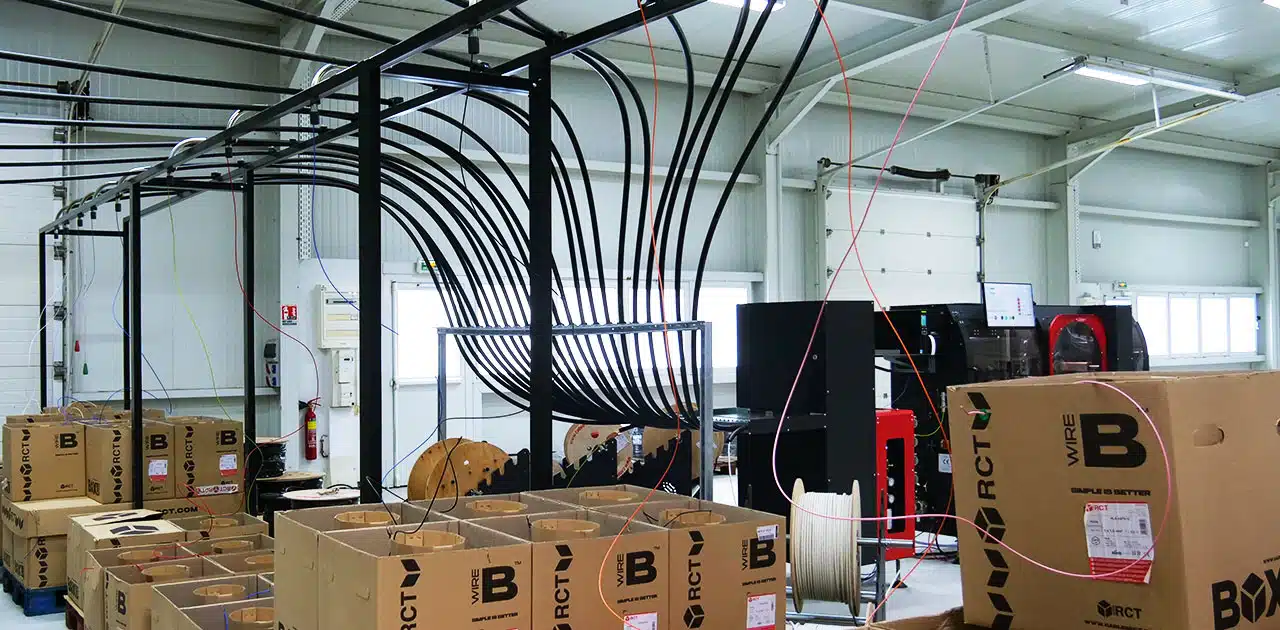

In the electrical sector, a wire dispenser, also known as an unwinder, is an installation used to feed a machine with the wires required for production. The spools are stored in a dedicated area to ensure regular and controlled unwinding.

What are the advantages of an automatic wire dispenser?

Wire dispensers can bring many advantages to your workshop. From practicality to productivity, there are many benefits to this type of installation.

Time savings and improved quality

  • Reduced loading and unloading time:
    an automatic wire dispenser unwinds and stores wire or cable quickly and efficiently. It therefore reduces the time required to replace spools manually.
  • Better unwinding quality:
    an automatic dispenser unwinds wire or cable precisely and consistently, reducing the risk of tangling and damage.
  • Better unwinding of electrical wires:
    the wire is fed consistently by the unwinder, making it easier to use and limiting damage that can be caused by manual feeding.
  • Reduced risk of injury:
    the automatic dispenser limits manual spool loading, unloading and handling operations. It therefore helps reduce physical effort and the risk of musculoskeletal disorders.
  • Better organisation:
    the dispenser stores spools so that they remain easily accessible and ready for use. This reduces the time spent looking for references and managing stock.

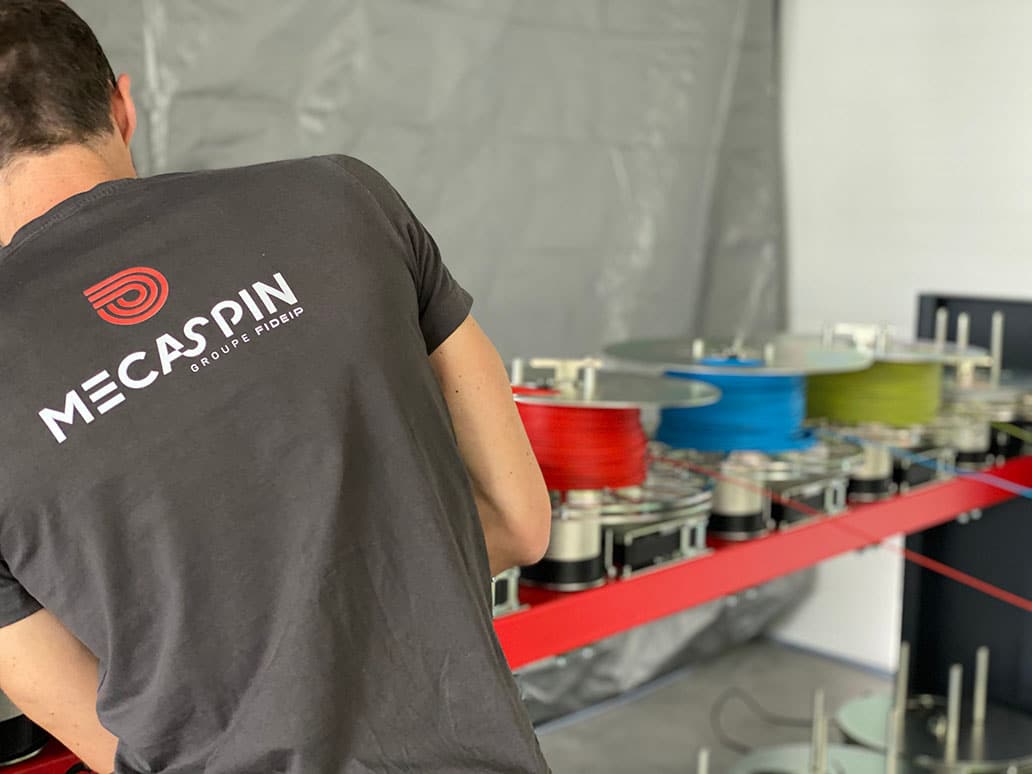

automatic-wire-dispenser

Improving workshop ergonomics

  • Dedicated storage space and optimised organisation:
    the wire dispenser stores spools compactly and in an organised way. It makes consumables easier to access and improves workspace management. Clearly organised spools also make it easier to anticipate replenishment.
  • Adaptability to different spools:
    the automatic dispenser can accommodate several spool formats. This flexibility makes it easier to use references from different ranges and reduces loading and unloading times.
  • Storage capacity of up to 12 spools:
    the capacity of the unwinding bench limits frequent changeovers and downtime. It also keeps several references available to respond quickly to the requirements of each production run.
  • A layout adaptable to the workshop:
    depending on its configuration, the wire dispenser can be installed on a shelf, on legs or on a support suited to the organisation of your production area.

Technical characteristics of a wire dispenser

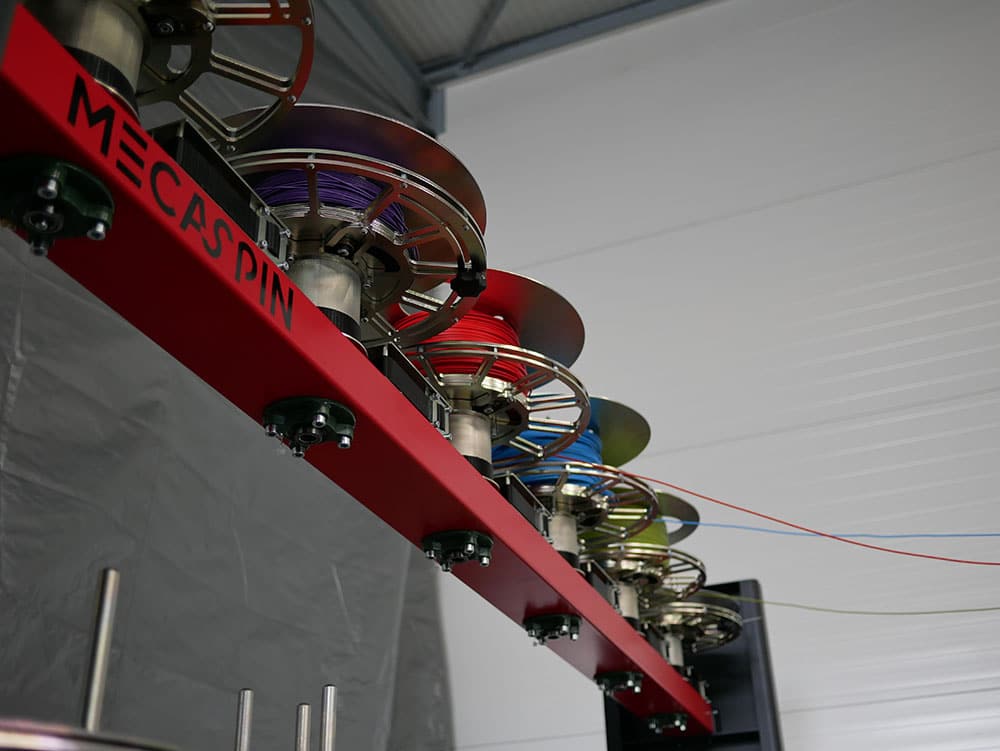

The wire dispenser is automatic and can be pneumatically connected to the machine. It is compatible with all Mecaspin pre-wiring machines. The associated unwinding bench consists of 12 reels, arranged on two racks of six reels.

The dispenser provides consistent wire unwinding towards the pre-wiring machine, at speeds of up to 3 m/s. Its braking mechanism controls spool rotation and maintains constant tension.

The rapid braking system works with reels weighing up to 30 kg. Using a cylinder and strap, it limits system wear and helps make machine feeding safer.

Spool replacement is quick. One-handed adjustment, provided by three fingers for internal diameters of 80 to 150 mm, ensures precise spool centring.

Interested? Contact us!
