Cable Drum Unwinding

Cable drum unwinding roller

Roll Run

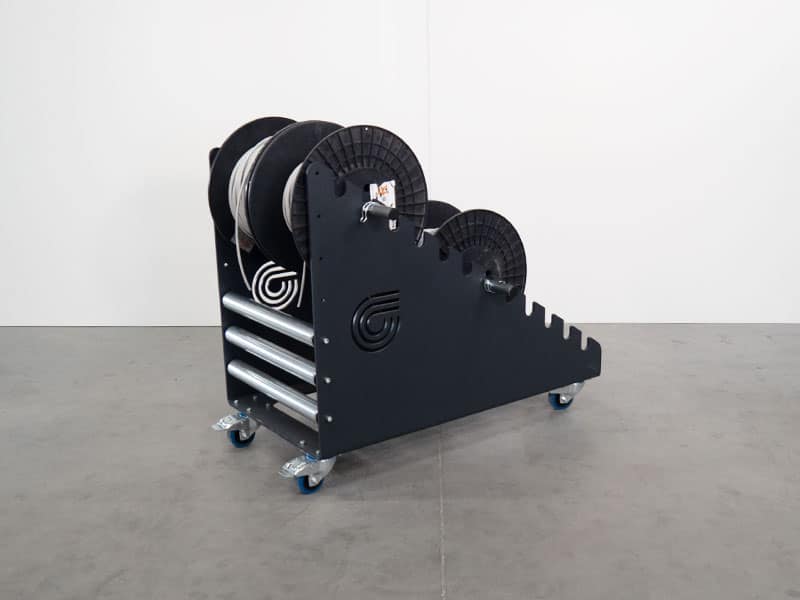

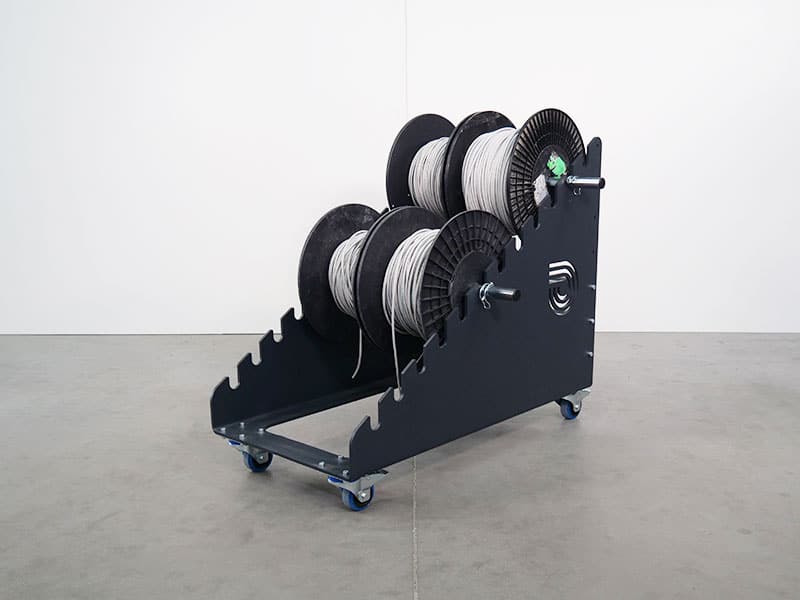

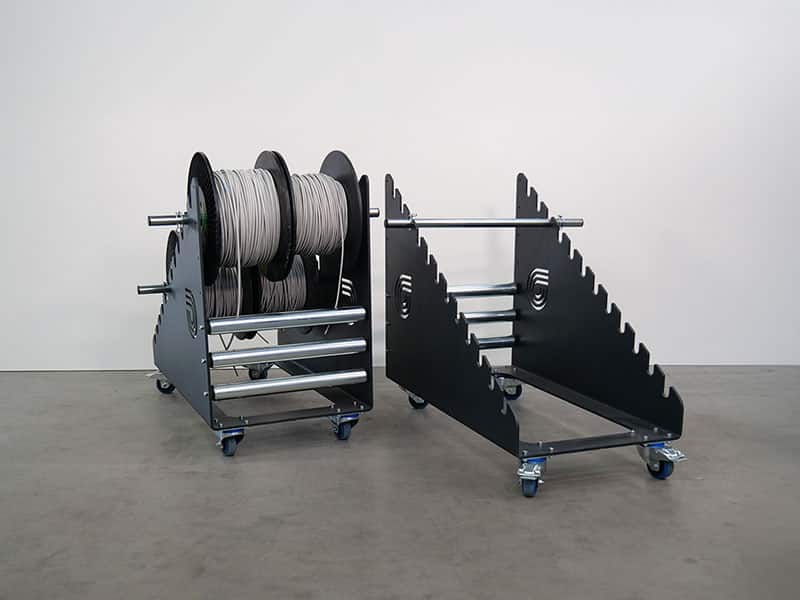

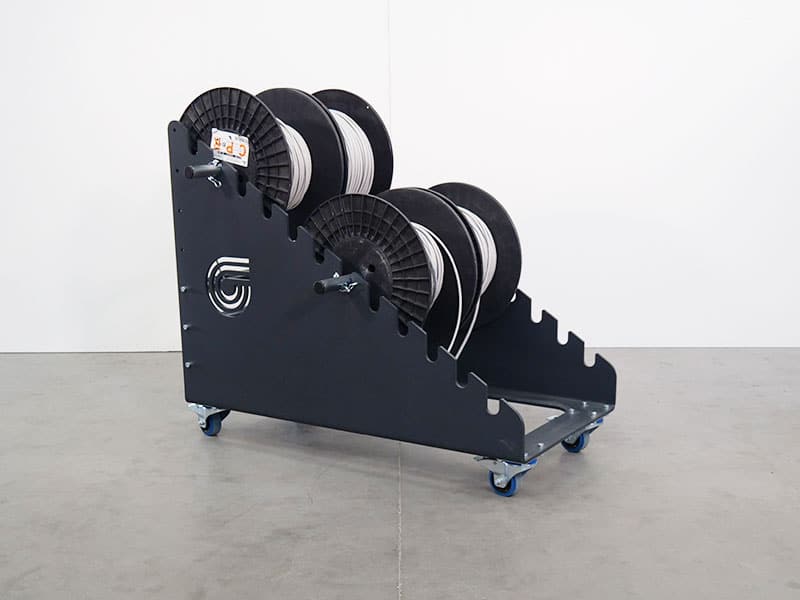

MECASPIN ROLLRUN mobile trolleys are cable-drum unwinders built on a welded structure and designed to optimise cable flow in the workshop. The drums are mounted on height-adjustable rotating shafts and secured with pins. Unwinding takes place from the rear, from top to bottom, via drive rollers, eliminating jerks and the risk of tipping. Suitable for heavy loads, the structure is mobile on industrial castors with reinforced brakes to withstand pulling forces. The range is available in 4 models providing from 6 to 24 storage positions.

Are you looking for similar equipment?

Contact us

Technical specifications

Roll Run trolleys are cable-drum unwinder trolleys designed to optimise the storage, movement and unwinding of cables in the workshop. They feed production workstations in a smooth, safe and organised way while eliminating drums on the floor and unnecessary handling.

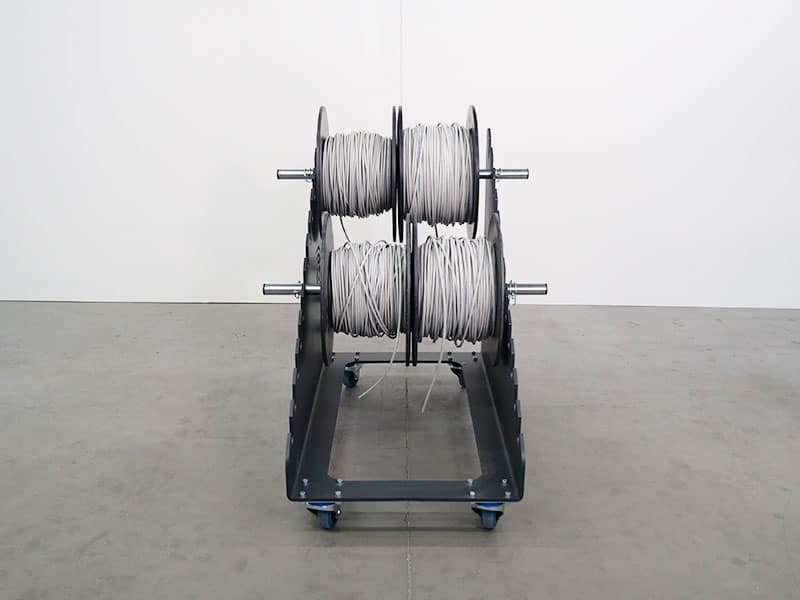

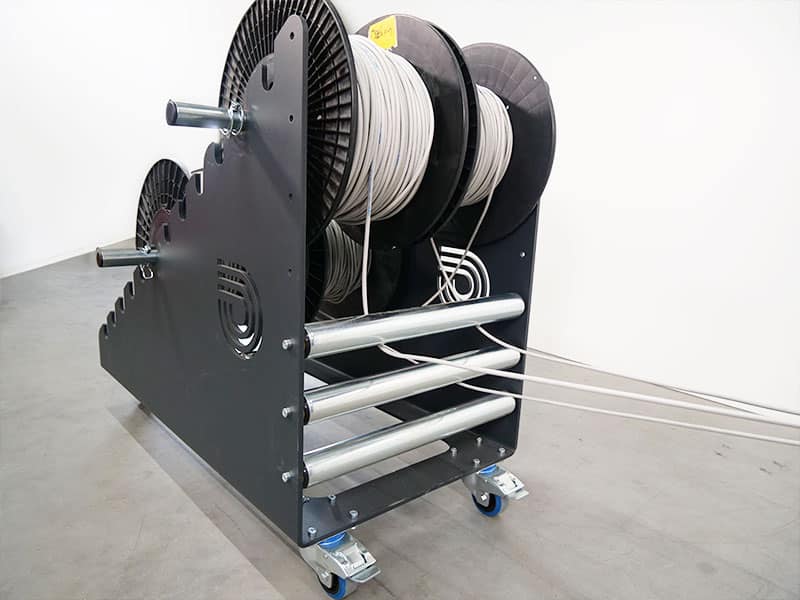

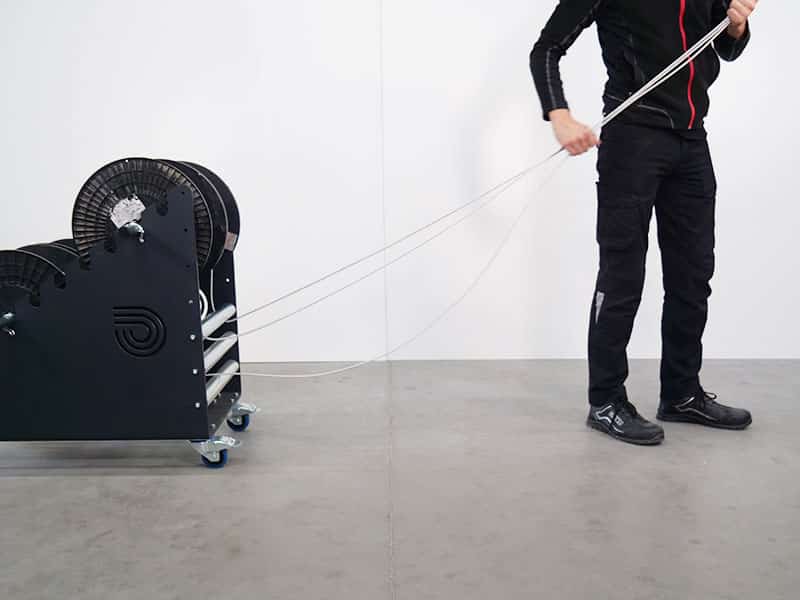

The drums are mounted on rotating shafts built into the frame and fitted with safety pins to ensure that they remain securely in place. Rear rotating rollers provide smooth, jerk-free unwinding, reducing effort and the risk of tangling.

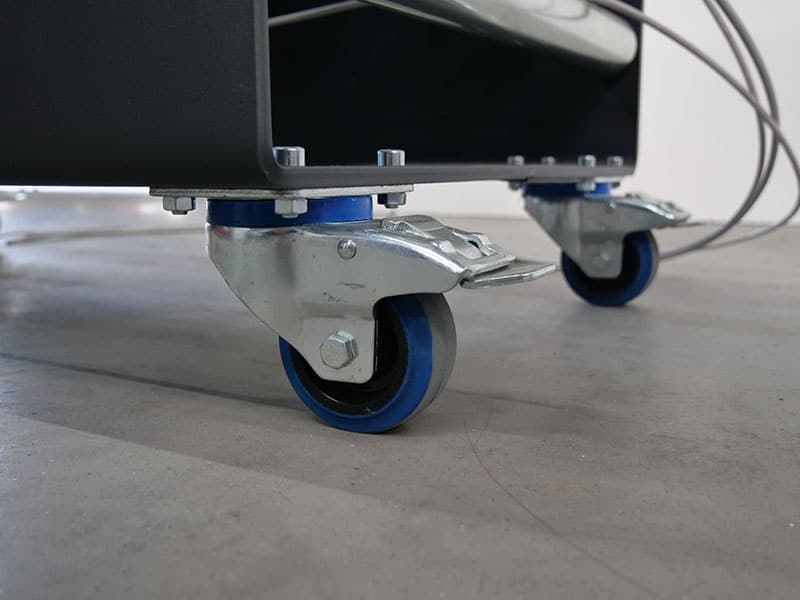

Thanks to their robust welded structure and industrial castors with brakes, the trolleys can easily be moved as close as possible to the workstations, ensuring a continuous, controlled material flow.

Range comparison

Reference	Dimensions	Number of positions	Load
Roll Run 70	60 × 70 × 60	6	200 kg
Roll Run 90	60 × 90 × 80	12	300 kg
Roll Run 130	90 × 130 × 110	18	450 kg
Roll Run 160	120 × 160 × 140	24	600 kg

Key benefits

01. Robust

Supports up to 600 kg, making it possible to handle heavy cable drums effortlessly

02. Adaptable

Suitable for sheath pre-wiring and for cutting cable, PEX and empty sheaths. Handles different cable cross-sections up to 2 × 35 mm² and sheath diameters up to 50 mm. Allows pre-wiring lengths of up to 70 m
