Manual punching machine for plastic boxes
CAP 263

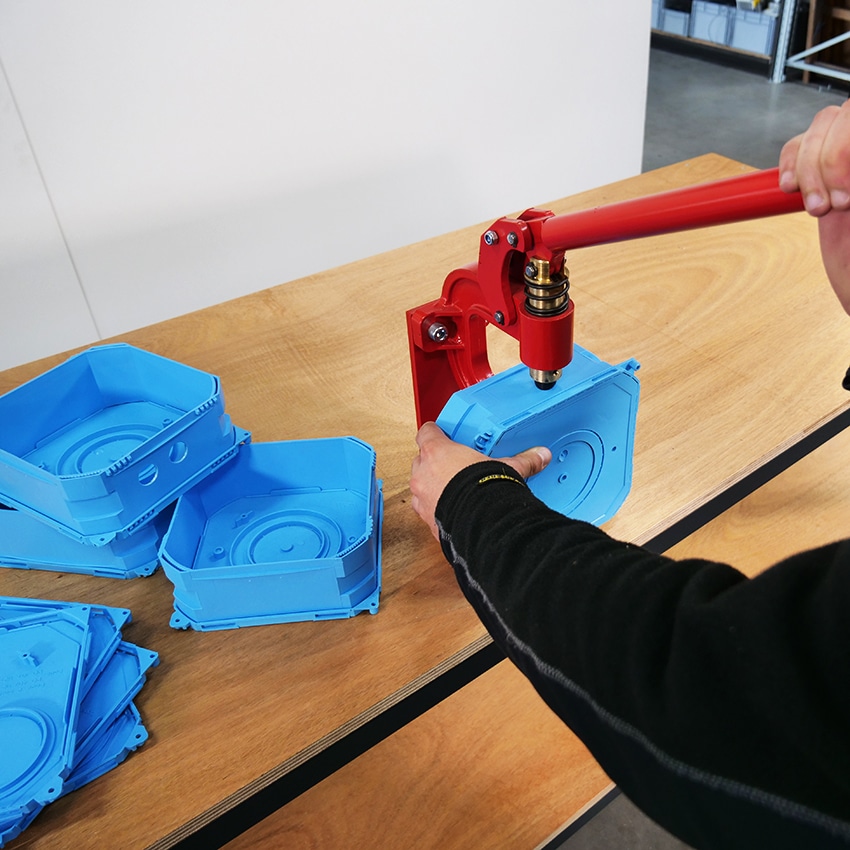

This manual punching machine is specially designed to punch junction boxes with ease. Suitable for ICTA sheath feed-throughs, it guarantees a clean, precise and burr-free hole while considerably reducing preparation time in the workshop or on site. It is compatible with 16, 20 and 25 mm punches. Compact, robust and ergonomic, it is used with one hand for comfortable operation while the other hand holds the box. Its manual punching system avoids heat, dust and deformation while ensuring a professional finish.
Are you looking for similar equipment?
Technical specifications

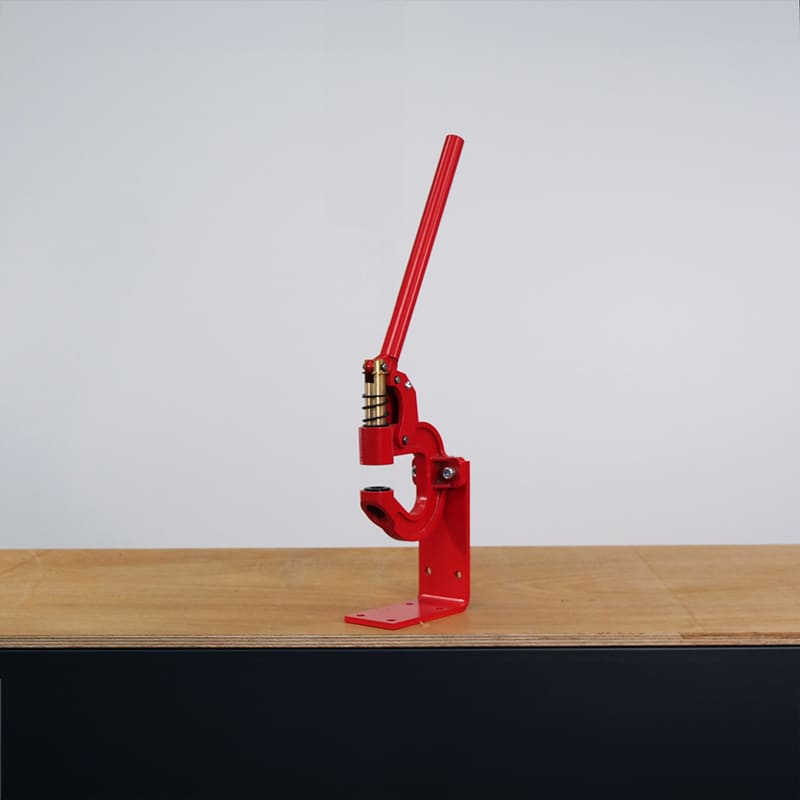

The punching machine, specially designed for punching junction boxes, is precisely mounted on a robust workbench, ensuring optimum stability and efficiency during use. This versatile tool has three die sizes: D16, D20 and D25, making it adaptable to different punching requirements. Depending on your project, we supply the corresponding dies, ensuring a clean, precise result. Purchasing this punching machine provides a complete solution that combines the tool with its essential accessories for professional work.
Range comparison – EasyPunch
| Reference | Compatible hole sizes | Mounting method | Overall dimensions L × W × H | Weight |
|---|---|---|---|---|
| EasyPunch | 16, 20 and 25 mm | Plate to be screwed onto a workbench | 170 × 80 × 620 mm | 3.5 kg |
Because it operates without connection to an energy source, this tool stands out for its quick and intuitive setup, making it ideal for on-site work. The lever system, combined with the punch-and-die set, guarantees precise, fast and clean holes without burrs. Its simple, robust design makes it a reliable, durable and economical solution that is perfectly suited to regular use.
Punch-and-die kits
| ICTA tube Ø to insert | Actual hole Ø |
|---|---|
| 16 mm | 15 mm |
| 20 mm | 18.75 mm |
| 25 mm | 23.5 mm |
Key benefits
01. Immediate setup
Easy to use, easy to transport and requires no power.
02. Clean, fast punching
Lever power for a burr-free result
03. Economical and durable
Robust design, long service life and controlled cost.
