Pneumatic punching machine for plastic boxes
PunchR

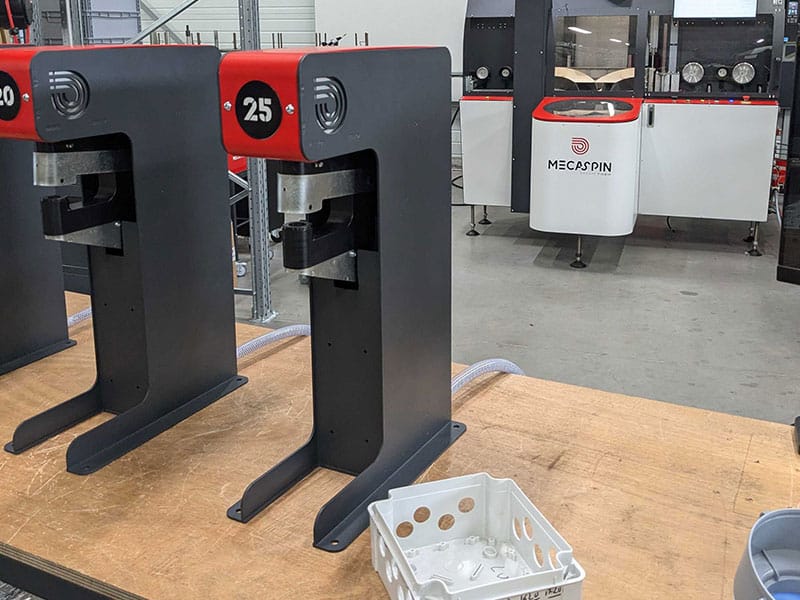

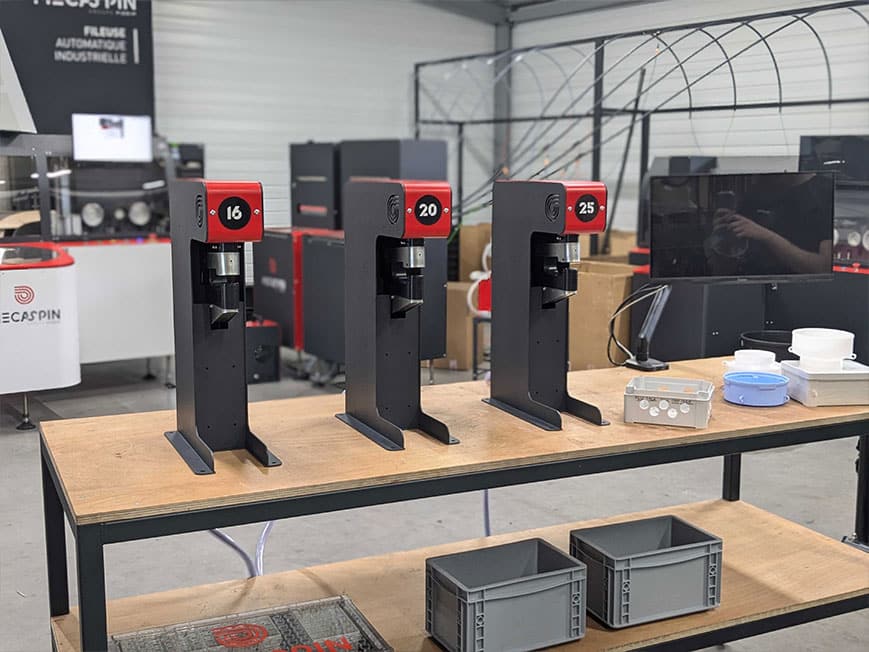

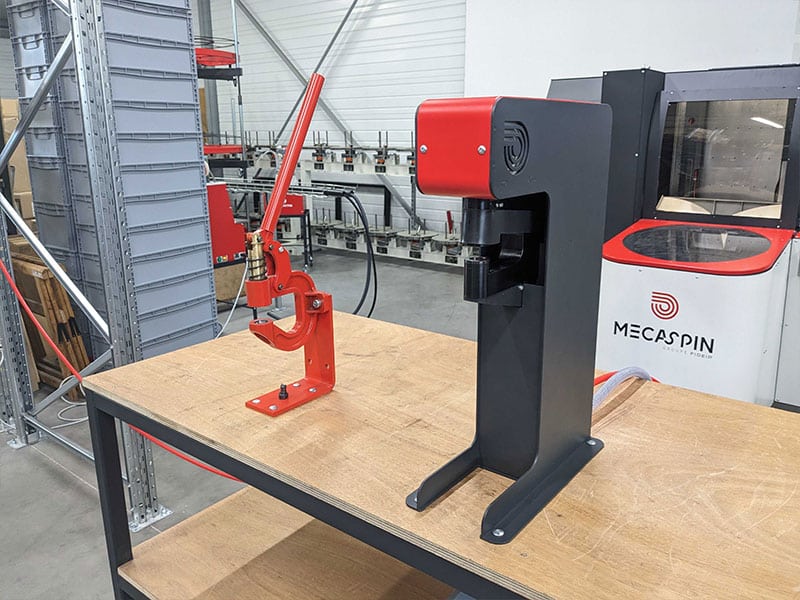

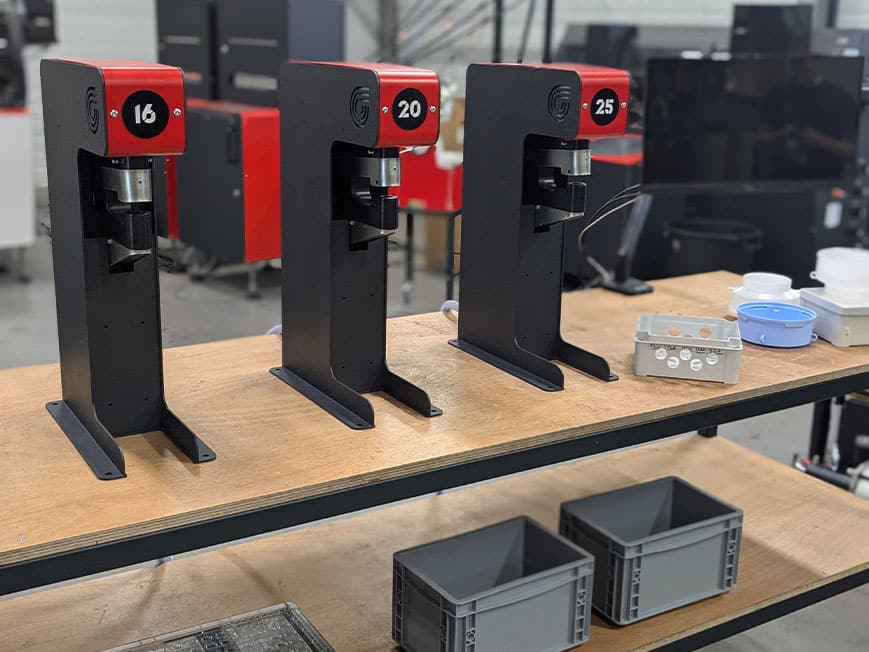

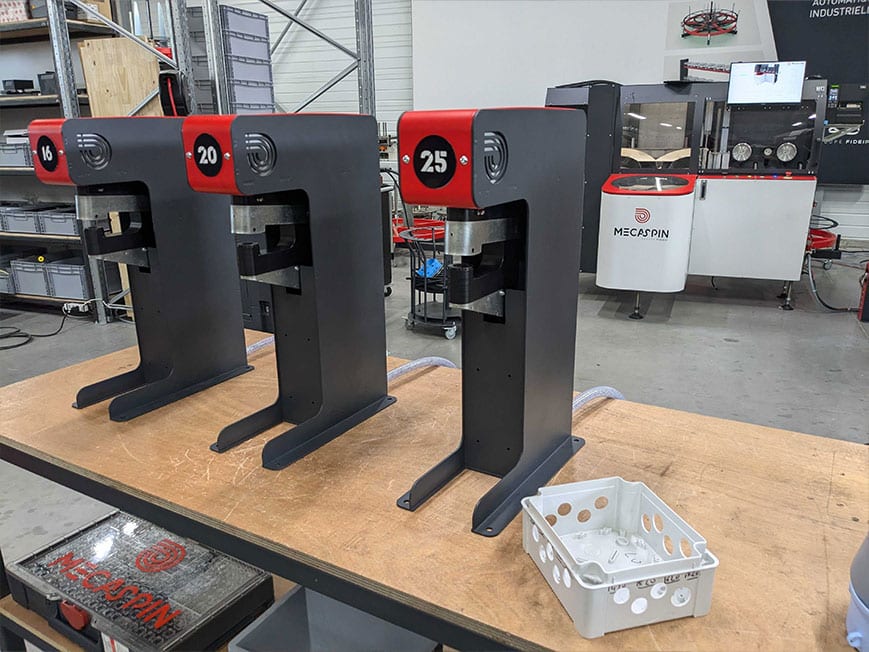

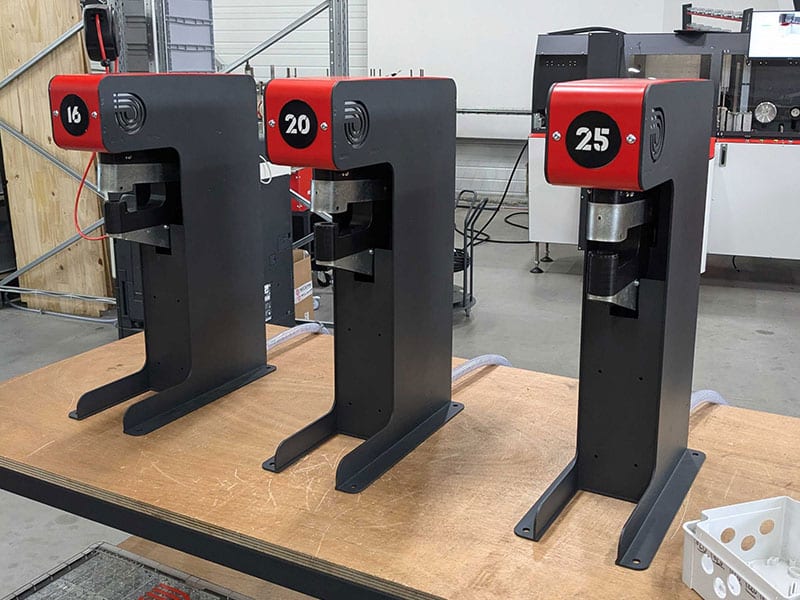

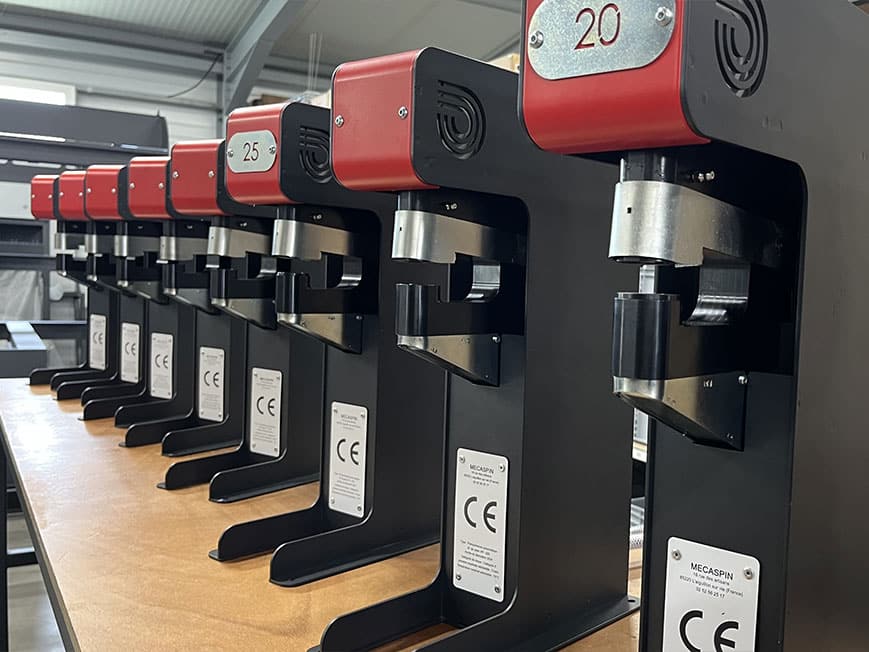

The Mecaspin pneumatic punching machine is an automatic punching machine for punching plastic boxes. The punch diameters suitable for the machine are 16, 20 and 25 mm.
The machine is controlled by a pneumatic pedal, and its safety functions are provided by a pneumatic valve system compliant with ISO 13857:2008.
Are you looking for similar equipment?
Technical specifications

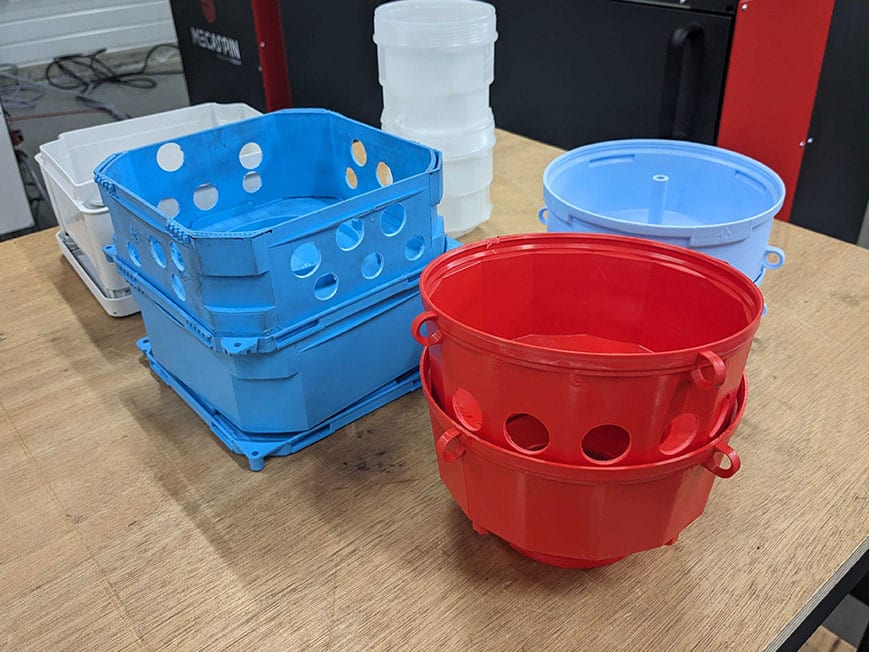

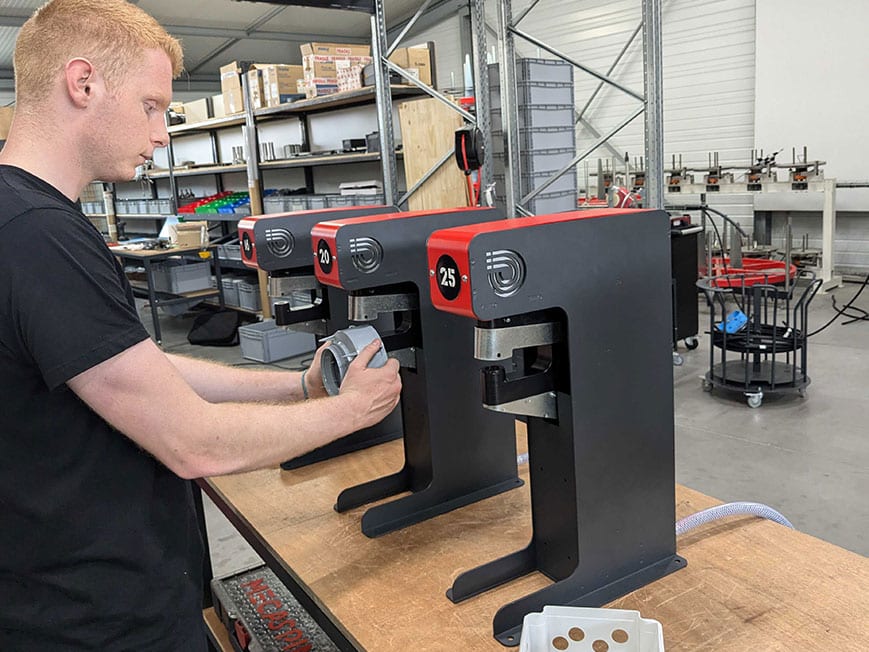

Our pedal-operated pneumatic punching machine is the ideal tool for carrying out repetitive punching operations with simplicity, power and precision. Designed for punching junction boxes and wiring-harness heads, it provides smooth operation while leaving both hands free to handle the boxes.

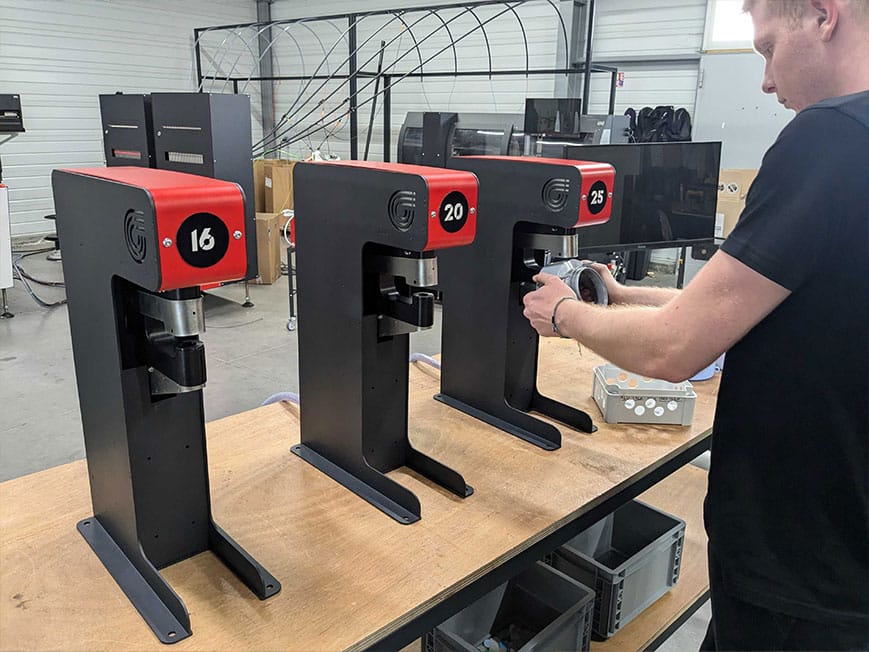

Equipped with a foot-control system, it guarantees an immediate productivity gain and optimum ergonomics. Its integrated safety device prevents accidental contact with the active area, avoiding the risk of pinching or crushing fingers.
Range comparison – Pneumatic punching machine
| Compatible boxes | Maximum rate | Compatible hole sizes | Mounting method | Overall dimensions L × W × H | Weight | Accessories included |
|---|---|---|---|---|---|---|
| Contact us | 40 cycles/min | 16, 20 and 25 mm | Plate to be screwed onto a workbench | 345 × 106 × 540 mm | 20 kg | Control pedal with connection – quick-connect kit with air hose – slug collection drawer |
Punch-and-die kits
| Description | ICTA tube Ø to insert | Actual hole Ø |
|---|---|---|
| Ø 16 mm Small kit | 16 mm | 15.00 mm |
| Ø 16 mm Medium kit | 16 mm | 15.25 mm |
| Ø 16 mm Small kit | 16 mm | 15.5 mm |
| Ø 20 mm Small kit | 20 mm | 19.00 mm |
| Ø 20 mm Medium kit | 20 mm | 19.25 mm |
| Ø 20 mm Large kit | 20 mm | 19.50 mm |
| Ø 25 mm Small kit | 25 mm | 24.00 mm |
| Ø 25 mm Medium kit | 25 mm | 24.25 mm |
| Ø 25 mm Large kit | 25 mm | 24.50 mm |
Key benefits
01. Safety
A safety plate at the inlet locks the punching system if it encounters an obstacle, protecting your fingers from the mechanism
02. Ergonomics and speed
The operating pedal frees both of the operator's hands, giving them greater dexterity and enabling higher rates than manual operation
03. Easy maintenance
Maintenance of the pneumatic punching machine is limited to cleaning and lubrication
Are you interested in our equipment?
Contact us!
