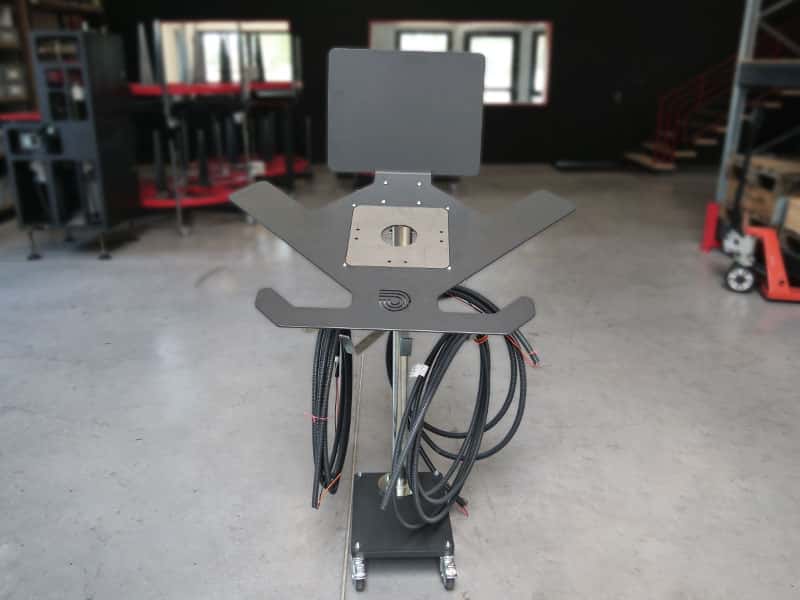

Simple wiring station for electrical wiring harnesses

ErgoCab

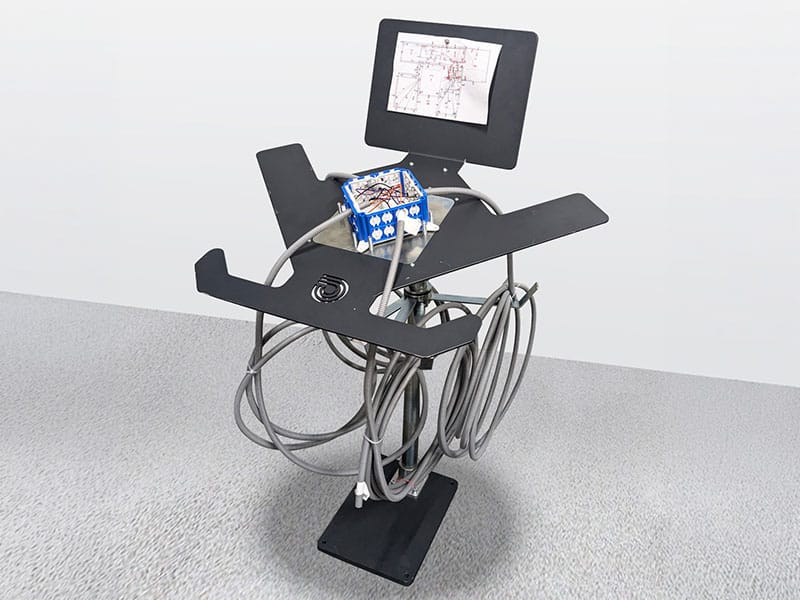

The wiring-harness assembly station facilitates the fast and precise assembly of electrical installations. It is equipped with a wiring-plan holder, allowing the diagram to be followed directly and reducing errors. The sheaths can be brought to and organised on the station for convenient access. Junction boxes are positioned and wired directly on the support. This station is ideal for wiring-harness manufacturers and electricians, optimising productivity and organisation. Several versions are available to suit different requirements and assembly methods.

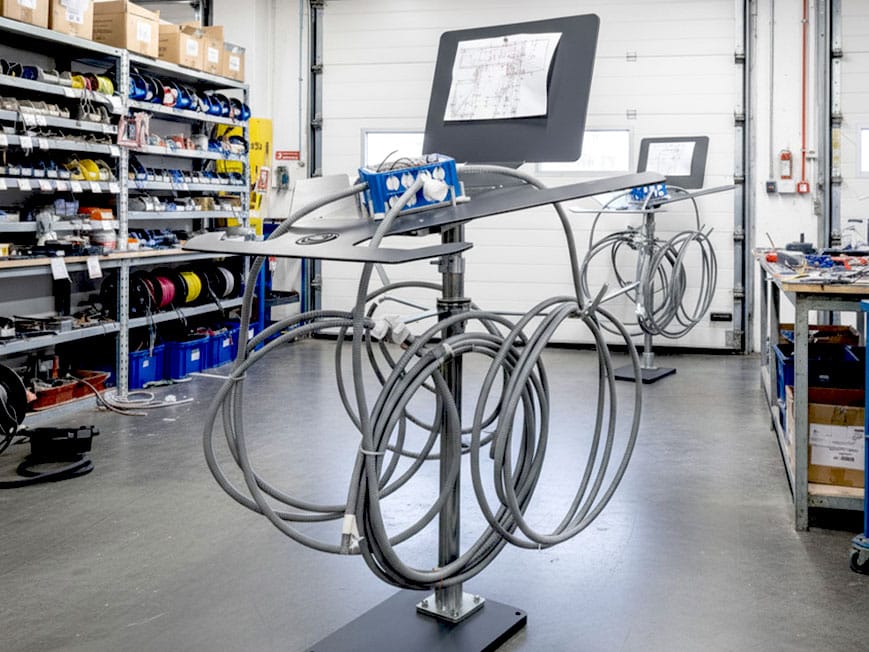

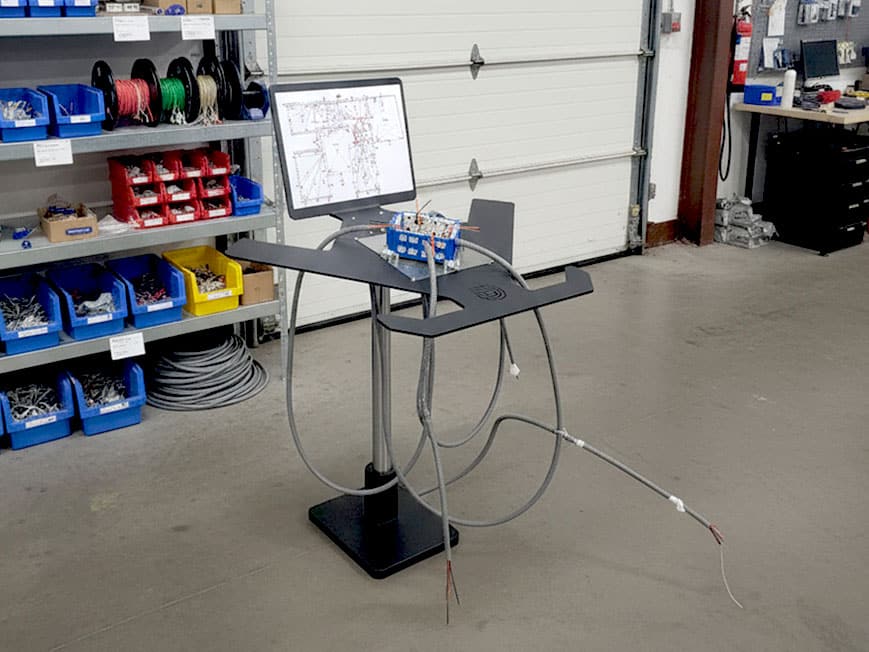

ErgoCab wiring station in octopus wiring workshop | Mecaspin

Are you looking for similar equipment?

Contact us

Technical specifications

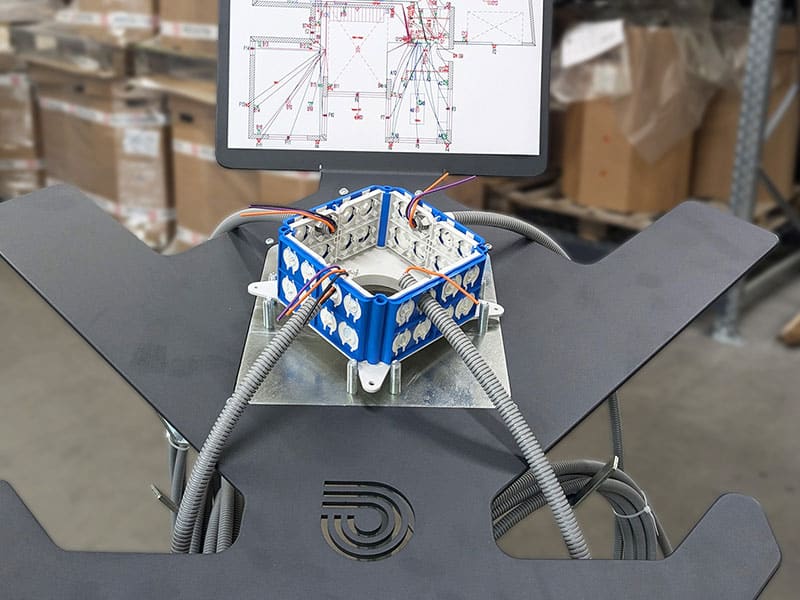

The Mecaspin simple wiring station is designed to facilitate the assembly of electrical wiring harnesses. It allows the junction box to be positioned and wired directly at the station by following the plan placed in front of the operator.

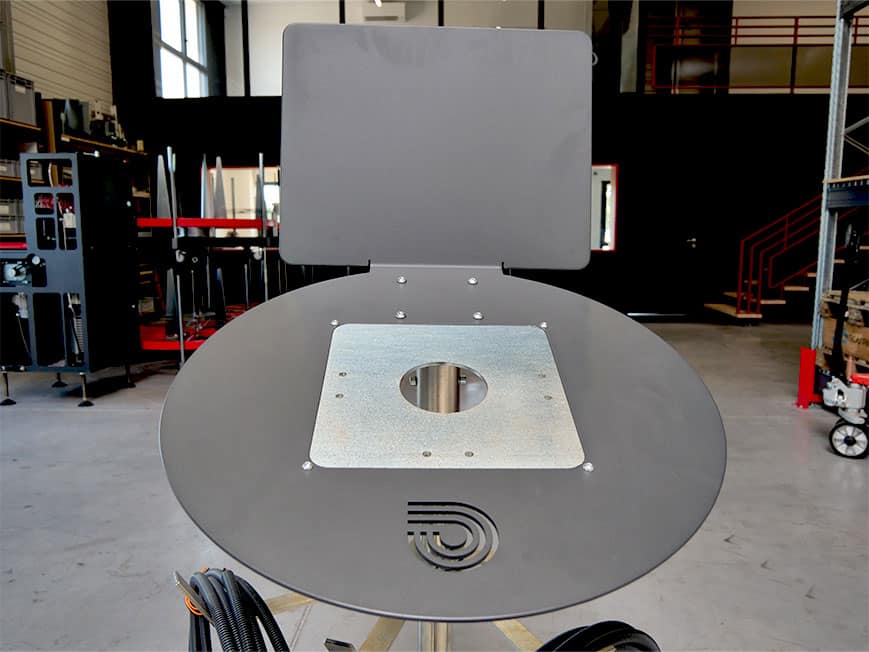

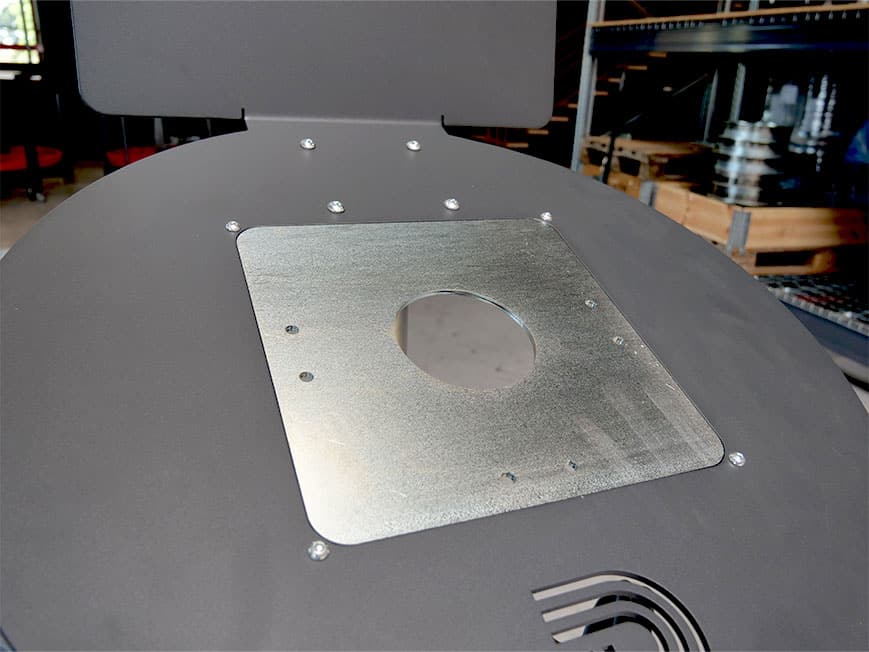

The workstation is equipped with removable box supports compatible with the different types of boxes available on the market. The pre-wired sheaths are placed on arms beneath the worktop, while retainers keep them separated and organised during assembly.

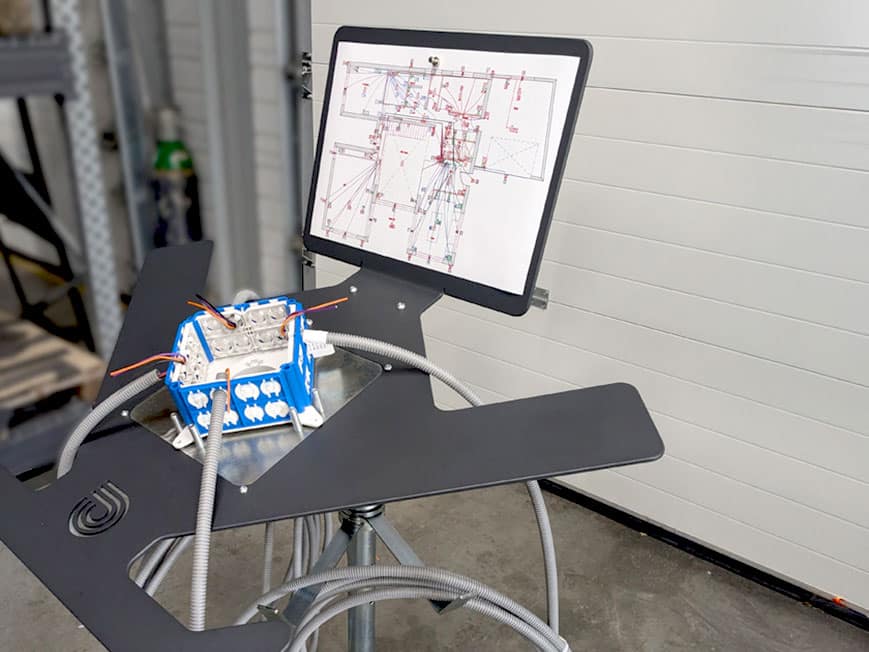

The wiring plan is attached in front of the operator using a magnet. The station measures 937 × 660 × 900 mm and supports a maximum load of 100 kg. Several versions are available to meet different assembly methods.

Technical information

Reference	ErgoCab
Equipment type	Simple wiring station for assembling electrical wiring harnesses
Main function	Facilitate the assembly and wiring of junction boxes from the wiring plan
Dimensions (L × W × H)	937 × 660 × 900 mm
Compatible box types	All box types
Maximum load	100 kg

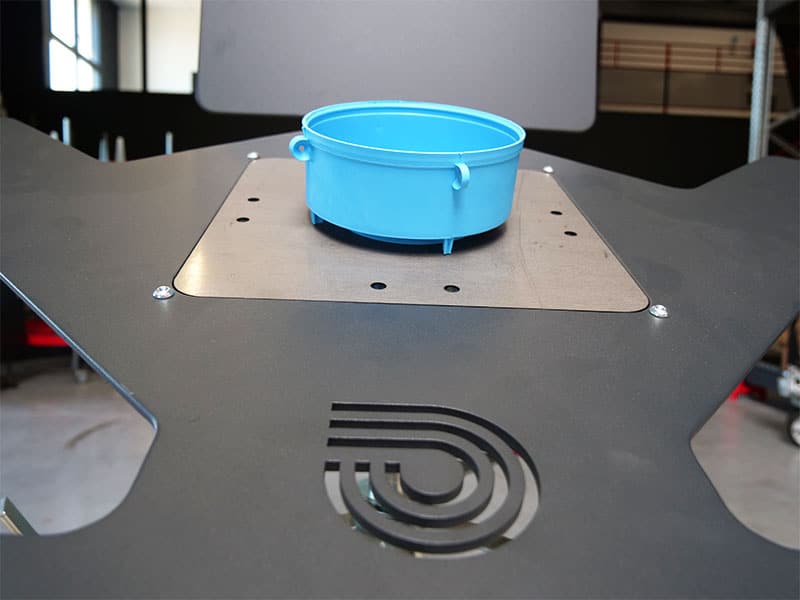

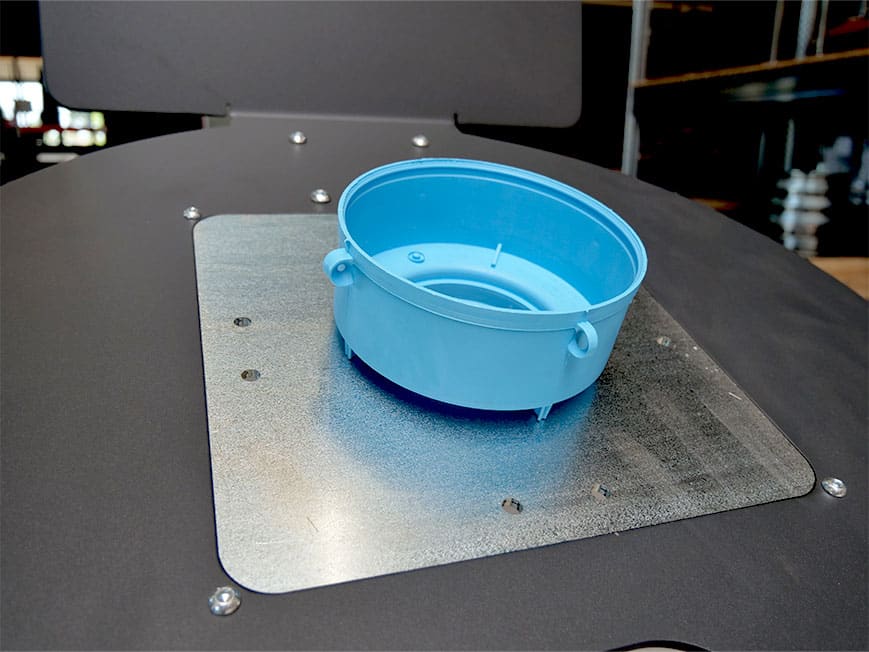

Box supports	Removable supports
Sheath organisation	Dedicated arms beneath the worktop and sheath retainers

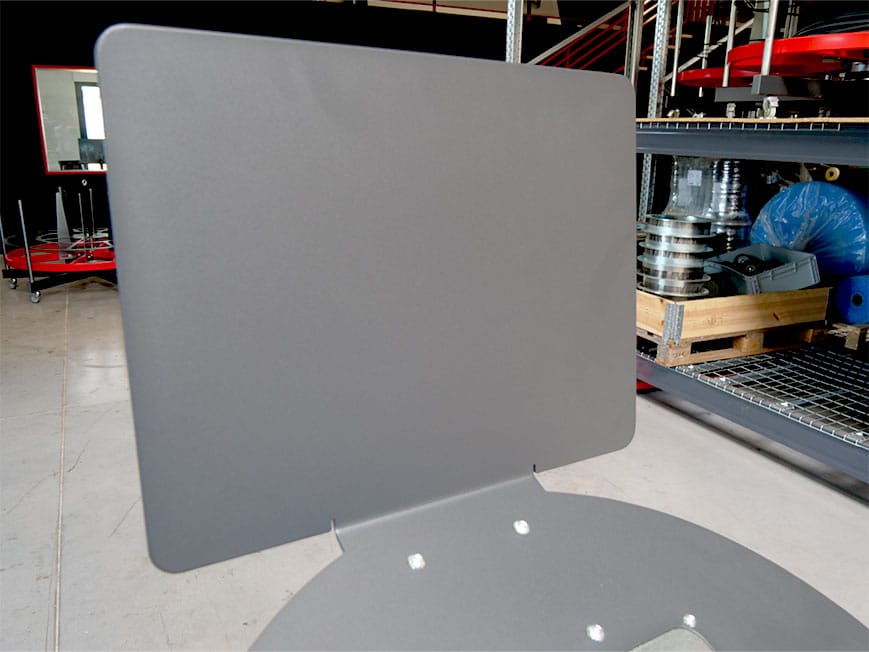

Wiring-plan support	Plan held by a magnet in front of the operator
Wiring method	Wiring through the box face
Applications	Manufacture and assembly of electrical wiring harnesses
Intended users	Wiring-harness manufacturers and electricians
Available versions	Several versions to suit different requirements and assembly methods

Key benefits

01. Clear sheath organisation

The dedicated arms and retainers keep the pre-wired sheaths separate during wiring. The operator can identify each item more easily and reduces the risk of mixing them up.

02. Compatibility with all box types

The removable supports allow the station to be adapted to the different junction-box models used in the workshop.

03. More ergonomic wiring

The plan is positioned directly in front of the operator and the sheaths remain accessible beneath the worktop. This organisation makes the diagram easier to follow and reduces handling during assembly.
