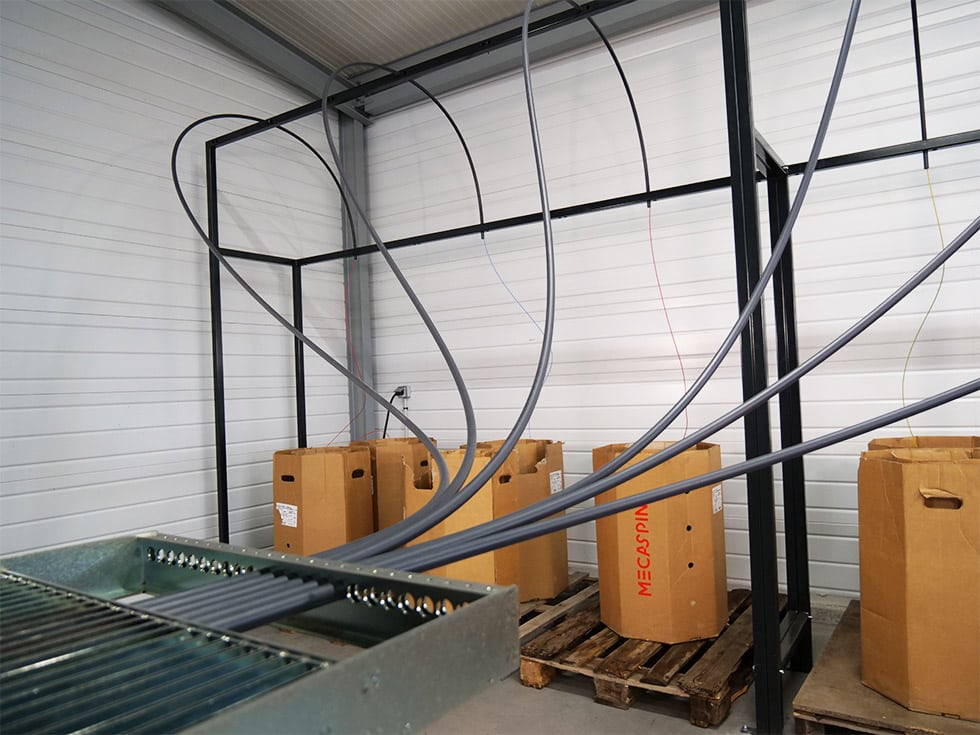

The Box Up gantry can unwind several references of wire drums at high speed. Grouped beneath one structure, it makes every reference available to a technician, particularly when a large number of references is used.

Are you looking for similar equipment?

Contact us

Technical specifications

The Box Up gantry is made from 3 mm-thick, 40 mm-wide welded steel tubing. It is 2.20 m high and painted anthracite grey. Box Up is designed to be anchored directly to the floor and is delivered as a kit. It can be assembled by one person using the assembly instructions and a screw-fastening system.

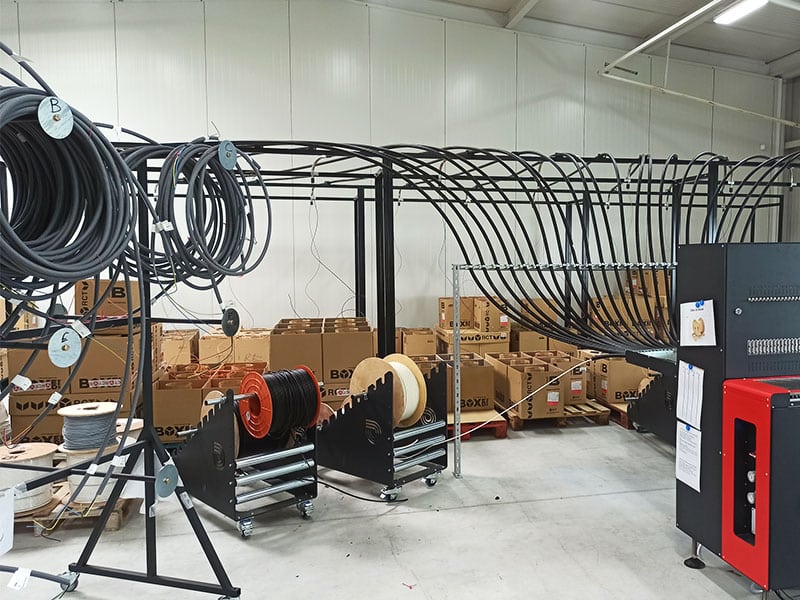

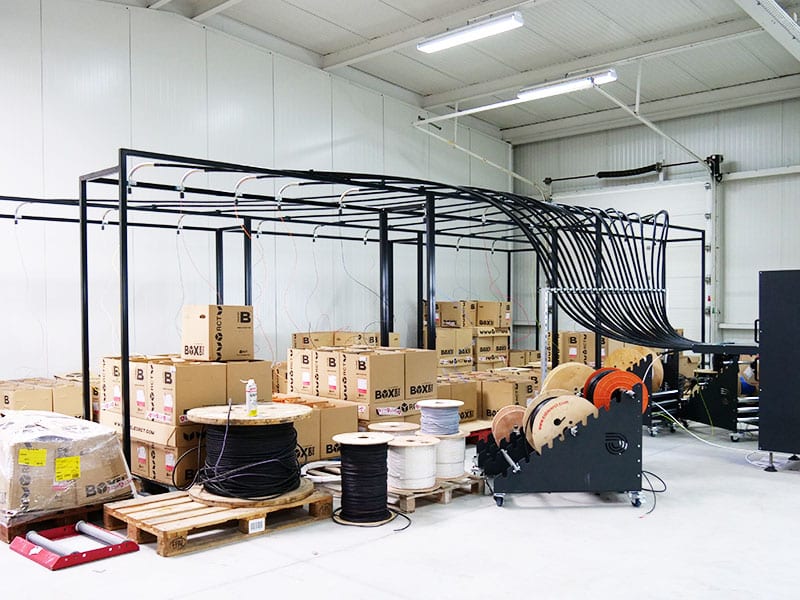

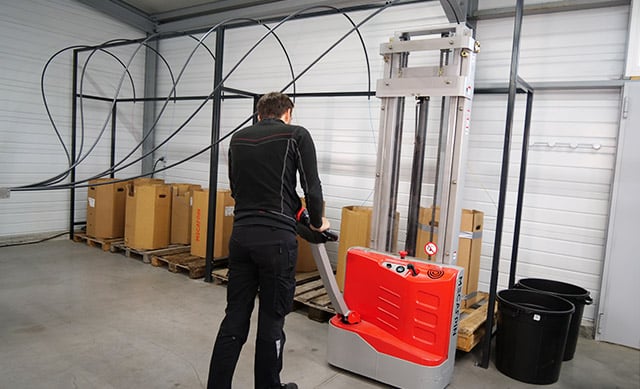

The structure incorporates retaining collars, steel elbows and supports for guide tubes. The tubes are held by the gantry and then grouped towards a central wire guide that presents the different wires to the technician. Each gantry is sized to hold up to 6 drums or 3 pallets.

Technical information

Specifications	Box Up
Structure	Welded steel
Tube width	40 mm
Tube thickness	3 mm
Fastening	Anchored to the floor with studs
Colour	Anthracite grey
Height	2.20 m
Capacity per gantry	6 drums or 3 pallets
Capacity per installation	Up to 12 gantries, or 72 drums
Guidance	Steel elbow
Assembly	Delivered as a kit
Wire grouping	Centralised wire-guide stand

Key benefits

01. Smooth unwinding

Jerk-free unwinding at high speed. Prevents wire loops and knots from forming during unwinding.

02. Modular installation

Gantry configuration can be adapted to the number of drums to be unwound. The gantries can be configured to unwind individual drums or pallets of connected drums.

03. Drum storage

The drums are stored directly where they are unwound. This optimises the available workshop space.

Options

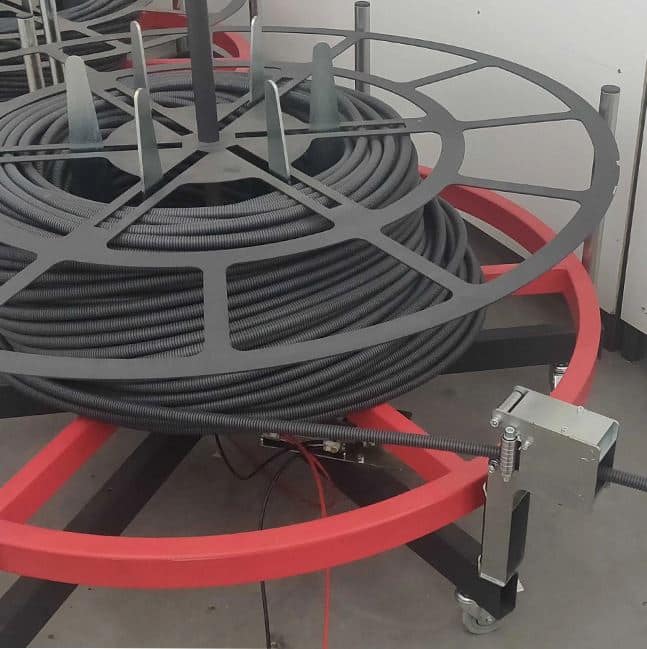

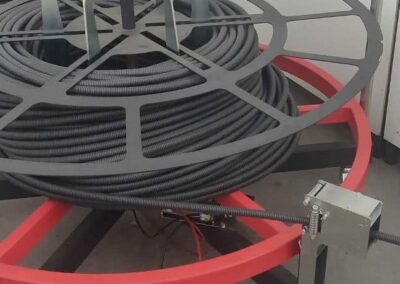

sheath-end-sensor-650650

sheath end sensor

wire-guides-2023

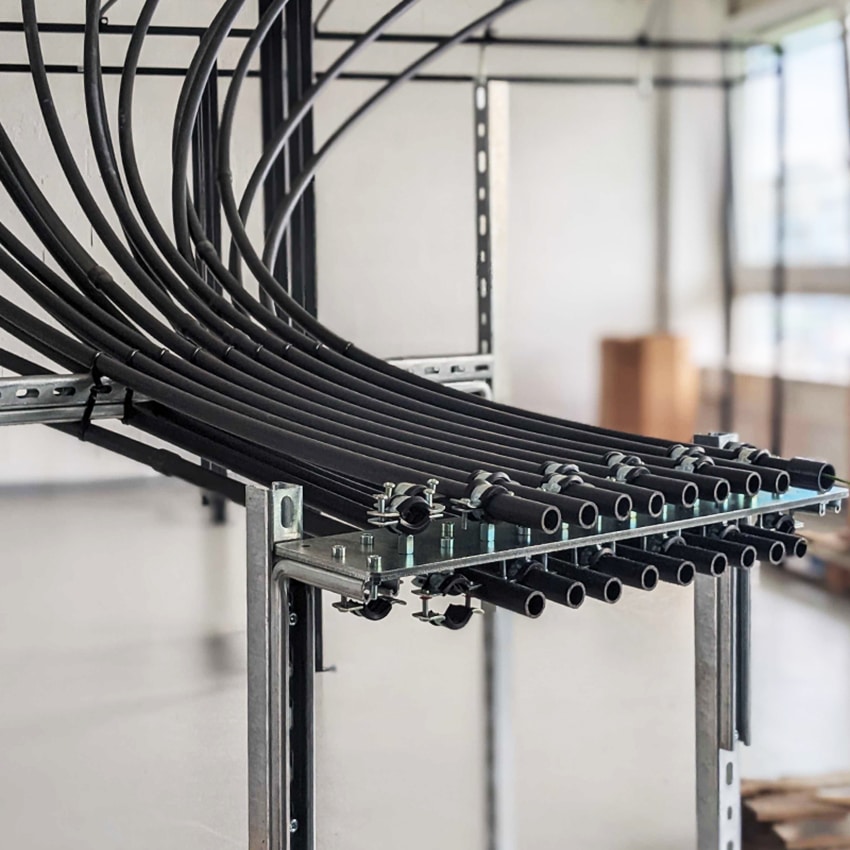

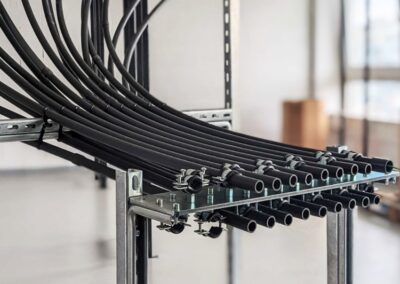

The wire guide separates electrical wires and brings them to the correct height before they enter the pre-wiring system. It is positioned at the wire inlet of the pre-wiring machine. Its role is to organise the different wires, reduce handling and present them at a convenient height for the operator. Located between the electrical wire boxes and the pre-wiring machine, it consists of a thick plastic guide plate and a steel base. It ensures smooth wire feeding and helps prevent the electrical wires from becoming tangled.
